1690498 - Simplicity 46" Dozer Blade Hitch 46" Dozer Blade Hitch Parts Diagram

46" Dozer Blade Hitch

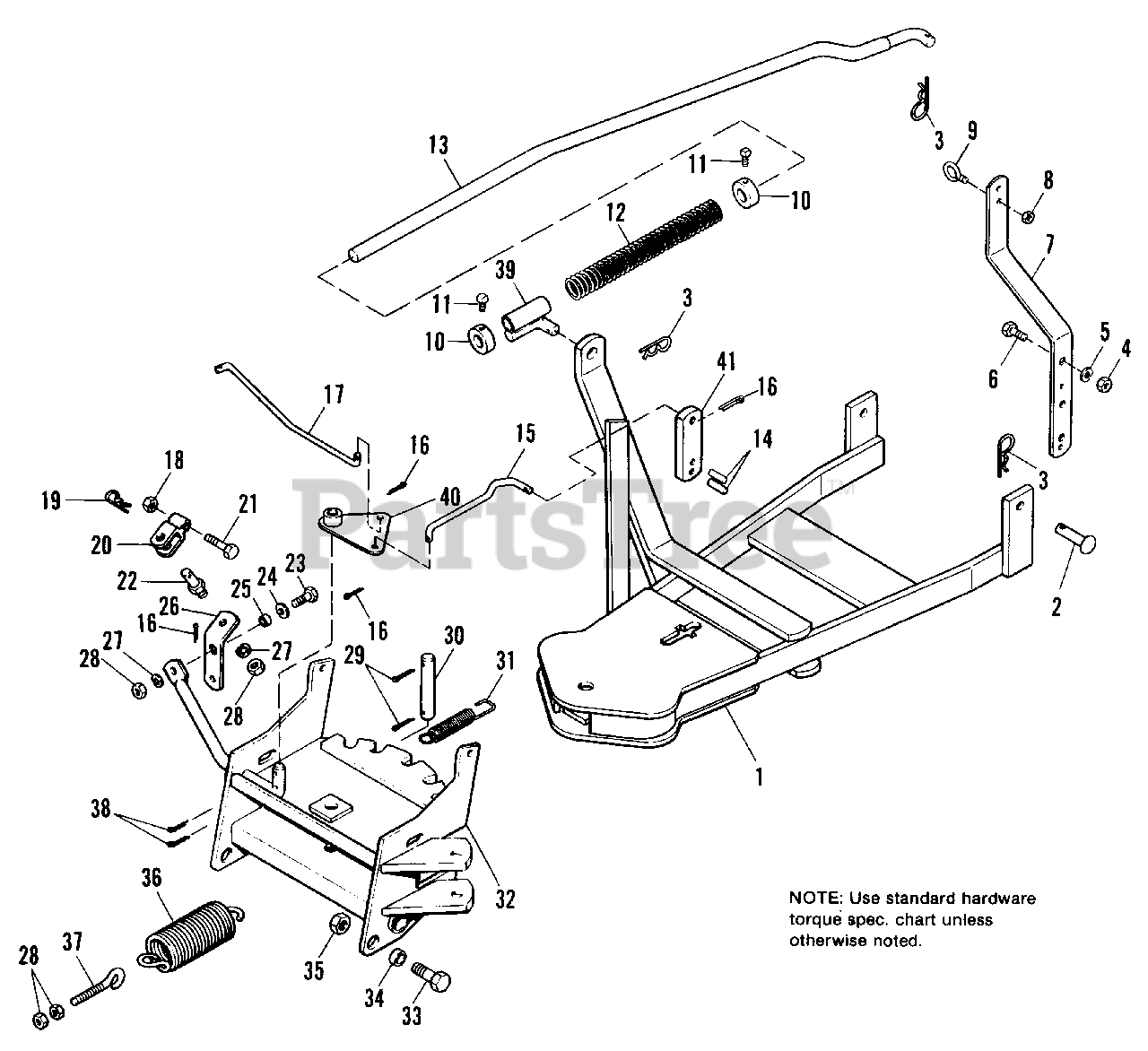

46" Dozer Blade Hitch Parts Diagram

  • Title

1

Simplicity 1667451

BAR ASSY., Push

$

$

Not available

2

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

3

Simplicity 2106788

CLIP, Spring

$

$

Not available

4

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

6

Simplicity 1921966SM

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1666288

BRACKET, Handle Support

$

$

Not available

8

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 2172162SM

EYEBOLT

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

11

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 13

0

12

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

13

Simplicity 1666285SM

ROD, Litt

$104.99

$

Usually ships in 2-12 days

0

14

Simplicity 2821469SM

PIN, Spring, 7/32 x 1

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 2107136SM

LATCH, Rod

$53.99

$

Usually ships in 2-12 days

0

16

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 2107118SM

ROD, Pivot

$9.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

19

Simplicity 2106787

CLIP, Spring

$

$

Not available

20

Simplicity 2106131SM

FORK ASSY.

$75.99

$

In Stock, only 1 left!

0

21

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

22

Simplicity 2107120SM

STUD, Pivot

$38.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

24

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 18

0

25

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

26

Simplicity 107119

ARM, Pivot

$

$

Not available

27

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1919314SM

COTTER PIN, 3/16 x 1-1/4

$3.49

$

In Stock, Qty 7

0

30

Simplicity 2174066SM

PIN, Pivot

$44.99

$

Usually ships in 2-12 days

0

31

Simplicity 2107135SM

SPRING

$32.99

$

Usually ships in 2-12 days

0

32

Simplicity 1700665SM

FRAME ASSY., Pivot

$

$

Not available

33

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

34

Simplicity 2105051

SPACER

$

$

Not available

35

Simplicity 1922134SM

LOCKNUT, Hex, 1/2-12
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

36

Simplicity 2101126SM

SPRING, Tension

$46.99

$

In Stock, only 1 left!

0

37

Simplicity 2107121SM

EYEBOLT

$14.99

$

Usually ships in 2-12 days

0

38

Simplicity 1918452SM

COTTER PIN, 1/8 x 1
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

39

Simplicity 2171679SM

GUIDE ASSY., Rod

$76.99

$

Usually ships in 2-12 days

0

40

Simplicity 2107116SM

PLATE ASSY., Pivot

$

$

Not available

41

Simplicity 2174073SM

LATCH

$42.99

$

Usually ships in 2-12 days

0
