1690500 - Simplicity Dual Lift Lever Dual Lift Parts Diagram

Dual Lift Lever

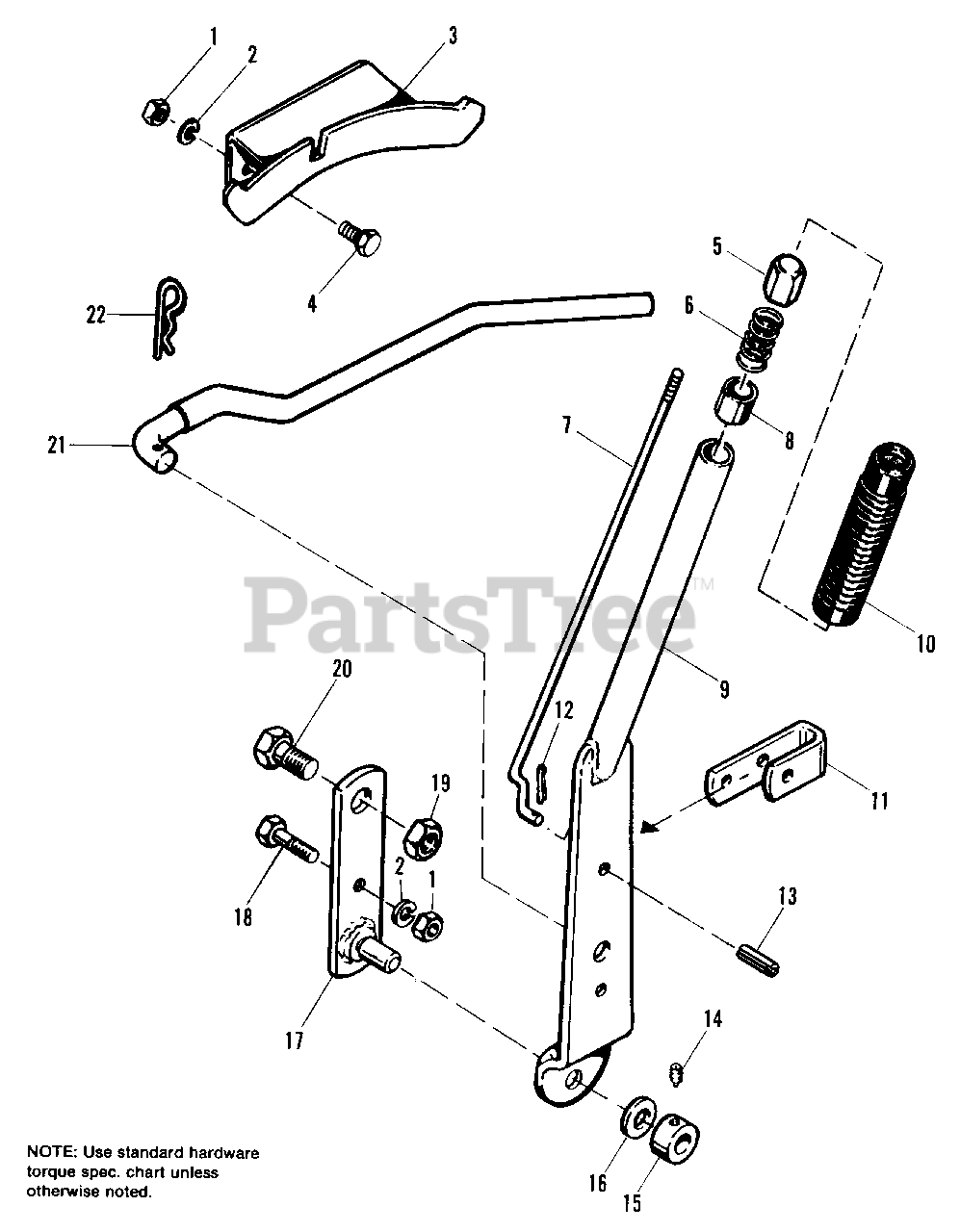

Dual Lift Parts Diagram

  • Title

1

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

3

Simplicity 174718

QUADRANT ASSY. (Late model tractor)

$

$

Not available

4

Simplicity 1921965SM

CAPSCREW, Hex Hd., 3/8-18 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 2154227SM

BUTTON, Thumb

$

$

Not available

6

Simplicity 2152006SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 157167

ROD, Latch, R.H.

$

$

Not available

8

Simplicity 154226

SPACER

$

$

Not available

9

Simplicity 157160

LEVER ASSY., Lift, R.H.

$

$

Not available

10

Simplicity 2156209

GRIP, Handle
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

11

Simplicity 157166

LATCH, Lift Lever

$

$

Not available

12

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 2818113

PIN, Spring, 3/8 x 1

$

$

Not available

14

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

15

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

16

Simplicity 1918431SM

WASHER, Plain, 1/2
(Superseded to 704011)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 174711

LEVER ASSY.

$

$

Not available

18

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 1924650SM

LOCKNUT, Hex, Jam, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1923114SM

CAPSCREW, Hex Hd., 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

21

Simplicity 1666286

ROD, Lift

$

$

Not available

22

Simplicity 1918196SM

PIN, Ouick
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 107046

ROD, Lift

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$

$

Not available

22

Simplicity 157168

SPACER

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$

$

Not available

22

Simplicity 157169

WASHER, Plain

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$

$

Not available

22

Simplicity 157170

LEVER, Lift

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$

$

Not available

22

Simplicity 1921212SM

CAPSCREW, Hex Hd., 7/16-14 x 1/2

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1919326SM

WASHER, Plain, 4/16

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$4.49

$

In Stock, Qty 18

0

22

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$4.49

$

In Stock, only 2 left!

0

22

Simplicity 1921966SM

CAPSCREW, Hex Hd., 3/8-16 x 7/8

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$3.99

$

In Stock, Qty 19

0

22

Simplicity 1928701SM

NUT, Retainer, 5/16-18

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$5.49

$

In Stock, Qty 8

0

22

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$4.49

$

In Stock, Qty 7

0

22

Simplicity 157163

QUADRANT ASSY., Early Model Tractors

Note: These parts are included in Mfg. No. 1690500 but are used only on early model tractors (1967 and earlier).

$

$

Not available
