1690502 - Simplicity 48" Mower Deck 48" Rotary Mower - Housing & Arbor Group Parts Diagram

48" Mower Deck

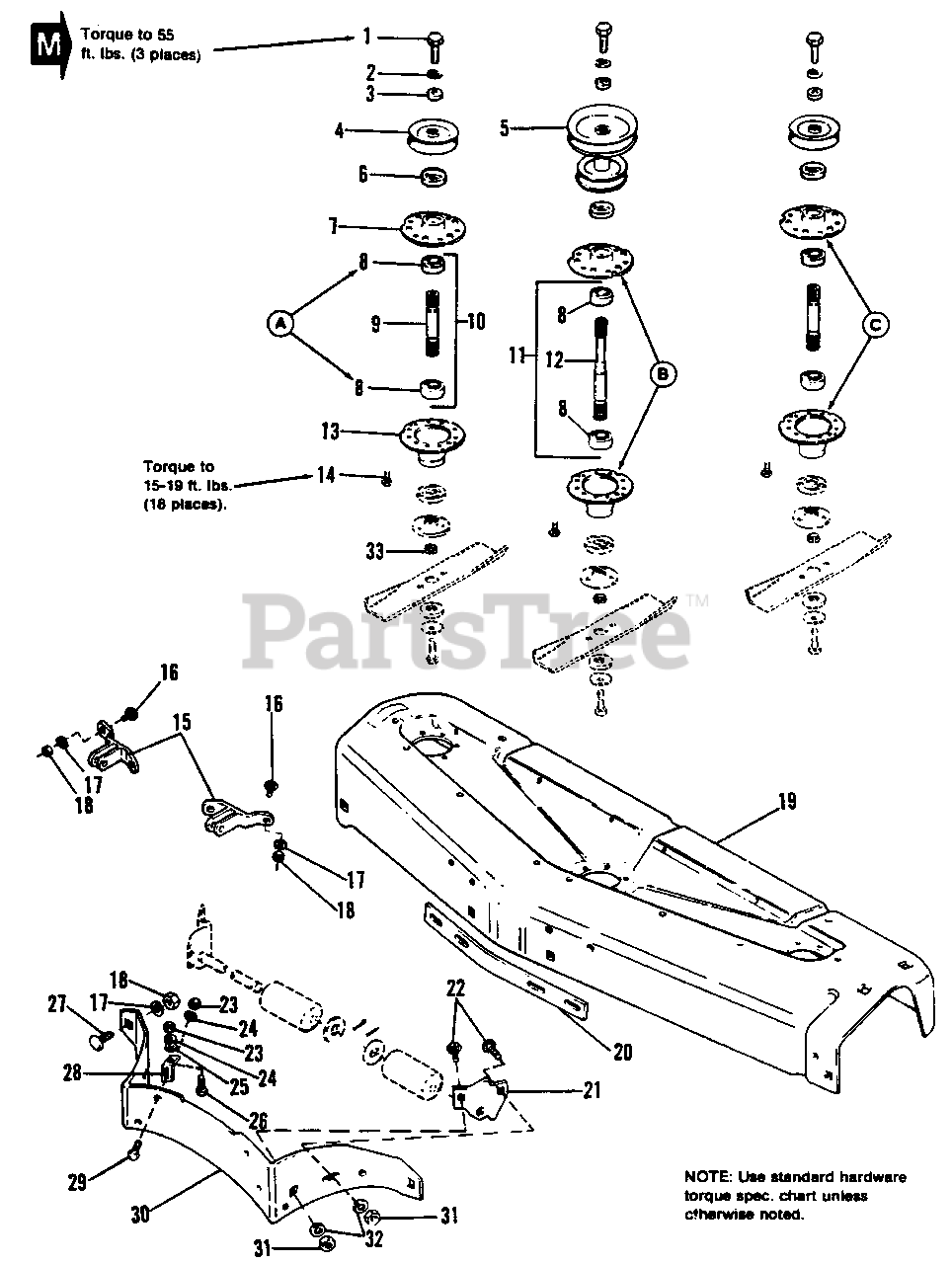

48" Rotary Mower - Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1933263SM

WASHER, Plain, 29/64
(Superseded to 703990)

$6.99

$

In Stock, only 3 left!

0

4

Simplicity 1655867ASM

PULLEY ASSY., Deck Drive

$79.99

$

In Stock, only 1 left!

0

5

Simplicity 1656928SM

PULLEY ASSY.
(Superseded to 1656928ASM)

$

$

Not available

6

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

7

Simplicity 1655729ASM

HOUSING, Top

$14.99

$

In Stock, Qty 20+

0

8

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1685245SM

SHAFT, Arbor (Includes Ref. No. 33)

$74.99

$

In Stock, only 3 left!

0

10

Simplicity 1685251SM

SHAFT & BEARING ASSY., Side (Includes Ref. No. 8, 9 & 33)

$99.99

$

In Stock, Qty 20+

0

11

Simplicity 1685252SM

SHAFT & BEARING ASSY., Center (Includes Ref. Nos. 8, 12 & 33)

$103.99

$

Usually ships in 2-12 days

0

12

Simplicity 1685246SM

SHAFT, Arbor, Center (Includes Ref. No. 33)

$

$

Not available

13

Simplicity 1703273ASM

HOUSING, Bottom

$38.99

$

In Stock, Qty 6

0

14

Simplicity 1664847SM

SCREW, Hex Wash. Hd., Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 2108219SM

BRACKET ASSY., Front
(Superseded to 2108219ASM)

$62.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 14

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

18

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

19

Simplicity 1685282SM

HOUSING, 48"

$1025.99

$

Usually ships in 2-12 days

0

20

Simplicity 2108366SM

BAR, Reinforcement
(Superseded to 2108366ASM)

$25.99

$

Usually ships in 2-12 days

0

21

Simplicity 2108224ASM

BRACKET, Roller, L.H.

$59.99

$

In Stock, only 3 left!

0

22

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1916622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

24

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

26

Simplicity 1925592SM

SCREW, Thd. Forming, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

29

Simplicity 1921959SM

CAPSCREW, Hex Hd., 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1674774ASM

BAFFLE

$

$

Not available

31

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1672132SM

COLLAR, Mower Arbor

$12.99

$

In Stock, Qty 12

0
