1690503 - Simplicity PTO Driven Vacuum Collector P.T.O. Driven Vacuum Collector Parts Diagram

PTO Driven Vacuum Collector

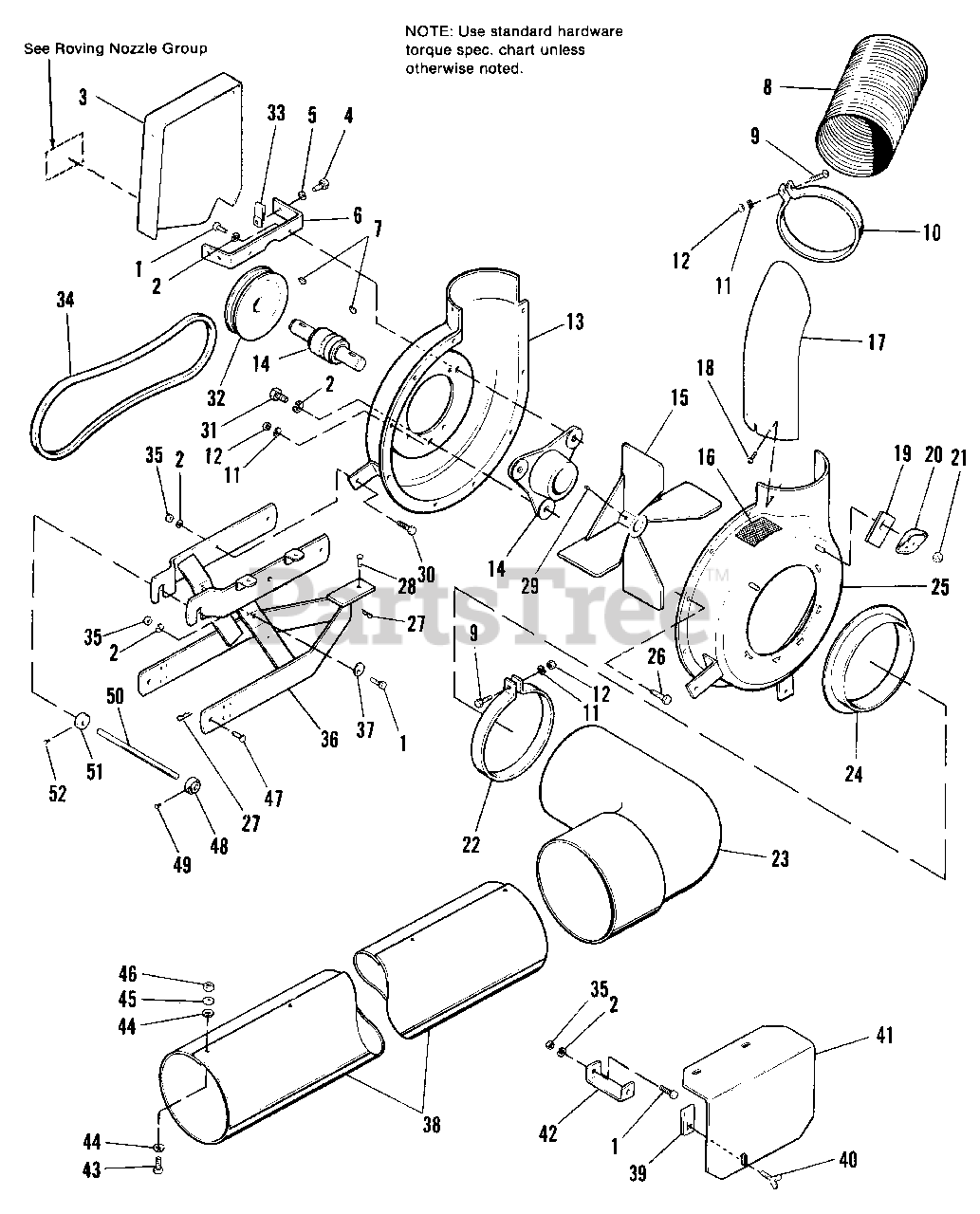

P.T.O. Driven Vacuum Collector Parts Diagram

  • Title

1

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

3

Simplicity 2164206

GUARD, Belt

$

$

Not available

4

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 164205

BRACKET, Belt Guard

$

$

Not available

7

Simplicity 2830670SM

KEY, Hi-Pro

$

$

Not available

8

Simplicity 1669967SM

HOSE, Exhaust

$256.99

$

Usually ships in 2-12 days

0

9

Simplicity 1928866

SCREW, Rd. Hd., 1/4-20 x 3

$

$

Not available

10

Simplicity 2123067

CLAMP, Hose

$

$

Not available

11

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1916622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

13

Simplicity 2123012

HOUSING HALF ASSY., Blower

$

$

Not available

14

Simplicity 2123087SM

BEARING ASSY., Flange & Shaft

$

$

Not available

15

Simplicity 2123015ASM

FAN ASSY.

$510.99

$

Usually ships in 2-12 days

0

16

Simplicity 177084

DECAL, Caution

$

$

Not available

17

Simplicity 123107

DEFLECTOR

$

$

Not available

18

Simplicity 919804

SCREW, Round Hd., Thread Forming, #10 x 3/8

$

$

Not available

19

Simplicity 2177271SM

CLAMP, Bar

$

$

Not available

20

Simplicity 2108848

NUT, Wing

$

$

Not available

21

Simplicity 1928698SM

LOCKNUT, Hex, Jam, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 123065

CLAMP, Hose

$

$

Not available

23

Simplicity 2177334SM

ELBOW ASSY. (Incl. Ref. No. 24)

$

$

Not available

24

Simplicity 2123111SM

FLANGE, Hose

$

$

Not available

25

Simplicity 2177268

HOUSING ASSY.

$

$

Not available

26

Simplicity 1921958SM

CAPSCREW, Hex Hd., 1/4-20 x 1/2
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

27

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 6

0

28

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 4 left!

0

29

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

30

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

31

Simplicity 1921965SM

CAPSCREW, Hex Hd., 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 2106663SM

PULLEY

$

$

Not available

33

Simplicity 2828701

NUT, Retainer, 5/16-18

$

$

Not available

34

Simplicity 1665706SM

V-BELT

$31.99

$

Usually ships in 2-12 days

0

35

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 8

0

36

Simplicity 1668032

SUPPORT ASSY., Blower Housing

$

$

Not available

37

Simplicity 1678552

WASHER, Eccentric

$

$

Not available

38

Simplicity 1666525SM

TUBE, Intake

$

$

Not available

39

Simplicity 1926018SM

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 12

0

40

Simplicity 1935023SM

SCREW, Wing, 1/4-20 x 5/8

$12.99

$

Usually ships in 2-12 days

0

41

Simplicity 1669153

COVER

$

$

Not available

42

Simplicity 1669154

SUPPORT

$

$

Not available

43

Simplicity 1930531SM

SCREW, Truss Hd., #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

44

Simplicity 1916955SM

WASHER, Plain, 3/16

$3.49

$

Usually ships in 2-12 days

0

45

Simplicity 1909055SM

LOCKWASHER, Int., #10

$3.49

$

Usually ships in 2-12 days

0

46

Simplicity 1917415SM

NUT, Hex, Mach., #10-32

$2.99

$

Usually ships in 2-12 days

0

47

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0

48

Simplicity 2157695SM

COLLAR, Set

$126.99

$

Usually ships in 2-12 days

0

49

Simplicity 1930540SM

SETSCREW, 5/16-18 x 5/8

$4.99

$

In Stock, Qty 7

0

50

Simplicity 2154216SM

SHAFT, Lift

$

$

Not available

51

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$9.49

$

Usually ships in 2-12 days

0

52

Simplicity 1928721SM

SETSCREW, Sq. Hd., Cup Pt., 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0
