1690513 - Simplicity 42" Snow Thrower Attachment 36" & 42" Spout & Lift Rod Group Parts Diagram

42" Snow Thrower Attachment

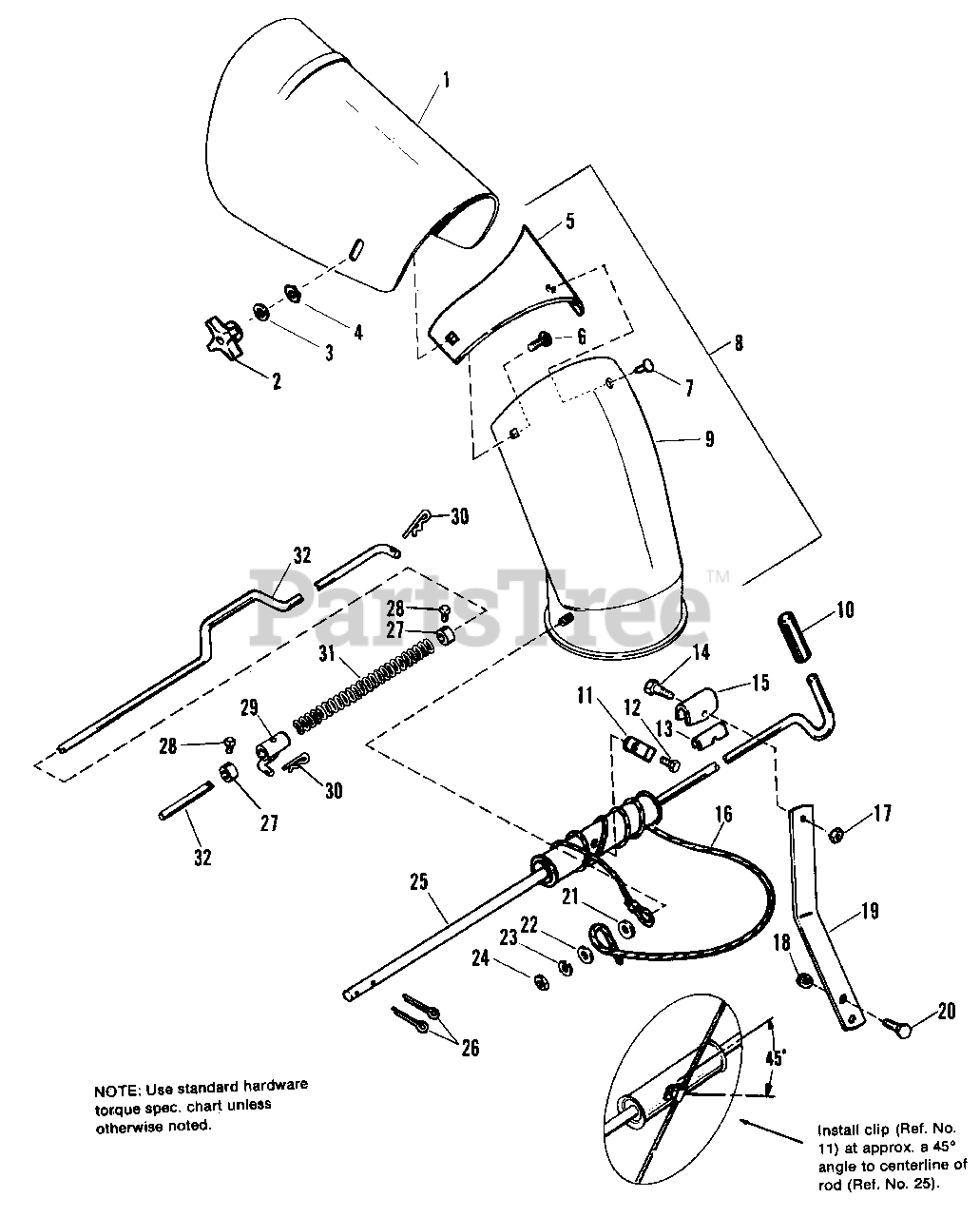

36" & 42" Spout & Lift Rod Group Parts Diagram

  • Title

1

Simplicity 106760

EXTENSION, Spout

$

$

Not available

2

Simplicity 1670578SM

KNOB

$13.99

$

In Stock, only 2 left!

0

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2828710

LOCKWASHER, Pyramidal, 3/8

$

$

Not available

5

Simplicity 1656583

DEFLECTOR, Snow

$

$

Not available

6

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

7

Simplicity 924799

RIVET

$

$

Not available

8

Simplicity 1666625

SPOUT ASSY., Riveted

$

$

Not available

9

Simplicity 1666172

SPOUT ASSY.

$

$

Not available

10

Simplicity 2176934SM

GRIP, Handle

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 2171382SM

CLAMP

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

13

Simplicity 2121175SM

GUIDE, Liner

$7.99

$

Usually ships in 2-12 days

0

14

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 12

0

15

Simplicity 2152050SM

GUIDE, Rod

$9.49

$

Usually ships in 2-12 days

0

16

Simplicity 2171362SM

CABLE ASSY.

$29.99

$

In Stock, only 1 left!

0

17

Simplicity 2823362

LOCKNUT, 5/16-18

$

$

Not available

18

Simplicity 2830645

NUT, Flange, 3/8-16

$

$

Not available

19

Simplicity 1707522SM

ARM, Support

$

$

Not available

20

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

21

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

22

Simplicity 2171379SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

23

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2176333

ROD ASSY., Spout Control

$

$

Not available

26

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

27

Simplicity 1729258SM

COLLAR
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

28

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

29

Simplicity 2171679SM

ROD GUIDE ASSY.

$76.99

$

Usually ships in 2-12 days

0

30

Simplicity 2106788

PIN, Clip

$

$

Not available

31

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

32

Simplicity 1665887SM

ROD, Lift

$69.99

$

Usually ships in 2-12 days

0
