1690531 - Simplicity 36" Mower Deck 36" Linkage & Roller Support Group Parts Diagram

36" Mower Deck

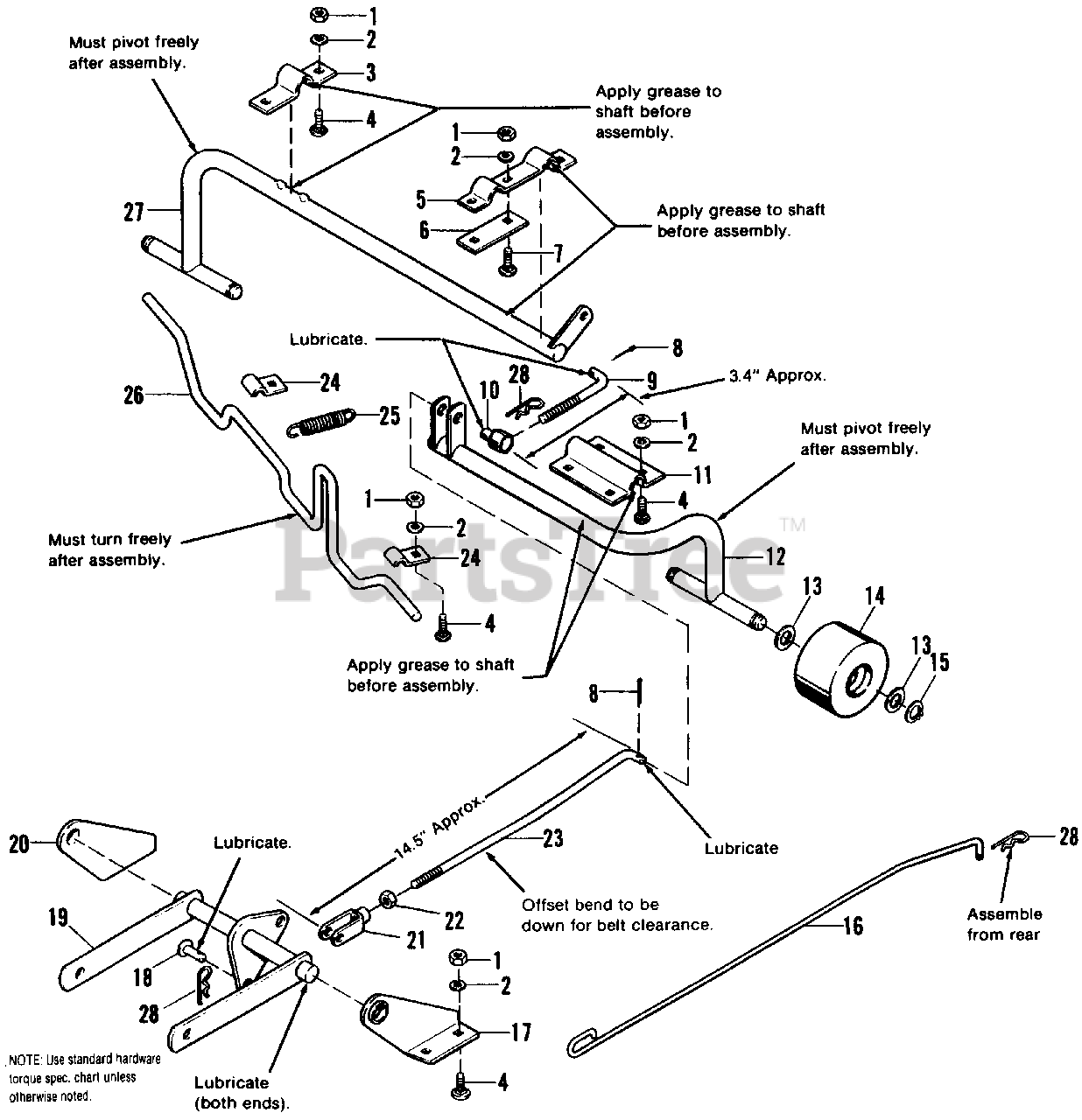

36" Linkage & Roller Support Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1663942

STRAP

$

$

Not available

4

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

5

Simplicity 1663943

CLAMP, Wheel Support

$

$

Not available

6

Simplicity 1664002

SPACER

$

$

Not available

7

Simplicity 2820563

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

8

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

9

Simplicity 1655811SM

ROD, Bolt

$27.99

$

In Stock, Qty 6

0

10

Simplicity 2108512SM

PIVOT

$37.99

$

In Stock, Qty 5

0

11

Simplicity 1653768ASM

STRAP

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 1663945

WHEEL SUPPORT ASSY., L.H.

$

$

Not available

13

Simplicity 2819387

WASHER, 41/64

$

$

Not available

14

Simplicity 1668487SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

15

Simplicity 2153124SM

RING, Retainer

$6.49

$

In Stock, Qty 20+

0

16

Simplicity 1665900

ROD, Brake

$

$

Not available

17

Simplicity 1663936

BRACKET, Front, L.H.

$

$

Not available

18

Simplicity 2823087

PIN, Yoke

$

$

Not available

19

Simplicity 1664848

SUPPORT ARM ASSY.

$

$

Not available

20

Simplicity 1663937

BRACKET, Front, R.H.

$

$

Not available

21

Simplicity 2108157SM

CLEVIS, Adjusting

$

$

Not available

22

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 12

0

23

Simplicity 1663938

ROD, Link

$

$

Not available

24

Simplicity 1664004SM

CLIP

$6.49

$

Usually ships in 2-12 days

0

25

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

26

Simplicity 1665905

BRAKE, Mower

$

$

Not available

27

Simplicity 1663947SM

WHEEL SUPPORT ASSY., R.H.

$

$

Not available

28

Simplicity 2106787

CLIP, Hairpin

$

$

Not available
