1690558 - Simplicity Alternator with Bracket Alternator w/Bracket Parts Diagram

Alternator with Bracket

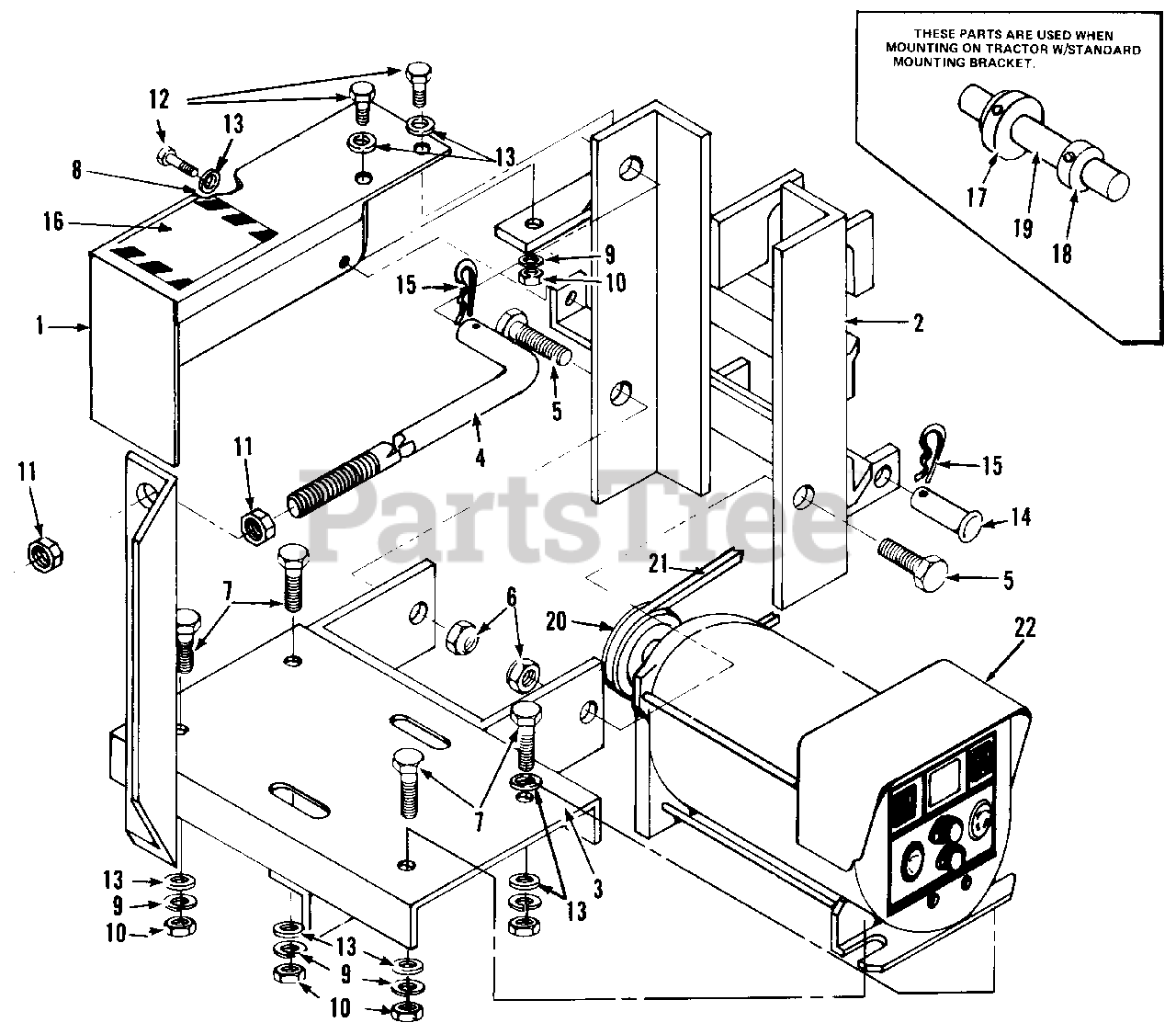

Alternator w/Bracket Parts Diagram

  • Title

1

Simplicity 1667202

GUARD, Belt

$

$

Not available

2

Simplicity 1667203

BRACKET, Tractor Mounting

$

$

Not available

3

Simplicity 1667205

BRACKET, Alternator Mounting

$

$

Not available

4

Simplicity 1667204

ROD, Belt Tension

$

$

Not available

5

Simplicity 1921176SM

CAPSCREW, 1/2-13 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1922134SM

LOCKNUT, Hex, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

7

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 106719

DECAL, Simplicity

$

$

Not available

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

13

Simplicity 1921319SM

WASHER, Plain, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

14

Simplicity 2155037SM

PIN, 7/16 x 1-3/4

$12.99

$

In Stock, only 1 left!

0

15

Simplicity 1960033SM

PIN

$3.49

$

In Stock, Qty 5

0

16

Simplicity 1667207

DECAL, Warning

$

$

Not available

17

Simplicity 2157695SM

COLLAR, Set

$87.99

$

Usually ships in 2-12 days

0

18

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

19

Simplicity 2154216SM

SHAFT, Support

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 2164202SM

PULLEY

$61.99

$

Usually ships in 2-12 days

0

21

Simplicity 2108508

V-BELT
(Superseded to 1713515SM)

$34.99

$

In Stock, Qty 13

0

22

ALTERNATOR

$

$

Not available

22

Simplicity 1930544SM

SETSCREW, 5/16-18 x 3/8 (Not Shown)
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 2805850SM

KEY, 3/16 x 3/16 x 1 (Not Shown)

$2.49

$

Usually ships in 2-12 days

0
