1690606 - Simplicity Electric Lift Kit Lift Group - Electric Parts Diagram

Electric Lift Kit

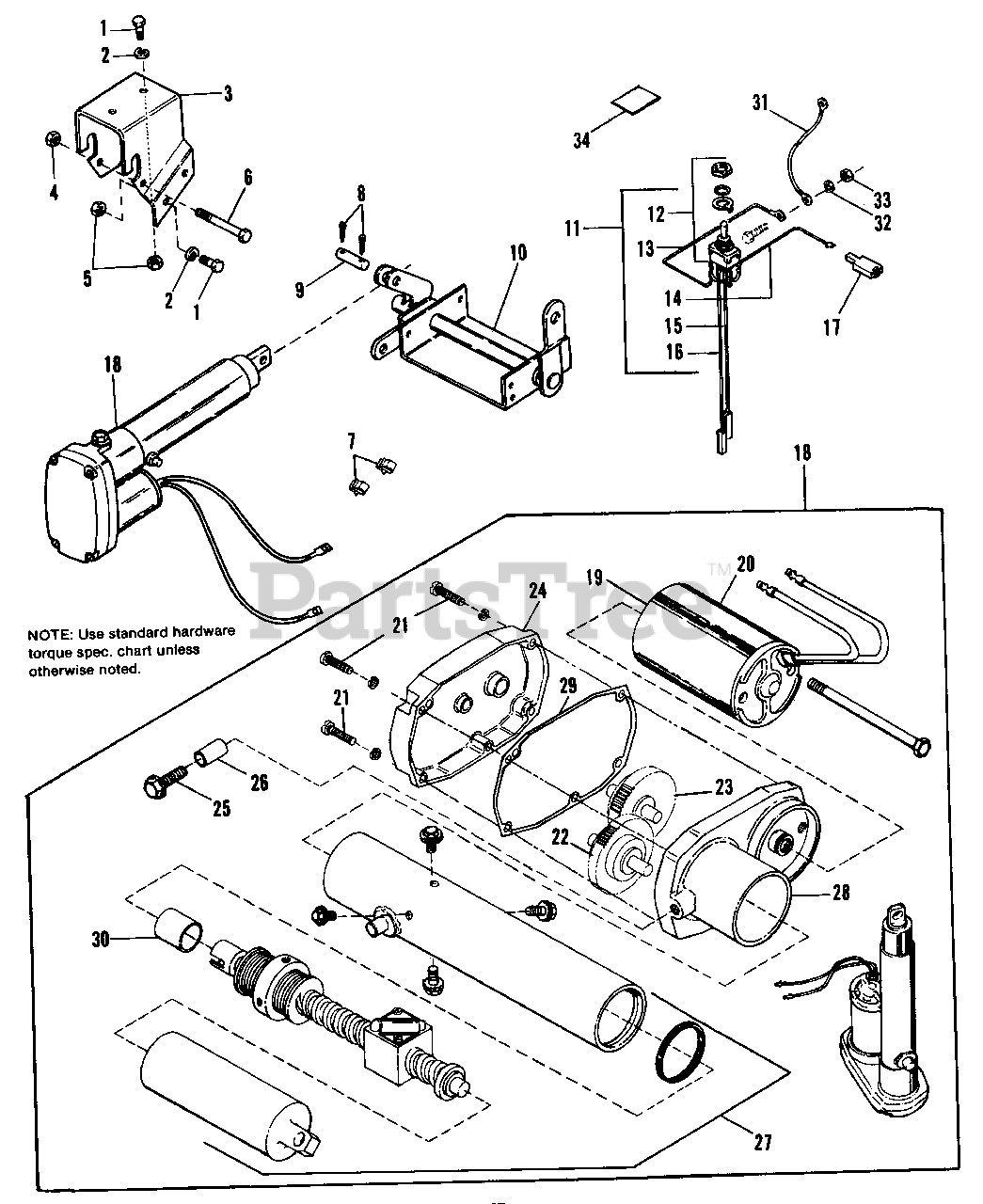

Lift Group - Electric Parts Diagram

  • Title

1

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1667322

BRACKET, Actuator

$

$

Not available

4

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2826106

CAPSCREW, Hex Hd., 5/16-18 x 3-1/4

$

$

Not available

7

Simplicity 2830222

CLIP, Wire

$

$

Not available

8

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

9

Simplicity 171025

PIN

$

$

Not available

10

Simplicity 1667320

ARM ASSY., Lift

$

$

Not available

11

Simplicity 1651166

HARNESS ASSY., Electric Lift

Note: Ref. No. 11 Includes Ref. Nos. 12-16.

$

$

Not available

12

Simplicity 2171683SM

SWITCH ASSY., Electric

$106.99

$

Usually ships in 2-12 days

0

13

Simplicity 171951

WIRE, Switch to Lift

$

$

Not available

14

Simplicity 171950

WIRE, Switch to Lift

$

$

Not available

15

Simplicity 2171969

WIRE, Switch to Ground

$

$

Not available

16

Simplicity 1651165

WIRE, Switch to Ignition

$

$

Not available

17

Simplicity 122182

CONNECTOR, Insulated

$

$

Not available

18

Simplicity 1667754

POWER LIFT ASSY.

Note: Ref. No. 18 Includes Ref. Nos. 19-30.

$

$

Not available

19

Simplicity 1664756SM

BRUSH, w/Spring Set

$26.99

$

Usually ships in 2-12 days

0

20

Simplicity 1663966

12 VOLT DC MOTOR

$

$

Not available

21

Simplicity 928589

SCREW, Fillister Hd.

$

$

Not available

22

Simplicity 1709105SM

GEAR ASSY., 4th

$780.99

$

Usually ships in 2-12 days

0

23

Simplicity 1709105SM

GEAR ASSY., 2nd & 3rd

$780.99

$

Usually ships in 2-12 days

0

24

Simplicity 1664757

COVER, Housing

$

$

Not available

25

Simplicity 1605773

CAPSCREW, Thd. Forming

$

$

Not available

26

Simplicity 1605778SM

PIN, Drive

$6.99

$

Usually ships in 2-12 days

0

27

Simplicity 1667787

BALL SCREW ASSY.

$

$

Not available

28

Simplicity 1664758

HOUSING, Motor

$

$

Not available

29

Simplicity 1667788SM

GASKET, Cover

$29.99

$

Usually ships in 2-12 days

0

30

Simplicity 1605779

SLEEVE

$

$

Not available

31

Simplicity 1669662

WIRE, Ground

$

$

Not available

32

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

33

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

34

Simplicity 1669833

DECAL, Lift Switch

$

$

Not available
