1690680 - Simplicity 12 Volt Electric Start Kit 12 Volt Starter Group Parts Diagram

12 Volt Electric Start Kit

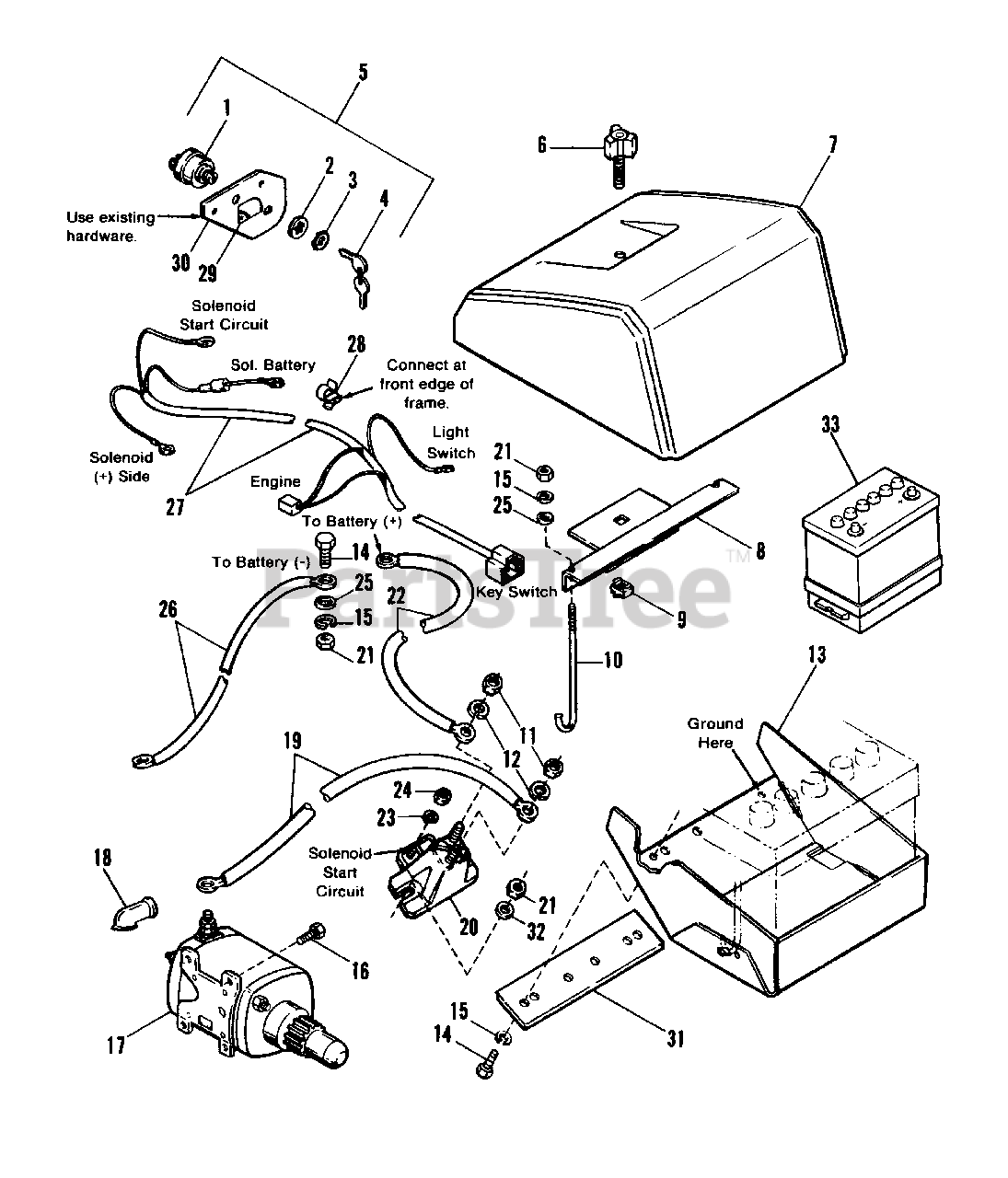

12 Volt Starter Group Parts Diagram

  • Title

1

SWITCH (See Ref. No. 5)

$

$

Not available

2

Simplicity 2818906

LOCKWASHER, Int. Tooth, 5/8

$

$

Not available

3

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1717163SM

KEY, Set of Two

$8.99

$

In Stock, Qty 14

0

5

Simplicity 2178280SM

SWITCH, Key (Incl. Ref. Nos. 1, 2, 3 & 4)
(Superseded to 421064MA)

$32.99

$

In Stock, only 1 left!

0

6

Simplicity 1668777SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 1668756

COVER

$

$

Not available

8

Simplicity 1668795SM

HOLD DOWN ASSY., Battery

$26.99

$

Usually ships in 2-12 days

0

9

Simplicity 2830659

NUT, Cage, Tinnerman, 5/16-18

$

$

Not available

10

Simplicity 1668820SM

J-HOOK

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1668731SM

SUPPORT ASSY., Battery

$

$

Not available

14

Simplicity 2823341SM

CAPSCREW, Hex, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

15

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

16

SCREW

$

$

Not available

17

MOTOR, Starter (not serviced)

$

$

Not available

18

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, only 3 left!

0

19

Simplicity 1668819SM

WIRE, Solenoid to Starter

$16.99

$

Usually ships in 2-12 days

0

20

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 7

0

21

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

22

Simplicity 1707056SM

WIRE, Battery to Solenoid

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

24

Simplicity 2817415

NUT, Hex, Full, #10-32

$

$

Not available

25

Simplicity 2817377

WASHER, Flat, 1/4

$

$

Not available

26

Simplicity 1707056SM

CABLE, Battery to Ground

$10.99

$

Usually ships in 2-12 days

0

27

Simplicity 1668816

HARNESS, Wiring

$

$

Not available

28

Simplicity 2172434SM

CLIP, Wire

$4.99

$

In Stock, only 2 left!

0

29

Simplicity 1668905

DECAL, Key Switch

$

$

Not available

30

Simplicity 1668743

BRACKET, Key Switch

$

$

Not available

31

Simplicity 1671022

PLATE, Reinforcement

$

$

Not available

32

Simplicity 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

33

Simplicity 1685215SM

BATTERY (Not included in kit)

$

$

Not available

1

Simplicity 2153038SM

TUBE (Service Only) 4.80/4.00-8

$35.99

$

In Stock, only 2 left!

0

2

Simplicity 1668163SM

TIRE, (4.80/4.00-8)

$68.99

$

Usually ships in 2-12 days

0

3

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

4

Simplicity 1714242SM

WHEEL & HUB ASSY.

$108.99

$

In Stock, only 1 left!

0

5

Simplicity 1665994SM

PIN
(Superseded to 703145)

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 2106787

CLIP, Hair Pin

$

$

Not available

7

Simplicity 1668164

WHEEL & TIRE ASSY.

$

$

Not available
