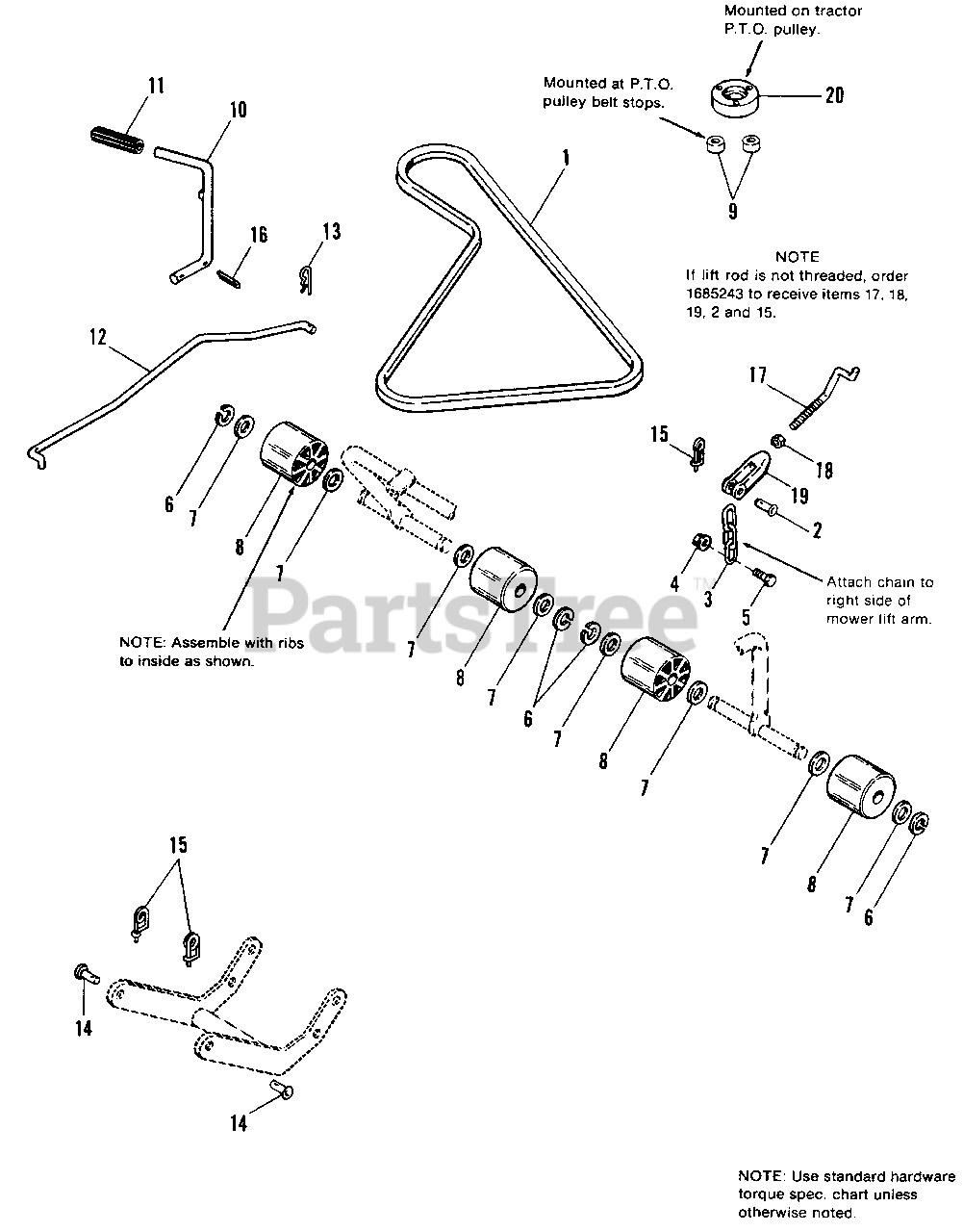

1690710 - Simplicity 36" Mower Deck 36" Rollers & Misc. Group Parts Diagram

36" Mower Deck

36" Rollers & Misc. Group Parts Diagram

  • Title

1

Simplicity 1707740SM

V-BELT, Mower Drive

$36.99

$

In Stock, Qty 17

0

2

Simplicity 1655651SM

PIN, Rivet
(Superseded to 1733568SM)

$6.99

$

In Stock, Qty 5

0

3

Simplicity 1656835A

CHAIN, Lift

$

$

Not available

4

Simplicity 2835048

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

5

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

6

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

8

Simplicity 1668487SM

ROLLER

$9.99

$

In Stock, Qty 20+

0

9

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 5

0

10

Simplicity 1656412SM

LEVER, Control

$84.99

$

Usually ships in 2-12 days

0

11

Simplicity 2176933SM

GRIP, Handle

$3.49

$

In Stock, only 1 left!

0

12

Simplicity 1669234

ROD, P.T.O.

Note: Used on Mfg. No. 1690710 and 1690839.

$

$

Not available

12

Simplicity 1668120

ROD, P.T.O.

Note: Used on Mtg. No. 1690627.

$

$

Not available

13

Simplicity 2106787

CLIP, Spring

$

$

Not available

14

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

15

Simplicity 2176012SM

CLIP, Pin, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

17

Simplicity 1685243SM

ROD, Lift

$35.99

$

Usually ships in 2-12 days

0

18

Simplicity 2820161

NUT, Jam, 5/16-18

$

$

Not available

19

Simplicity 1673575SM

CLEVIS

$29.99

$

In Stock, only 3 left!

0

20

Simplicity 1669751SM

SPACER, Pulley

$16.99

$

Usually ships in 2-12 days

0
