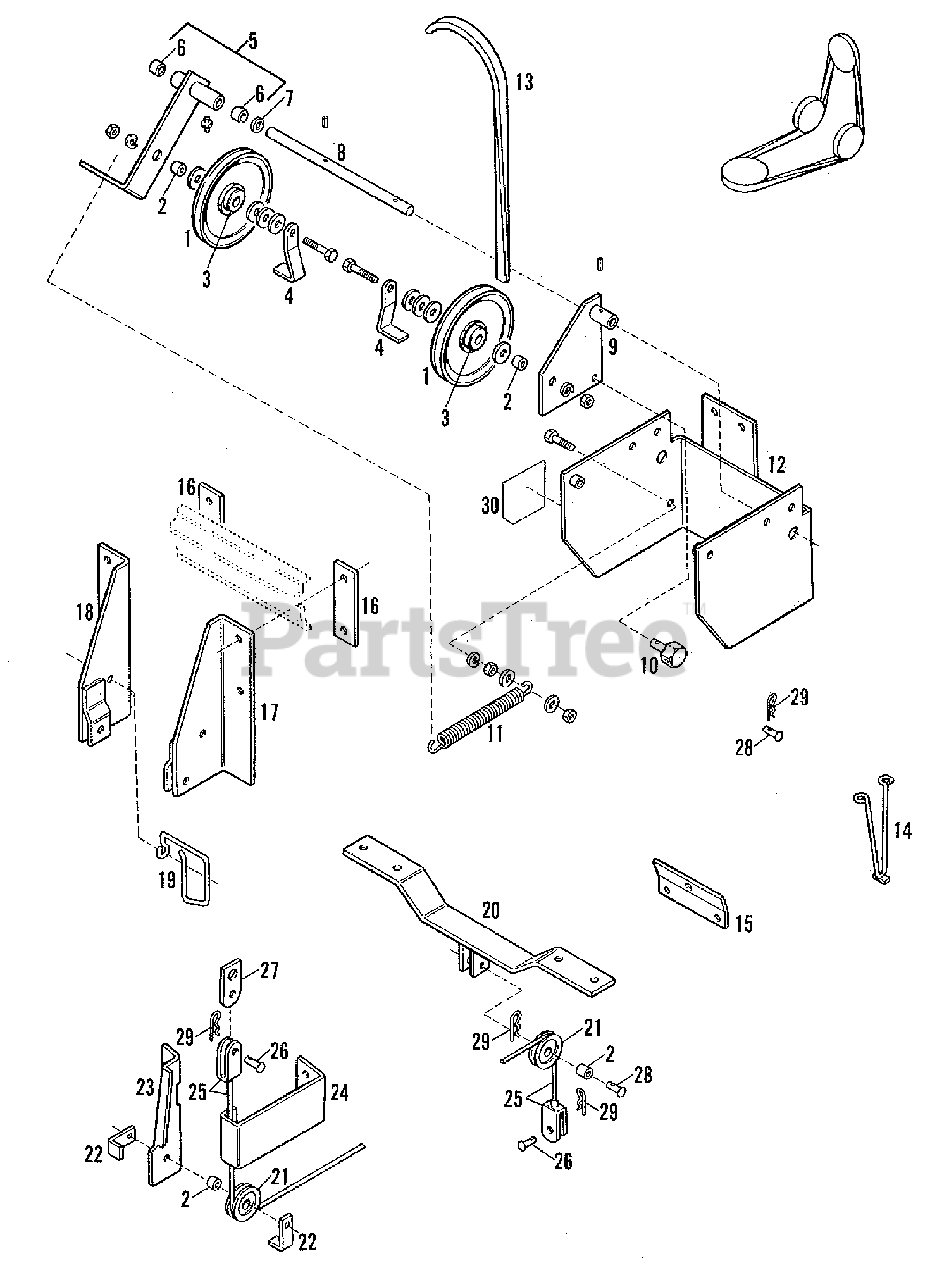

1690769 - Simplicity 48" Mower Deck, Center-Mounted Drive Hitch & Lift Group (3482I51) Parts Diagram

48" Mower Deck, Center-Mounted

Drive Hitch & Lift Group (3482I51) Parts Diagram

  • Title

1

Simplicity 1664974-1

PULLEY ASSEMBLY

$

$

Not available

2

Simplicity 1665814-8

SPACER

$

$

Not available

3

Simplicity 1666294-2

SPACER

$

$

Not available

4

Simplicity 1685180-0

STOP, Belt

$

$

Not available

4

Simplicity 0922130-0

CAPSCREW, 3/8NC x 2-1/4

$

$

Not available

4

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 GA.

$

$

Not available

4

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

4

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

5

Simplicity 1670910-7

ARM ASSEMBLY

$

$

Not available

5

Simplicity 0921133-5

FITTING, Lube, 1/4 Str.

$

$

Not available

6

Simplicity 2029343-7

BUSHING

$

$

Not available

7

Simplicity 0919387-1

WASHER, Plain, 41/64 x 1-1/4 x 14 Ga.

$

$

Not available

8

Simplicity 1664659-8

SHAFT, Idler Support

$

$

Not available

8

Simplicity 0916001-1

PIN, Spring, 3/16 x 1

$

$

Not available

9

Simplicity 1664665-5

ARM ASSEMBLY, Support

$

$

Not available

9

Simplicity 0916001-1

PIN, Spring, 3/16 x 1

$

$

Not available

10

Simplicity 2087655-3

PIVOT

$

$

Not available

10

Simplicity 0918448-2

PIN, Cotter, 3/32 x 1"

$

$

Not available

11

Simplicity 1664661-4

SPRING

$

$

Not available

11

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

11

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 GA.

$

$

Not available

11

Simplicity 0916965-7

LOCKWSHER, 3/8

$

$

Not available

11

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

11

Simplicity 0930651-5

NUT, Lock, 3/8NC

$

$

Not available

12

Simplicity 1670908-1

SUPPORT ASSEMBLY, Idler

$

$

Not available

12

Simplicity 0920676-4

CAPSCREW, 7/16NC x 1

$

$

Not available

12

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

12

Simplicity 0924356-9

WASHER, Plain, 13/32 x 1-1/2 x 11 Ga.

$

$

Not available

12

Simplicity 0918213-0

NUT, 7/16NC

$

$

Not available

12

Simplicity 0933674-4

CAPSCREW, 3/8NC x 4-1/4

$

$

Not available

12

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

12

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

13

Simplicity 1671076-6

V-BELT (Use w/Turf Tires)

$

$

Not available

13

Simplicity 1673667-0

V-BELT (Use w/Agriculture Type Tires)

$

$

Not available

14

Simplicity 1671660-7

STOP

$

$

Not available

14

Simplicity 0921221-8

CAPSCREW, 5/16NC x 1-1/2

$

$

Not available

14

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 14 Ga.

$

$

Not available

14

Simplicity 0924356-9

WASHER, Plain, 13/32 x 1-1/2 x 11 Ga.

$

$

Not available

14

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

14

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

15

Simplicity 1670924-8

BRACKET, Lift

$

$

Not available

15

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

15

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

15

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

16

Simplicity 1670916-4

SPACER

$

$

Not available

16

Simplicity 0928295-5

CAPSCREW, 7/16NC x 3-3/4

$

$

Not available

16

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

16

Simplicity 0918213-0

NUT, 7/16NC

$

$

Not available

17

Simplicity 1670913-1

HITCH ASSEMBLY, R.H. (Use w/Turf Tires)

$

$

Not available

17

Simplicity 1673572-2

HITCH ASSEMBLY, R.H. (Use w/Ag. Tires)

$

$

Not available

18

Simplicity 1670917-2

HITCH ASSEMBLY, L.H. (Use w/Turf Tires)

$

$

Not available

18

Simplicity 1673571-4

HITCH ASSEMBLY, L.H. (Use w/Ag. Tires)

$

$

Not available

19

Simplicity 1666149-8

STOP, Belt

$

$

Not available

19

Simplicity 0921333-1

CAPSCREW, 5/16NC x 1

$

$

Not available

19

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 14 Ga.

$

$

Not available

19

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

19

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

20

Simplicity 1670919-8

BAR ASSEMBLY, Support

$

$

Not available

20

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

20

Simplicity 0924356-9

WASHER, Plain, 13/32 x 1-1/2 x 16 Ga.

$

$

Not available

20

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

20

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

21

Simplicity 1665829-6

PULLEY

$

$

Not available

22

Simplicity 2087690-0

GUARD, Cable

$

$

Not available

22

Simplicity 0921969-2

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

22

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

22

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

23

Simplicity 1670923-0

SUPPORT, Pulley

$

$

Not available

24

Simplicity 1670922-2

GUIDE, Cable

$

$

Not available

25

Simplicity 2028685-2

CABLE ASSEMBLY

$

$

Not available

26

Simplicity 2025499-1

PIN

$

$

Not available

27

Simplicity 1670925-5

LINK, Lift

$

$

Not available

28

Simplicity 2026849-6

PIN

$

$

Not available

29

Simplicity 9002801-0

CLIP, Hairpin

$

$

Not available

30

Simplicity 1664808-1

DECAL, Adjustment

$

$

Not available
