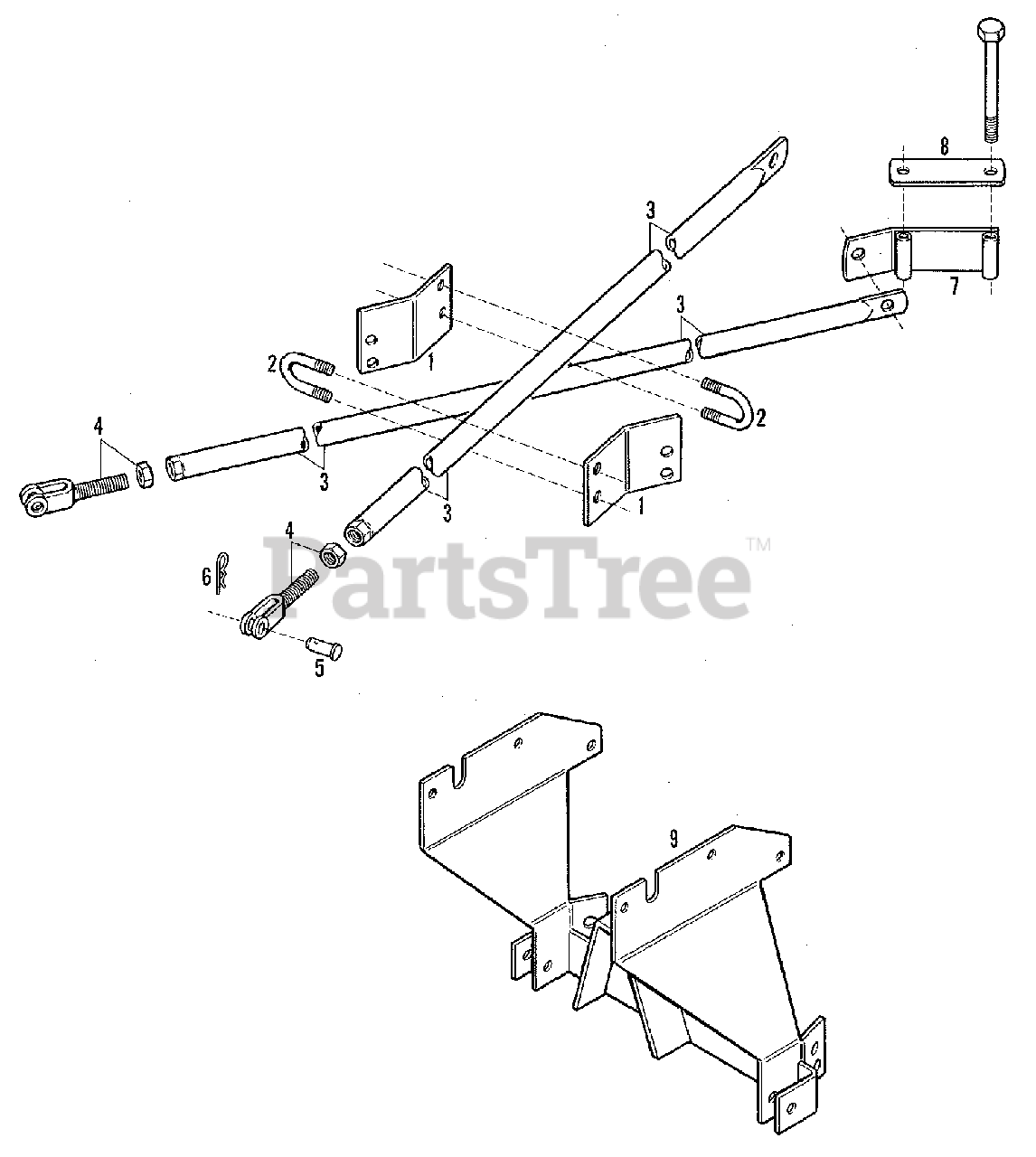

1690770 - Simplicity 52" Snow Thrower Attachment Frame - Hitch Group (3482I94) Parts Diagram

52" Snow Thrower Attachment

Frame - Hitch Group (3482I94) Parts Diagram

  • Title

1

Simplicity 1671457-8

PLATE, Clamp

$

$

Not available

2

Simplicity 1671458-6

U-BOLT

$

$

Not available

2

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

2

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

3

Simplicity 1670928-9

TUBE ASSEMBLY

$

$

Not available

3

Simplicity 0936522-2

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

3

Simplicity 0916966-5

LCOKWASHER, 1/2

$

$

Not available

3

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

4

Simplicity 2028753-8

YOKE

$

$

Not available

4

Simplicity 0922014-6

NUT, Jam, 5/8NC

$

$

Not available

5

Simplicity 2025406-6

PIN, Yoke

$

$

Not available

6

Simplicity 9002802-8

CLIP, Hairpin

$

$

Not available

7

Simplicity 1670935-4

BRACKET ASSEMBLY

$

$

Not available

8

Simplicity 1670938-8

BAR

$

$

Not available

8

Simplicity 0926133-0

CAPSCREW, 1/2NC x 7

$

$

Not available

8

Simplicity 0931519-3

CAPSCREW, 1/2NC x 9 (For Use w/Roll Over Protection Only)

$

$

Not available

8

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

8

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

9

Simplicity 1670942-0

PLATE ASSEMBLY, Side

$

$

Not available

9

Simplicity 0920677-2

CAPSCREW, 7/16NC x 1-1/4

$

$

Not available

9

Simplicity 0921212-7

CAPSCREW, 7/16NC x 1-1/2

$

$

Not available

9

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

9

Simplicity 0918213-0

NUT, 7/16NC

$

$

Not available

9

Simplicity 0932138-1

CAPSCREW, M12 x 1-1/2 x 40MM (For 4-Wheel Drive)

$

$

Not available

9

Simplicity 0924361-9

WASHER, Plain, 17/32 x 1-1/4 x 14 GA

$

$

Not available

9

Simplicity 0950221-2

LOCKWASHER, 12MM (For 4-Wheel Drive)

$

$

Not available
