1690770 - Simplicity 52" Snow Thrower Attachment Frame - Spout & Deflector Group (3482I93) Parts Diagram

52" Snow Thrower Attachment

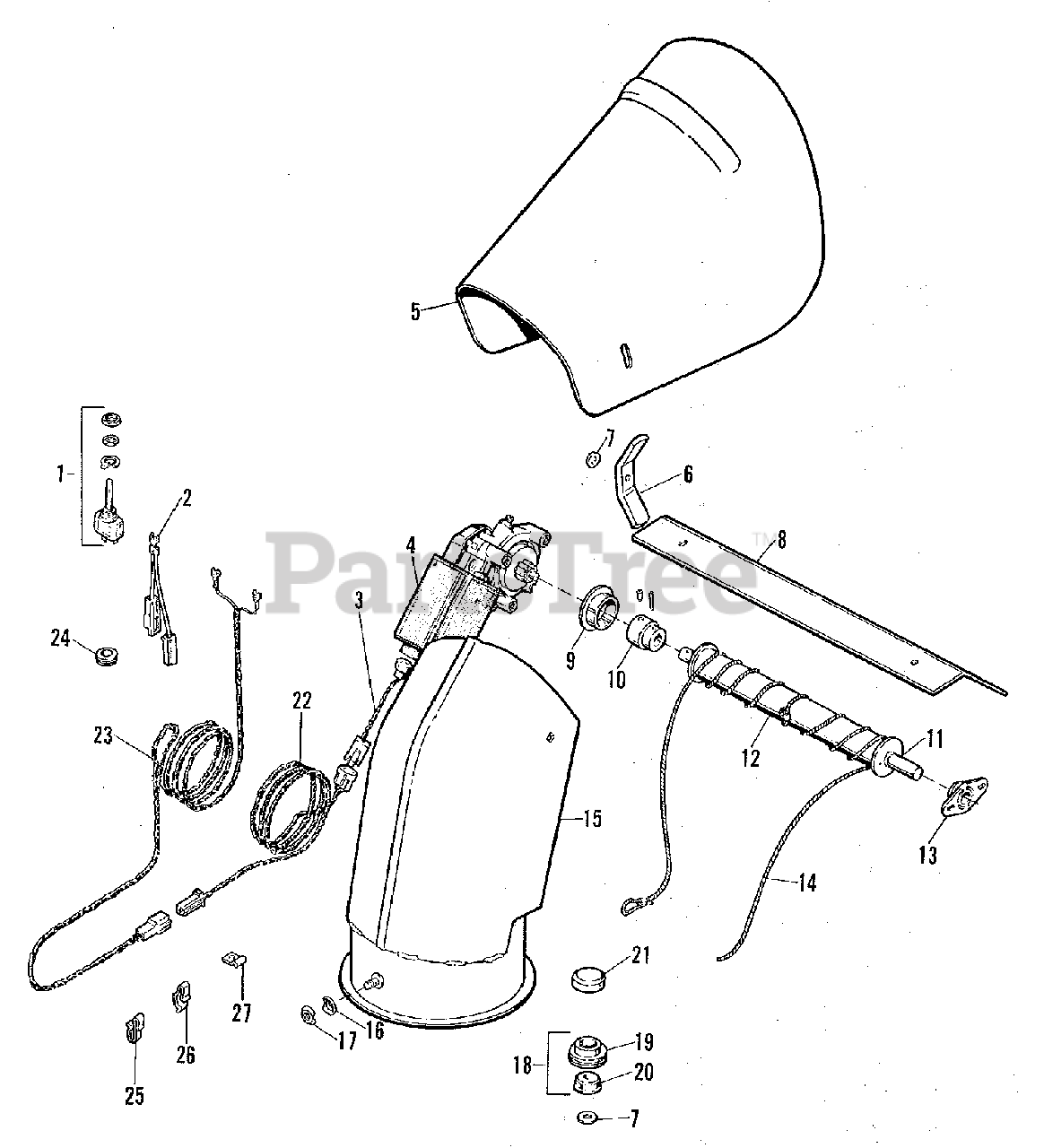

Frame - Spout & Deflector Group (3482I93) Parts Diagram

  • Title

1

Simplicity 2029028-4

SWITCH, Spout Control

$

$

Not available

2

Simplicity 2029031-8

WIRE, Chute

$

$

Not available

3

Simplicity 1664175-5

HARNESS, Adapter

$

$

Not available

4

Simplicity 1664115-1

MOTOR, Spout Control

$

$

Not available

4

Simplicity 0923341-2

CAPSCREW, 1/4NC x 3/4

$

$

Not available

4

Simplicity 0917377-4

WASHER, Plain, 5/16 x 3/4 x 16 Ga.

$

$

Not available

4

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

5

Simplicity 2029024-3

EXTENSION, Spout

$

$

Not available

6

Simplicity 2029025-0

NUT, Wing

$

$

Not available

6

Simplicity 0922110-2

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

6

Simplicity 0930665-5

WASHER, Lock, Dished, 3/8

$

$

Not available

7

Simplicity 1667660-3

SPACER

$

$

Not available

8

Simplicity 2029027-6

COVER, Chute Control

$

$

Not available

8

Simplicity 0927428-3

SCREW, Taptite, 1/4NC x 3/8

$

$

Not available

9

Simplicity 2029016-9

BEARING, Flanged

$

$

Not available

10

Simplicity 2029018-5

HUB

$

$

Not available

10

Simplicity 0930547-5

SETSCREW, Hex Socket Head, No. 10NC x 3/8

$

$

Not available

10

Simplicity 0926228-8

PIN, Spring, 5/32 x 1

$

$

Not available

11

Simplicity 2029020-1

TUBE ASSEMBLY, Spout Control

$

$

Not available

12

Simplicity 2027957-6

CLAMP

$

$

Not available

12

Simplicity 0927428-3

SCREW, Taptite, 1/4NC x 3/8

$

$

Not available

12

Simplicity 0917377-4

WASHER, Plain, 5/16 x 3/4 x 16 Ga.

$

$

Not available

13

Simplicity 2029021-9

BEARING

$

$

Not available

13

Simplicity 0927428-3

SCREW, Taptite, 1/4NC x 3/8

$

$

Not available

14

Simplicity 2029022-7

CABLE ASSEMBLY

$

$

Not available

15

Simplicity 2029015-1

SPOUT ASSEMBLY

$

$

Not available

15

Simplicity 0917377-4

WASHER, Plain, 5/16 x 3/4 x 16 Ga.

$

$

Not available

15

Simplicity 0923362-8

NUT, Lock, 5/16NC

$

$

Not available

16

Simplicity 2027959-2

WASHER, Cup

$

$

Not available

17

Simplicity 2027544-2

WASHER, Cup

$

$

Not available

18

Simplicity 1667659-5

BEARING ASSEMBLY, Pulley

$

$

Not available

18

Simplicity 2029026-8

PULLEY & BEARING ASSEMBLY

$

$

Not available

19

Simplicity 1667658-7

PULLEY

$

$

Not available

19

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1

$

$

Not available

19

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

19

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

20

Simplicity 2029440-1

BEARING

$

$

Not available

20

Simplicity 0927694-0

RING, Retaining

$

$

Not available

21

Simplicity 2026721-7

CAP

$

$

Not available

22

Simplicity 2029030-0

HARNESS ASSEMBLY, Motor

$

$

Not available

23

Simplicity 2029029-2

HARNESS ASSEMBLY, Switch

$

$

Not available

24

Simplicity 2028527-6

GROMMET, Rubber

$

$

Not available

25

Simplicity 2027978-2

CLIP, Cable

$

$

Not available

26

Simplicity 2029032-6

CLIP, Cable

$

$

Not available

27

Simplicity 0932771-9

CLIP, Cable

$

$

Not available

27

Simplicity 0927428-3

SCREW, Taptite, 1/4NC x 3/8

$

$

Not available
