1690770 - Simplicity 52" Snow Thrower Attachment Hitch - Hitch & Drive Assembly Group (3482I95) Parts Diagram

52" Snow Thrower Attachment

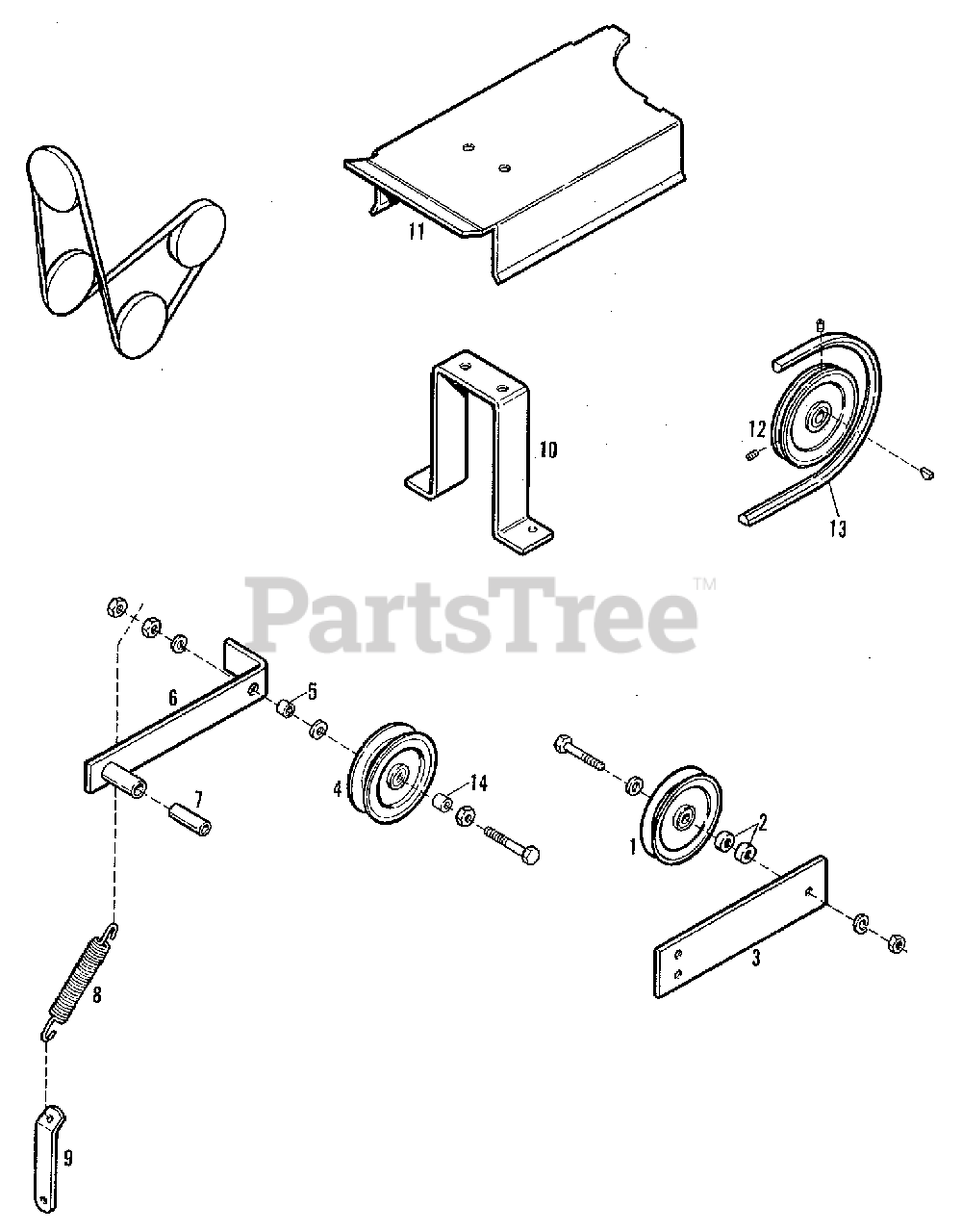

Hitch - Hitch & Drive Assembly Group (3482I95) Parts Diagram

  • Title

1

Simplicity 1665440-2

PULLEY ASSEMBLY

$

$

Not available

1

Simplicity 1666292-6

BEARING

$

$

Not available

1

Simplicity 0923701-7

CAPSCREW, 3/8NC x 2

$

$

Not available

1

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 16 Ga.

$

$

Not available

1

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

1

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

2

Simplicity 2088089-4

SPACER

$

$

Not available

3

Simplicity 1671455-2

ARM, Idler

$

$

Not available

3

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

3

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

3

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 1665432-9

PULLEY

$

$

Not available

4

Simplicity 0922130-0

CAPSCREW, 3/8NC x 2-1/4

$

$

Not available

4

Simplicity 0924940-0

WASHER, Plain, 13/32 x 7/8 x 14 Ga

$

$

Not available

4

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

4

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 0928731-9

NUT, Jam, 3/8NC

$

$

Not available

5

Simplicity 2029347-8

SPACER

$

$

Not available

6

Simplicity 1671463-6

ARM ASSEMBLY, Idler

$

$

Not available

6

Simplicity 0921972-6

CAPSCREW, 3/8NC x 2-1/4

$

$

Not available

6

Simplicity 0924940-0

WASHER, Plain, 13/32 x 7/8 x 14 Ga

$

$

Not available

6

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

7

Simplicity 1657242-2

SPACER

$

$

Not available

8

Simplicity 1664661-4

SPRING

$

$

Not available

9

Simplicity 1670891-9

BRACKET, Spring

$

$

Not available

9

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

9

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

9

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

10

Simplicity 1670890-1

BRACKET, Cover

$

$

Not available

10

Simplicity 0925592-8

SCREW, Taptite, 1/4NC x 3/4

$

$

Not available

11

Simplicity 1670889-3

COVER

$

$

Not available

11

Simplicity 0921332-3

CAPSCREW, 5/16NC x 3/4

$

$

Not available

11

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 16 Ga.

$

$

Not available

11

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

11

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

12

Simplicity 1670894-3

PULLEY

$

$

Not available

12

Simplicity 0928721-0

SETSCREW, 5/16NC x 1/2

$

$

Not available

12

Simplicity 0930670-5

KEY, Hi-Pro, 3/16 x 3/4

$

$

Not available

13

Simplicity 2087759-3

V-BELT

$

$

Not available

14

Simplicity 1666292-6

SPACER

$

$

Not available

-

Simplicity 1685144-6

PULLEY KIT

$

$

Not available
