1690771 - Simplicity 60" Dozer Blade Hydraulic Lines - Implement End Group (3482I05) Parts Diagram

60" Dozer Blade

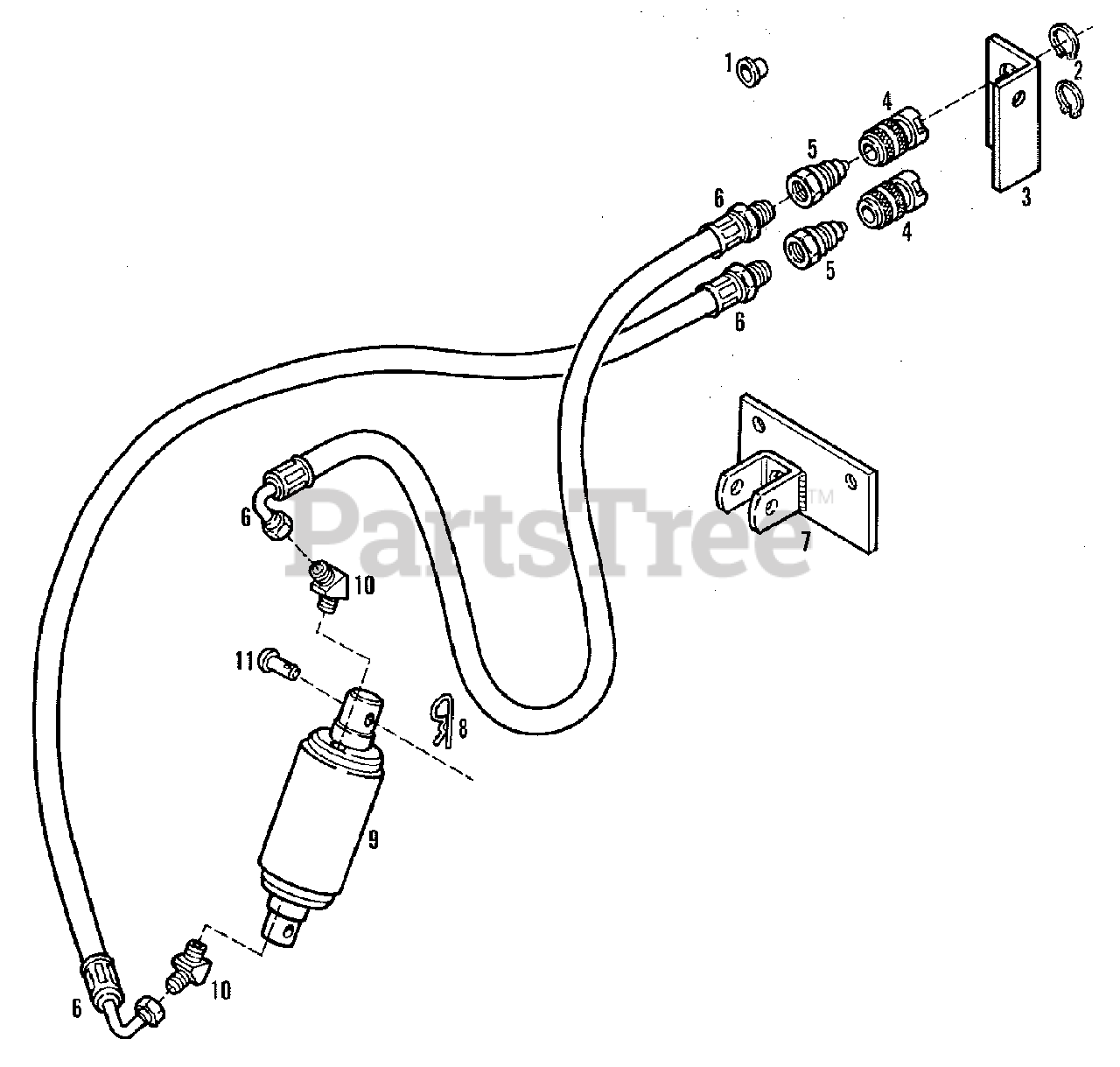

Hydraulic Lines - Implement End Group (3482I05) Parts Diagram

  • Title

1

Simplicity 9002070-2

PLUG, Plastic

$

$

Not available

2

Simplicity 4908032-8

RING, Retaining

$

$

Not available

3

Simplicity 1671209-3

PLATE, Mounting

$

$

Not available

3

Simplicity 0950018-2

CAPSCREW, M8 x 1-1/4 x 20

$

$

Not available

3

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

4

Simplicity 9002064-5

BODY ASSEMBLY

$

$

Not available

5

Simplicity 2028819-7

NOSE PIECE ASSEMBLY

$

$

Not available

6

Simplicity 2028622-5

HOSE ASSEMBLY

$

$

Not available

7

Simplicity 1671383-6

MOUNT ASSEMBLY, Cylinder

$

$

Not available

7

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

7

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

7

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

8

Simplicity 9002802-8

CLIP, Hairpin (Pkg. of 4)

$

$

Not available

9

Simplicity 2028624-1

CYLINDER ASSEMBLY

$

$

Not available

10

Simplicity 2028623-3

FITTING

$

$

Not available

11

Simplicity 2025750-7

PIN, King

$

$

Not available
