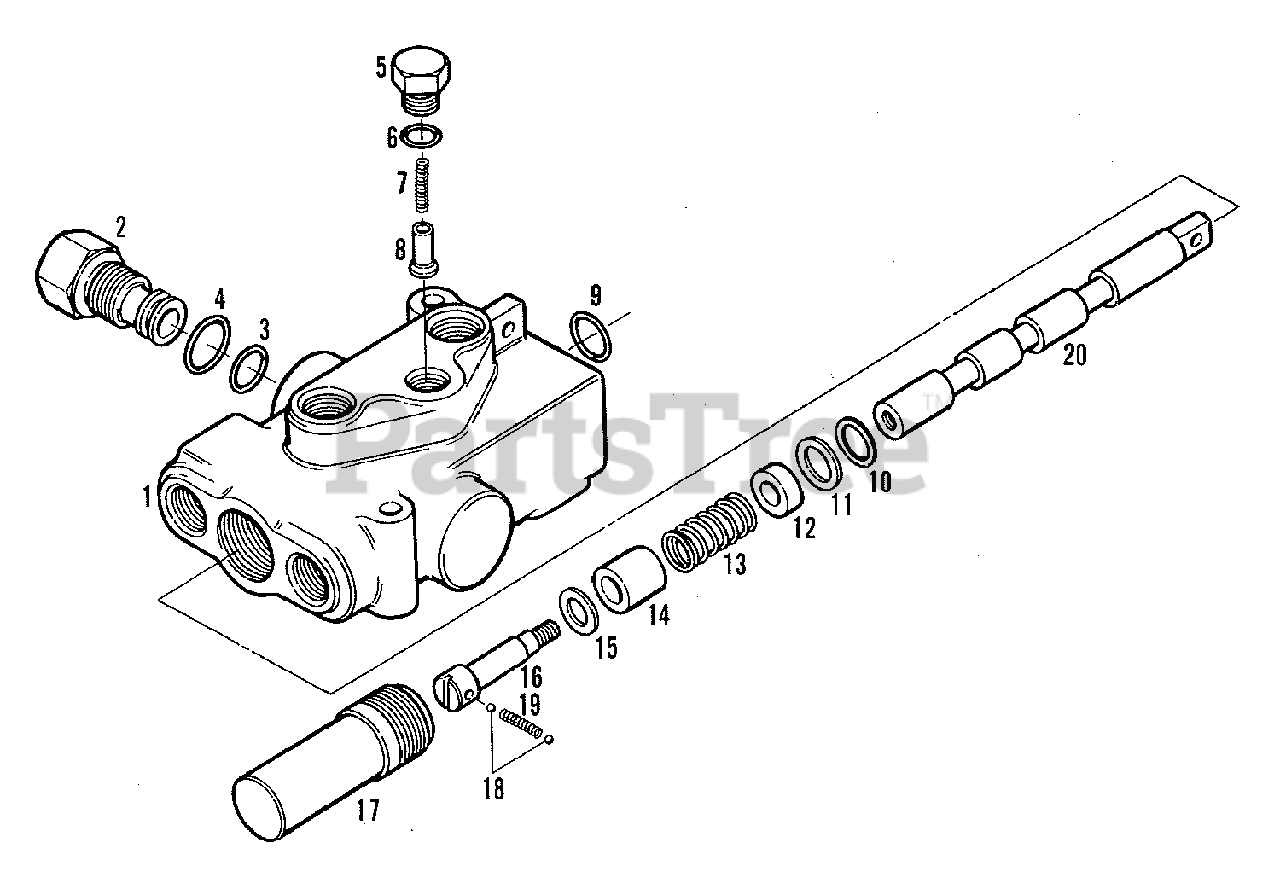

1690771 - Simplicity 60" Dozer Blade Hydraulics - Lift Control Valve Group (3482I07) Parts Diagram

60" Dozer Blade

Hydraulics - Lift Control Valve Group (3482I07) Parts Diagram

  • Title

-

Simplicity 1671570-8

VALVE ASSEMBLY, Control - Complete

$

$

Not available

1

BODY

$

$

Not available

2

Simplicity 1672139-1

PLUG

$

$

Not available

3

Simplicity 0923845-2

O-RING

$

$

Not available

4

Simplicity 1671905-6

O-RING

$

$

Not available

5

Simplicity 1671909-8

PLUG, Check

$

$

Not available

6

Simplicity 1671903-1

O-RING

$

$

Not available

7

Simplicity 1671908-0

SPRING

$

$

Not available

8

Simplicity 1671907-2

PLUNGER

$

$

Not available

9

Simplicity 0923846-0

O-RING

$

$

Not available

10

Simplicity 1671910-6

RING

$

$

Not available

11

Simplicity 1671906-4

WASHER

$

$

Not available

12

Simplicity 1672141-7

SPACER

$

$

Not available

13

Simplicity 1672142-5

SPRING

$

$

Not available

14

Simplicity 1672143-3

STOP, Spool

$

$

Not available

15

Simplicity 1672144-1

WASHER

$

$

Not available

16

Simplicity 1672145-8

STEM, Spool

$

$

Not available

17

Simplicity 1672146-6

CAP

$

$

Not available

18

Simplicity 0918766-7

BALL

$

$

Not available

19

Simplicity 1672148-2

SPRING

$

$

Not available

20

SPOOL

$

$

Not available
