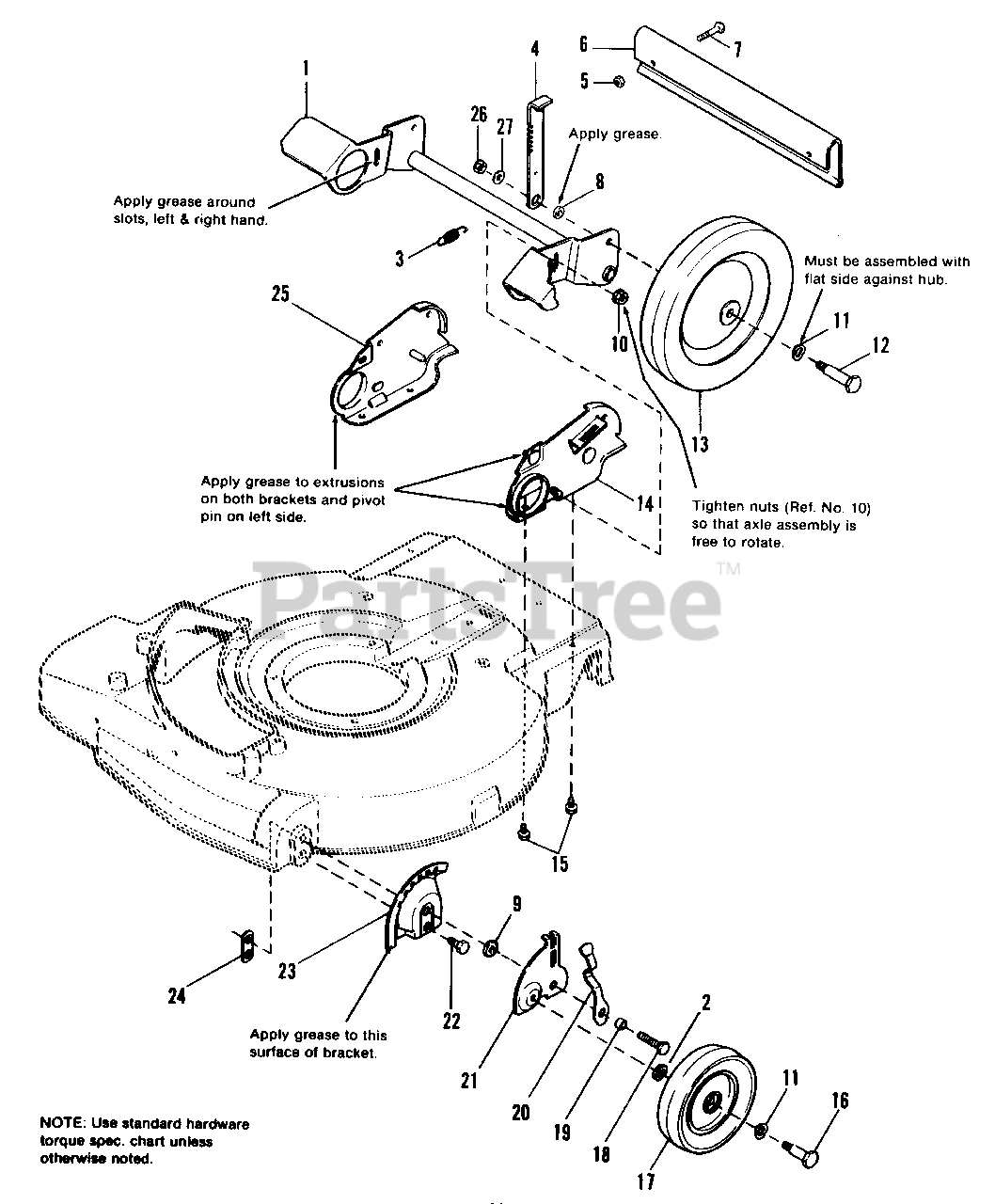

1690795 - Simplicity 21" Walk-Behind Mower Wheel & Height Adjusters Group Parts Diagram

21" Walk-Behind Mower

Wheel & Height Adjusters Group Parts Diagram

  • Title

1

Simplicity 1666948

PLATE & TUBE ASSY.

$

$

Not available

2

Simplicity 1918266SM

SPACER-Front Wheel (1691100,if required)
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 170264

SPRING

$

$

Not available

4

Simplicity 1666608

ADJUSTER, Height, Rear

$

$

Not available

5

Simplicity 2833896

LOCKNUT, Hex Nlyon, #10-24

$

$

Not available

6

Simplicity 1666187

SHIELD, Trailing, Assembly

$

$

Not available

7

Simplicity 933738

CAPSCREW, Hex Hd., #10-24 x 1-1/2

$

$

Not available

8

Simplicity 105184

SPACER

$

$

Not available

9

Simplicity 1919326SM

WASHER, Std. 5/16

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 2835048

NUT, Hex, 5/16-18 Lock

$

$

Not available

11

Simplicity 2170157SM

WASHER, Special

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 2108765SM

BOLT, Wheel

$6.49

$

In Stock, Qty 20+

0

13

Simplicity 108701

WHEEL, 10" Steel

$

$

Not available

14

Simplicity 1663587

BRACKET ASSY., L.H.

$

$

Not available

15

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

16

Simplicity 108764

* BOLT, Front Wheel

$

$

Not available

17

Simplicity 1671597

WHEEL, 6" Front

$

$

Not available

18

Simplicity 2108418

SCREW, Special, 3/8-16 x 1-1/4

$

$

Not available

19

Simplicity 1666804SM

SPACER

$9.49

$

In Stock, only 1 left!

0

20

Simplicity 108641

SPRING, Height Adjustment

$

$

Not available

21

Simplicity 108639

ADJUSTER, Height, Front

$

$

Not available

22

Simplicity 2821965

CAPSCREW, Hex 3/8-16 x 3/4

$

$

Not available

23

Simplicity 108640

PLATE, Adjuster

$

$

Not available

24

Simplicity 108697

NUT, Pilot, Twin

$

$

Not available

25

Simplicity 1663586

BRACKET ASSY., R.H.

$

$

Not available

26

Simplicity 1917421SM

NUT-Hex 3/8-16 Jam
(Superseded to 703996)

$5.49

$

In Stock, Qty 7

0

27

Simplicity 1919326SM

WASHER. Std 3/8

$4.49

$

Usually ships in 2-12 days

0
