1690803 - Simplicity Rear-Tine Tiller, 5hp Engine and Drive Group Parts Diagram

Rear-Tine Tiller, 5hp

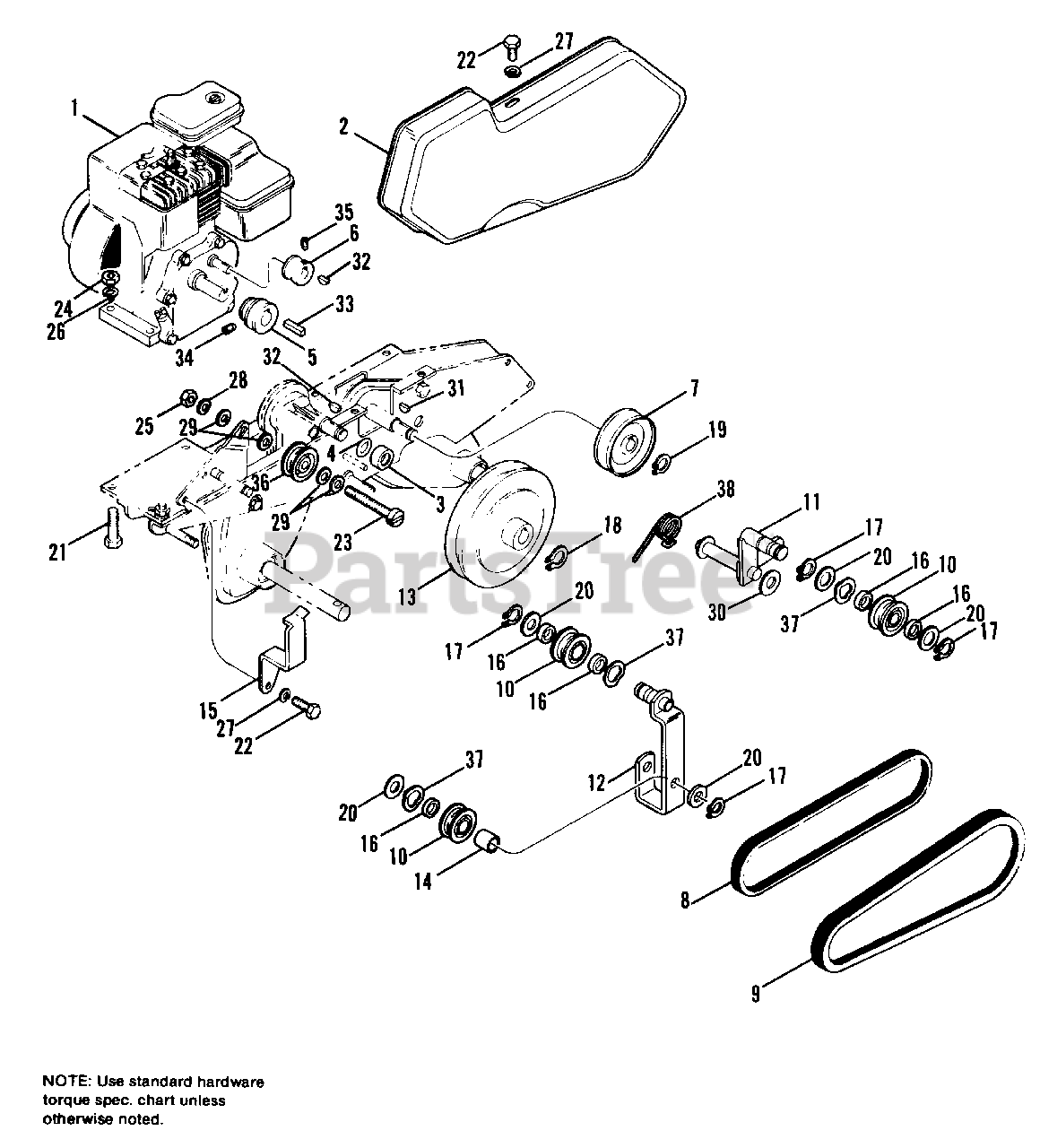

Engine and Drive Group Parts Diagram

  • Title

1

ENGINE-5 H.P. B & S Model 130292 (See engine ID plate for type)

$

$

Not available

2

Simplicity 1671782

BELT GUARD

$

$

Not available

3

Simplicity 1671783

SEAL CUP

$

$

Not available

4

Simplicity 1671784

O-RING

$

$

Not available

5

Simplicity 1671785

ENGINE PULLEY

$

$

Not available

6

Simplicity 1671786

CAMSHAFT PULLEY

$

$

Not available

7

Simplicity 1671787

PULLEY ASSEMBLY-Tines

$

$

Not available

8

Simplicity 1671788

TRACTION DRIVE BELT

$

$

Not available

9

Simplicity 1671789

TINE DRIVE BELT

$

$

Not available

10

Simplicity 1671921

IDLER PULLEY ASSEMBLY

$

$

Not available

11

Simplicity 1671929

ROCKER ASSEMBLY

$

$

Not available

12

Simplicity 1671928

IDLER ARM ASSEMBLY

$

$

Not available

13

Simplicity 1671924

PULLEY ASSEMBLY-Traction

$

$

Not available

14

Simplicity 1671926

SPACER-Idler

$

$

Not available

15

Simplicity 1671923

BELT GUIDE

$

$

Not available

16

Simplicity 1671922

SPACER

$

$

Not available

17

Simplicity 2827103SM

RETAINING RING

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1671925

RETAINING RING

$

$

Not available

19

Simplicity 1671927

RETAINING RING

$

$

Not available

20

Simplicity 1706138SM

WASHER

$2.99

$

Usually ships in 2-12 days

0

21

Simplicity 2821221

CAP SCREW, Hex Hd. 5/16-18 x 1-1/2" Plated

$

$

Not available

22

Simplicity 2821958

CAP SCREW, Hex Hd. 1/4-20 x 1/2" Plated

$

$

Not available

23

Simplicity 936715

MACHINE SCREW, Slotted Rd. Hd. 3/8-16 x 1-3/4" Plated

$

$

Not available

24

Simplicity 1917372SM

NUT, Hex 5/16-18 Plated
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2816950SM

NUT, Hex 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

26

Simplicity 1917356SM

WASHER, Spring Lock 5/16 Plated
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2816964SM

WASHER, Spring Lock 1/4 Plated
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

28

Simplicity 1916965SM

WASHER, Spring Lock 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

29

Simplicity 2156065

WASHER, Flat SAE 3/8 Plated

$

$

Not available

30

Simplicity 2154325

WASHER, Flat SAE 1/2 Plated

$

$

Not available

31

Simplicity 2805123SM

KEY, Woodruff 3/16 x 3/4"
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 7

0

32

Simplicity 2805121SM

KEY, Woodruff 1/8 x 5/8

$2.99

$

In Stock, only 1 left!

0

33

Simplicity 2805850SM

KEY, Square 3/16 x 3/16 x 1"

$2.49

$

Usually ships in 2-12 days

0

34

Simplicity 2828691

SETSCREW, Hex Socket Hd. Cup Pt. 5/16-18 x 5/16" Heat Treated

$

$

Not available

35

Simplicity 1930545SM

SETSCREW, Hex Socket Hd. Cup Pt. 1/4-20 x 1/4" Heat Treated

$

$

Not available

36

Simplicity 1671997

PULLEY-Idler

$

$

Not available

37

Simplicity 1678100SM

WAVE WASHER

$7.99

$

Usually ships in 2-12 days

0

38

Simplicity 1671999

SPRING-Torsion

$

$

Not available
