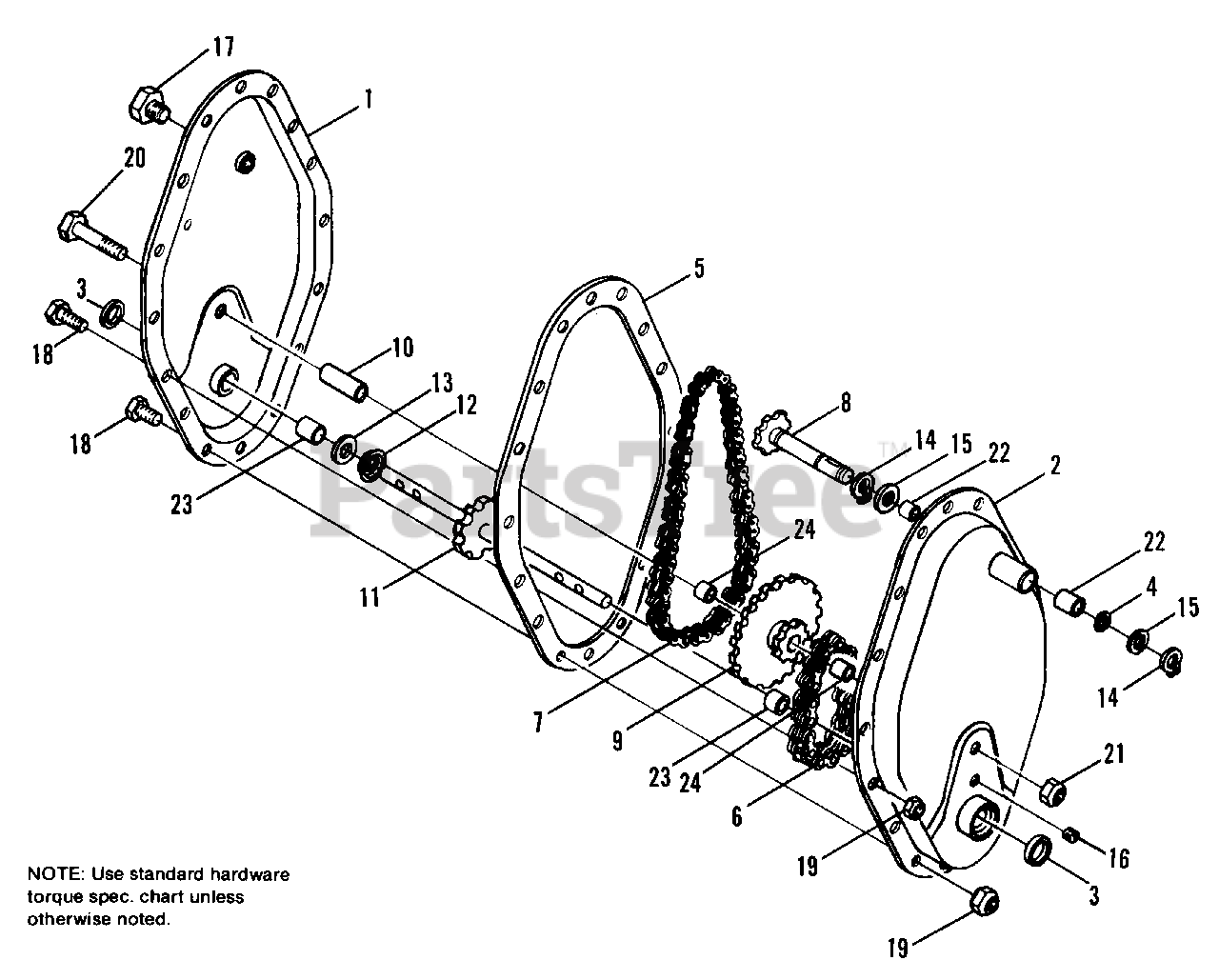

1690804 - Simplicity Rear-Tine Tiller, 5hp Chain Case Parts Diagram

Rear-Tine Tiller, 5hp

Chain Case Parts Diagram

  • Title

1

Simplicity 1673926

CHAIN CASE ASSEMBLY-R.H. w/Bearings

Note: If you are replacing a chain case with welded rather than loose, spacers (Ref. No. 32) also order spacers, part number 1674689.

$

$

Not available

2

Simplicity 1673927

CHAIN CASE ASSEMBLY-L.H. w/Bearings

Note: If you are replacing a chain case with welded rather than loose, spacers (Ref. No. 32) also order spacers, part number 1674689.

$

$

Not available

3

Simplicity 2118118SM

SEAL-Tine Shaft

$10.99

$

In Stock, only 4 left!

0

4

Simplicity 1671847

SEAL-Input Shaft

$

$

Not available

5

Simplicity 1671848

GASKET

$

$

Not available

6

Simplicity 1671850

CHAIN-Lower

$

$

Not available

7

Simplicity 1671853

CHAIN-Upper

$

$

Not available

8

Simplicity 1671854

INPUT SHAFT ASSEMBLY

$

$

Not available

9

Simplicity 1671856

SPROCKET ASSEMBLY-w/Bearings

$

$

Not available

10

Simplicity 1671855

IDLER SLEEVE

$

$

Not available

11

Simplicity 1671857

TINE SHAFT ASSEMBLY

$

$

Not available

12

Simplicity 1671858

SPACER CUP

$

$

Not available

13

Simplicity 1671859

SHIM-Gear

$

$

Not available

14

Simplicity 1671927

RETAINING RING

$

$

Not available

15

Simplicity 1671860

WASHER-Input Shaft

$

$

Not available

16

Simplicity 2860625SM

PIPE PLUG

$1.99

$

Usually ships in 2-12 days

0

17

Simplicity 2824086

CAP SCREW, Hex Hd. 1/2-20 x 3/4

$

$

Not available

18

Simplicity 2821958

CAP SCREW, Hex Hd. 1/4-20 x 1/2 Heat Treated

$

$

Not available

19

Simplicity 2823358

NUT, Hex Lock 1/4-20 Plated

$

$

Not available

20

Simplicity 2822130

CAP SCREW, Hex Hd. 3/8-16 x 2-1/4" Heat Treated

$

$

Not available

21

Simplicity 1930645SM

HEX NUT, Cone Lock 3/8-16 Plated
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1671852

BEARING-Input Shaft

$

$

Not available

23

Simplicity 1671849

BEARING-Axle

$

$

Not available

24

Simplicity 1671851

BEARING

$

$

Not available
