1690821 - Simplicity Rear Grass Catcher for 36" Mower Grass Catcher - Cover, Bag & Support Group Parts Diagram

Rear Grass Catcher for 36" Mower

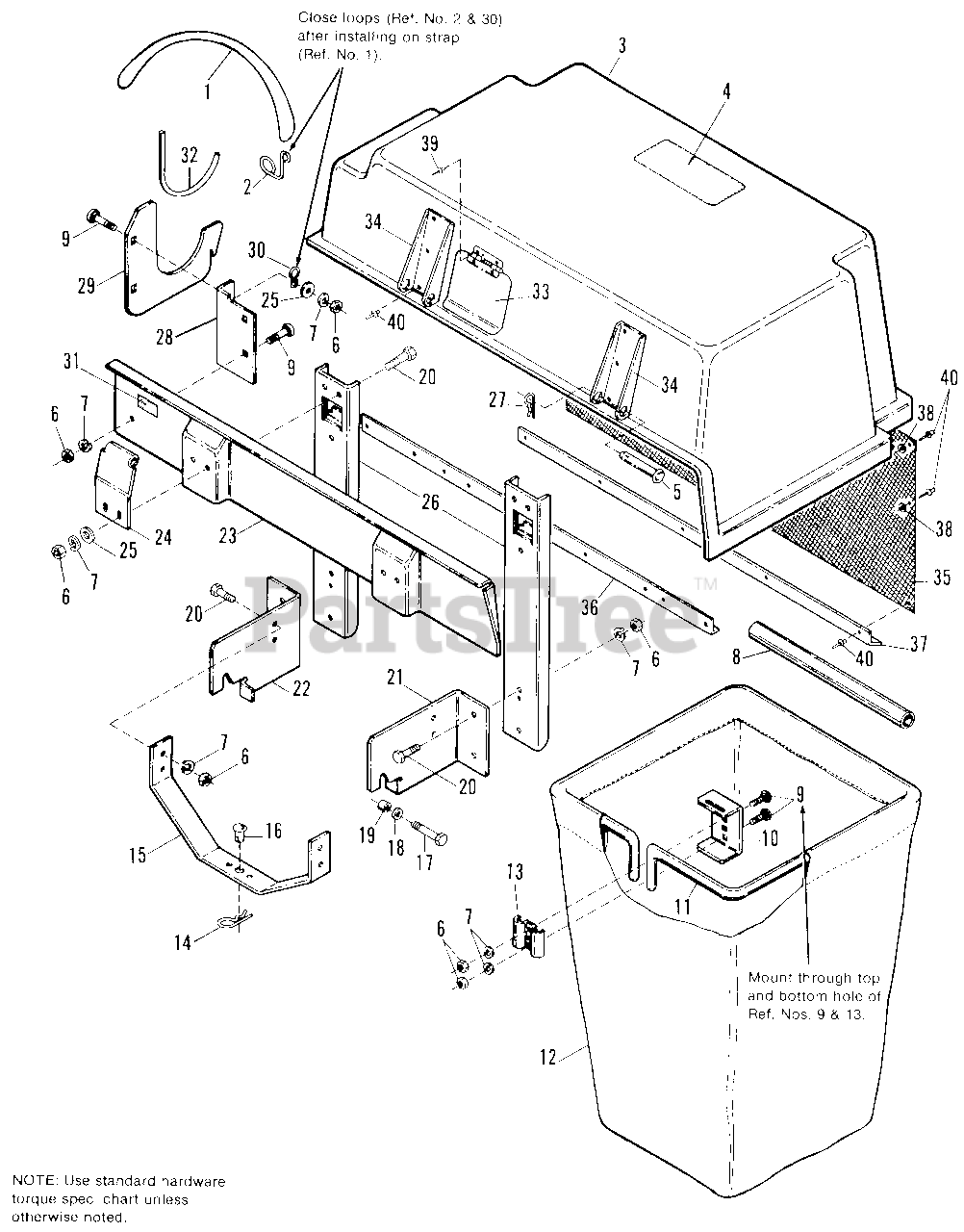

Grass Catcher - Cover, Bag & Support Group Parts Diagram

  • Title

1

Simplicity 1665872SM

STRAP

$11.99

$

In Stock, only 2 left!

0

2

Simplicity 1672688SM

HOOK, Strap

$18.99

$

Usually ships in 2-12 days

0

3

Simplicity 1675293SM

COVER ASSY. (Incl. Ref. Nos. 4, 33 & 34)

$

$

Not available

4

Simplicity 1676923SM

DECAL, Warning

$44.99

$

Usually ships in 2-12 days

0

5

Simplicity 1672344SM

PIN

$6.49

$

In Stock, Qty 8

0

6

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1675707SM

TUBE

$6.49

$

In Stock, Qty 5

0

9

Simplicity 1931334SM

BOLT, Carriage, 5/16-18 x 7/8 (Qty. 9 Deluxe only)
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

10

Simplicity 1672333SM

HANGER

$17.99

$

Usually ships in 2-12 days

0

11

Simplicity 1673602SM

HOOP, Bag

$28.99

$

Usually ships in 2-12 days

0

12

Simplicity 1672346SM

BAG, Grass

$96.99

$

Usually ships in 2-12 days

0

13

Simplicity 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

14

Simplicity 2106788

CLIP, Hairpin

$

$

Not available

15

Simplicity 1672328

BRACE, Lower

$

$

Not available

16

Simplicity 1672365SM

PIN, Pivot

$33.99

$

Usually ships in 2-12 days

0

17

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

20

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1672330

SUPPORT, L.H.

$

$

Not available

22

Simplicity 1672331

SUPPORT, R.H.

$

$

Not available

23

Simplicity 1672341

PLATE, Support, Cover

$

$

Not available

24

Simplicity 1672345

PLATE, Hinge

$

$

Not available

25

Simplicity 1919326SM

WASHER, 3/8 x 7/8

$4.49

$

In Stock, Qty 18

0

26

Simplicity 1672329

BRACE, Upper

$

$

Not available

27

Simplicity 2106787

CLIP, Hairpin

$

$

Not available

28

Simplicity 1672325

MOUNT, Saddle Bracket

$

$

Not available

29

Simplicity 1672335

BRACKET, Saddle Assy.

$

$

Not available

30

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

31

Simplicity 1676924

DECAL

$

$

Not available

32

Simplicity 1673874SM

TRIM

$6.99

$

Usually ships in 2-12 days

0

33

Simplicity 1673201

DOOR & HINGE

$

$

Not available

34

Simplicity 1672324

HINGE, Bracket

$

$

Not available

35

Simplicity 1672340

SCREEN

$

$

Not available

36

Simplicity 1672323

BRACKET, Front Cover

$

$

Not available

37

Simplicity 1672322SM

BRACKET, Rear Cover

$18.99

$

Usually ships in 2-12 days

0

38

Simplicity 2810531

WASHER, Rivet

$

$

Not available

39

Simplicity 1673450SM

RIVET, Pop

$3.49

$

In Stock, Qty 5

0

40

Simplicity 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0
