1690822 - Simplicity Deluxe Grass Catcher for 30" Mower Deluxe Grass Catcher - Cover, Bag & Support Group Parts Diagram

Deluxe Grass Catcher for 30" Mower

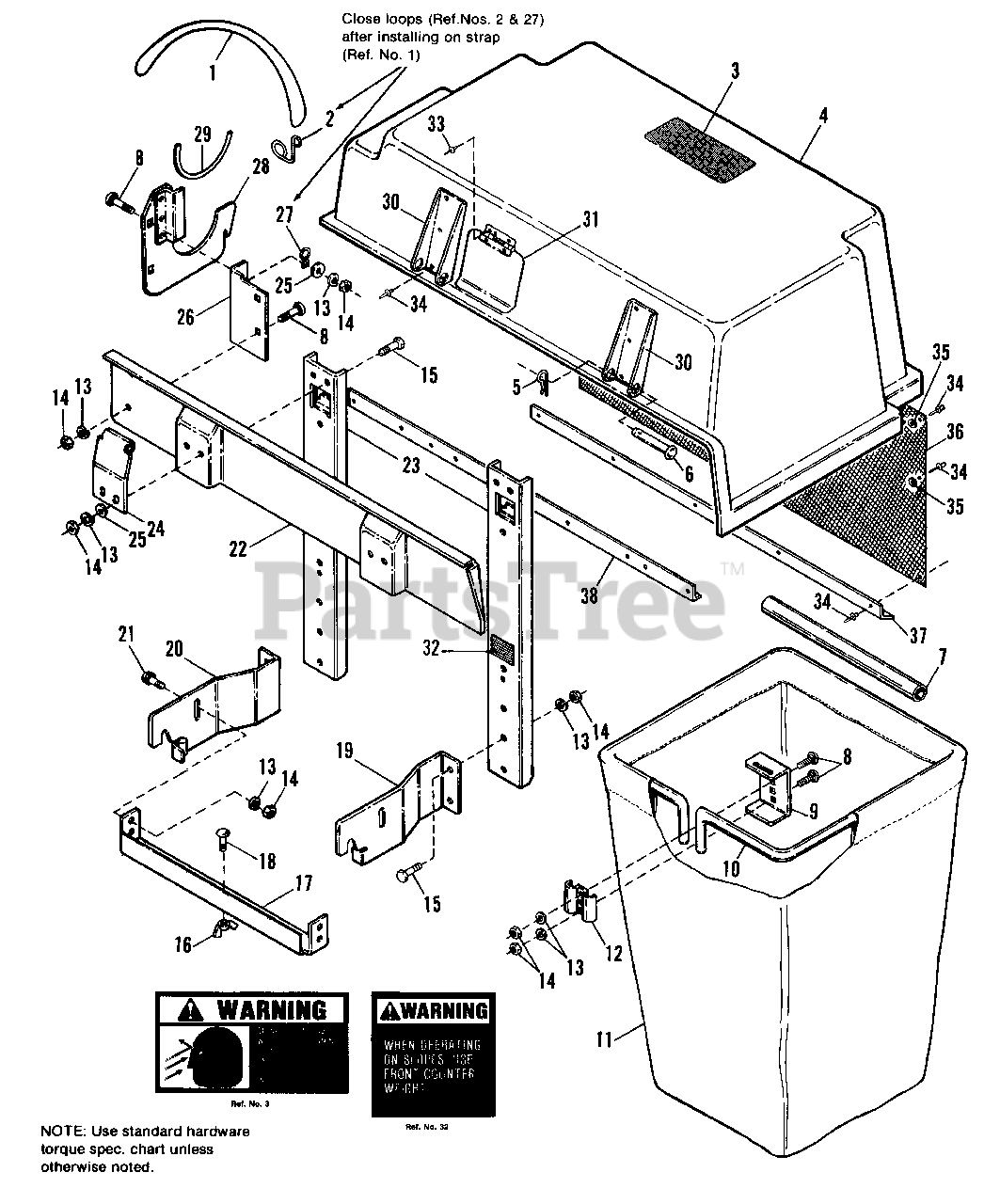

Deluxe Grass Catcher - Cover, Bag & Support Group Parts Diagram

  • Title

1

Simplicity 1665872SM

STRAP

$11.99

$

In Stock, only 2 left!

0

2

Simplicity 1672688SM

HOOK, Strap

$18.99

$

Usually ships in 2-12 days

0

3

Simplicity 1676923SM

DECAL, Warning

$44.99

$

Usually ships in 2-12 days

0

4

Simplicity 1675293SM

COVER ASSY.

Note: (Incl. Ref. Nos. 3, 30, 32 & 33 thru 38)

$

$

Not available

5

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1672344SM

PIN

$6.49

$

In Stock, Qty 8

0

7

Simplicity 1675707SM

TUBE, Clip

$6.49

$

In Stock, only 4 left!

0

8

Simplicity 1931334SM

BOLT, Carriage, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

9

Simplicity 1672333SM

HANGER

$17.99

$

Usually ships in 2-12 days

0

10

Simplicity 1673602SM

HOOP, Bag

$28.99

$

Usually ships in 2-12 days

0

11

Simplicity 1672346SM

BAG, Grass

$96.99

$

Usually ships in 2-12 days

0

12

Simplicity 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1933126SM

NUT, Winglock, 5/16-18

$5.49

$

In Stock, Qty 9

0

17

Simplicity 1672336

BRACE, Lower

$

$

Not available

18

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

19

Simplicity 1677475

SUPPORT, L.H.

$

$

Not available

20

Simplicity 1677476

SUPPORT, R.H.

$

$

Not available

21

Simplicity 1930591SM

SCREW, Hex, Whizlock, Flange, 5/16 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 12

0

22

Simplicity 1672341

SUPPORT PLATE, Cover

$

$

Not available

23

Simplicity 1672337

BRACE, Upper

$

$

Not available

24

Simplicity 1672345

HINGE, Plate

$

$

Not available

25

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 18

0

26

Simplicity 1672325

MOUNT, Saddle Bracket

$

$

Not available

27

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

28

Simplicity 1672335

BRACKET ASSY., Saddle

$

$

Not available

29

Simplicity 1673874SM

TRIM

$6.99

$

Usually ships in 2-12 days

0

30

Simplicity 1672324

BRACKETS, Hinge

$

$

Not available

31

Simplicity 1673201

DOOR (with hinge)

$

$

Not available

32

Simplicity 1676924

DECAL (Catcher Frame)

$

$

Not available

33

Simplicity 1673450SM

RIVET, Pop

$3.49

$

In Stock, Qty 5

0

34

Simplicity 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

35

Simplicity 2810531

WASHER, Rivet

$

$

Not available

36

Simplicity 1672340

SCREEN

$

$

Not available

37

Simplicity 1672322SM

BRACKET

$18.99

$

Usually ships in 2-12 days

0

38

Simplicity 1672323

BRACKET, Front Cover

$

$

Not available
