1690982 - Simplicity 42" Snow Thrower Attachment 42" Snowthrower, Body & Rotor Group Parts Diagram

42" Snow Thrower Attachment

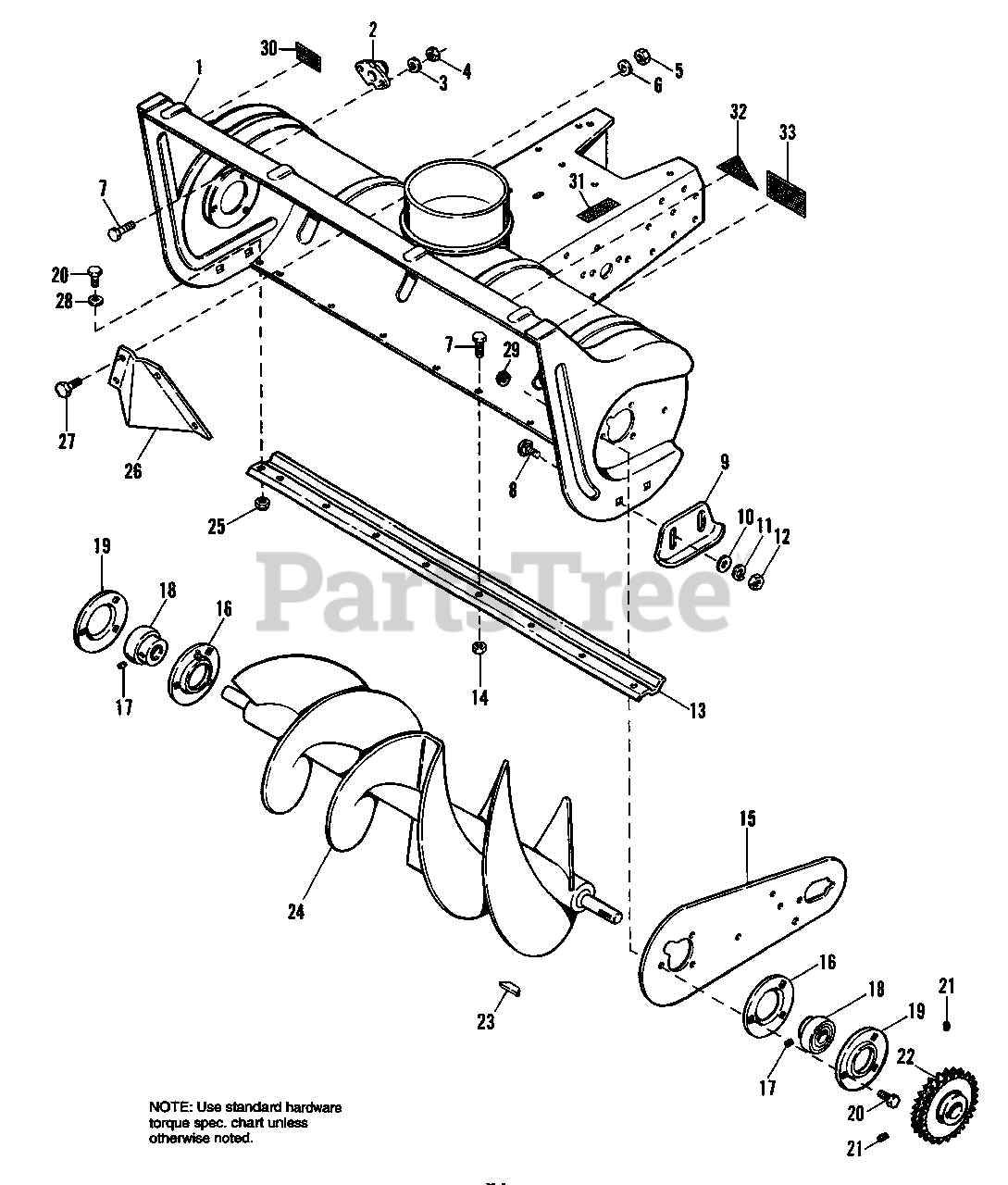

42" Snowthrower, Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 1685298SM

BODY & FRAME ASSY.

$

$

Not available

2

Simplicity 2171388SM

BEARING, Body Mounted

$11.99

$

In Stock, only 1 left!

0

3

Simplicity 2816964SM

LOCKWASHER, 1/4 Std.
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

5

Simplicity 1017372

NUT, Hex, 5/16-18

$

$

Not available

6

Simplicity 1017356

LOCKWASHER, Hex Hd., 1/4-20 x 5/8

$

$

Not available

7

Simplicity 1921959SM

CAPSCREW, Hex Hd., 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 5/8

$

$

Not available

9

Simplicity 2177434C

SKID SHOE

$

$

Not available

10

Simplicity 1924940SM

WASHER, 3/8 Std.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

WASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

12

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

13

Simplicity 2106746ASM

SCRAPER BAR

$158.99

$

In Stock, only 1 left!

0

14

Simplicity 1923358SM

NUT, Hex, Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1676632A

RATE, Side
(Superseded to 1676632ASM)

$44.99

$

Usually ships in 2-12 days

0

16

Simplicity 2172279ASM

FLANGE, Bearing

$14.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960110SM

SETSCREW, Hex Hd., 1/4-28 x 1/2

$7.99

$

In Stock, only 3 left!

0

18

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

19

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

20

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 X 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

21

Simplicity 1677029SM

SETSCREW, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 1676721SM

DOUBLE SPROCKET ASSY., 29 Teeth

$

$

Not available

23

Simplicity 2151040SM

KEY

$9.49

$

In Stock, only 2 left!

0

24

Simplicity 2106748

ROTOR ASSY.

$

$

Not available

25

Simplicity 1923362SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

26

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

27

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 50
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 1919326SM

WASHER, 1/4 Std.

$4.49

$

In Stock, Qty 18

0

29

Simplicity 1935048SM

NUT, Flangelock, 2 way, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1716531SM

DECAL, Caution

$19.99

$

In Stock, only 1 left!

0

31

DECAL, I.D. Plate

$

$

Not available

32

DECAL, OPEI

$

$

Not available

33

Simplicity 1716532SM

Danger, Auger

$12.99

$

Usually ships in 2-12 days

0
