1690982 - Simplicity 42" Snow Thrower Attachment 42" Snowthrower, Hitch Group Parts Diagram

42" Snow Thrower Attachment

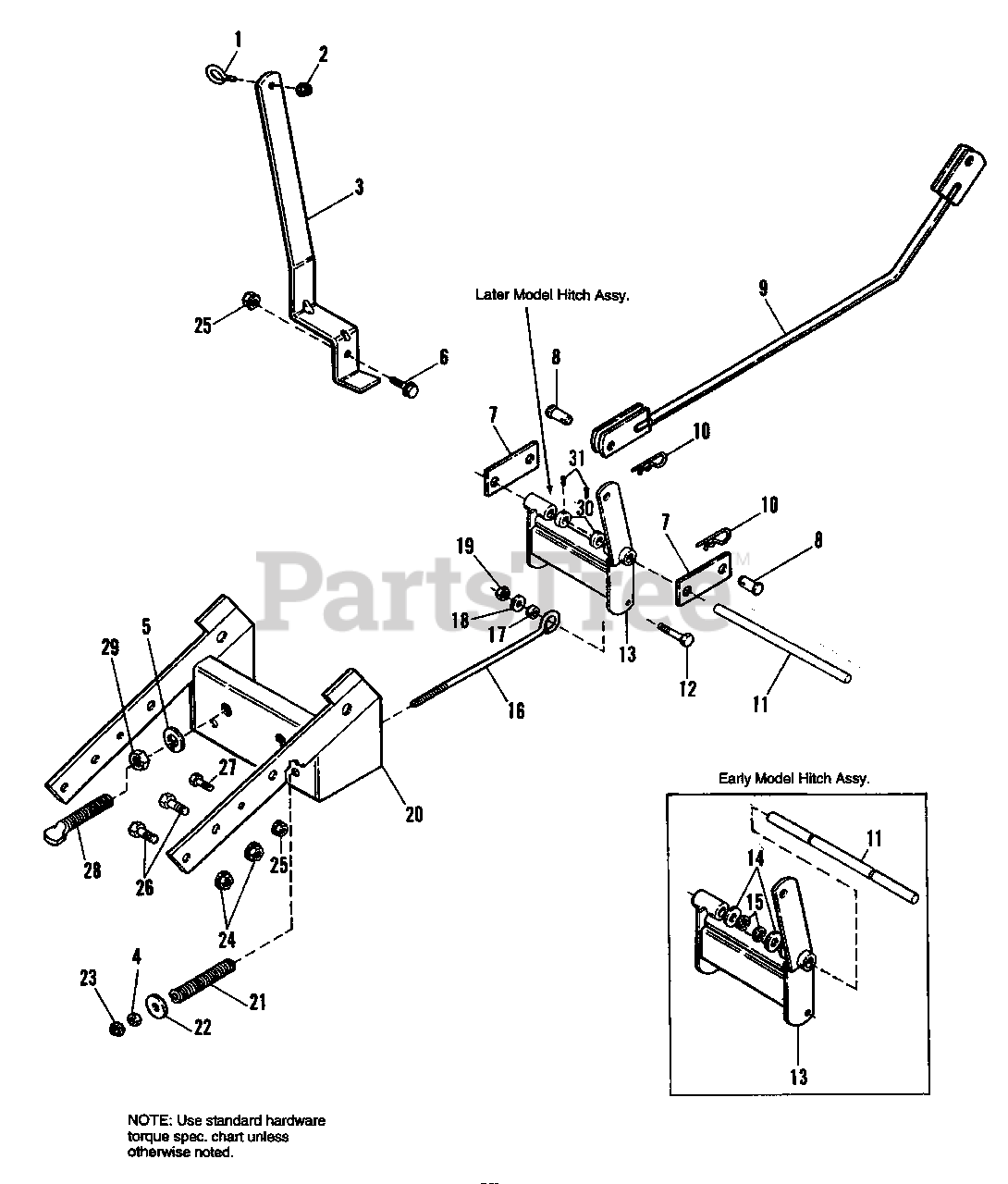

42" Snowthrower, Hitch Group Parts Diagram

  • Title

1

Simplicity 2172162SM

EYEBOLT

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 1923358SM

NUT, Hex, Lock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1676912SM

SUPPORT, Control Rod
(Superseded to 1676912ASM)

$23.99

$

Usually ships in 2-12 days

0

4

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

5

Simplicity 1919332SM

LOCKWASHER, 3/4 Std.

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1928727SM

SCREW, Hex, Flange Whizlock, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1675525SM

LINK

$

$

Not available

8

Simplicity 1960038SM

PIN, Clevis

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 1675390ASM

LIFT ROD ASSY.

$

$

Not available

10

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, Qty 5

0

11

Simplicity 1685484SM

SHAFT, Inner

Note: Early Models

$80.99

$

Usually ships in 2-12 days

0

11

Simplicity 1708999SM

SHAFT, Inner

Note: Later Models

$38.99

$

Usually ships in 2-12 days

0

12

Simplicity 1922664SM

CAPSCREW, Hex Hd., 5/8-11 x 2

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1675502SM

HITCH ASSY.

$

$

Not available

14

Simplicity 1960020SM

WASHER, Plain, 41/64 x 1-1/4 x 1/16

Note: Early Models

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 2827793SM

RING, Retaining "E" 5/8
(Superseded to 703977)

Note: Early Models

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1675523SM

EYEBOLT

$19.99

$

Usually ships in 2-12 days

0

17

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 2833757

WASHER, Plain, 41/64 x 1-3/4 x 1/8

$

$

Not available

19

Simplicity 1923353SM

NUT, Hex, Centerlock, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

20

Simplicity 1703635SM

HITCH ASSY., Blower
(Superseded to 1703635ASM)

$216.99

$

Usually ships in 2-12 days

0

21

Simplicity 1675524SM

SPRING, Compression

$20.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960071SM

WASHER, 13/32 x 1-1/4 x 1/4

$8.49

$

In Stock, only 2 left!

0

23

Simplicity 1917421SM

NUT, Jam, Hex, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

24

Simplicity 1935041SM

NUT, Hex, Flange, Whizlock, 7/16-14

$1.99

$

Usually ships in 2-12 days

0

25

Simplicity 1928352SM

NUT, Hex, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

26

Simplicity 1920676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$5.49

$

In Stock, Qty 8

0

27

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

28

Simplicity 1676959SM

STUD

$25.99

$

Usually ships in 2-12 days

0

29

Simplicity 1913160SM

NUT, Hex, 3/4-10

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 1729258SM

SET-COLLAR
(Superseded to 5010477YP)

Note: Later Models

$8.99

$

Usually ships in 2-12 days

0

31

Simplicity 1928721SM

SET-SCREW, Sq. Hd. cup point, 5/16-18 x 1/2

Note: Later Models

$4.99

$

In Stock, Qty 13

0
