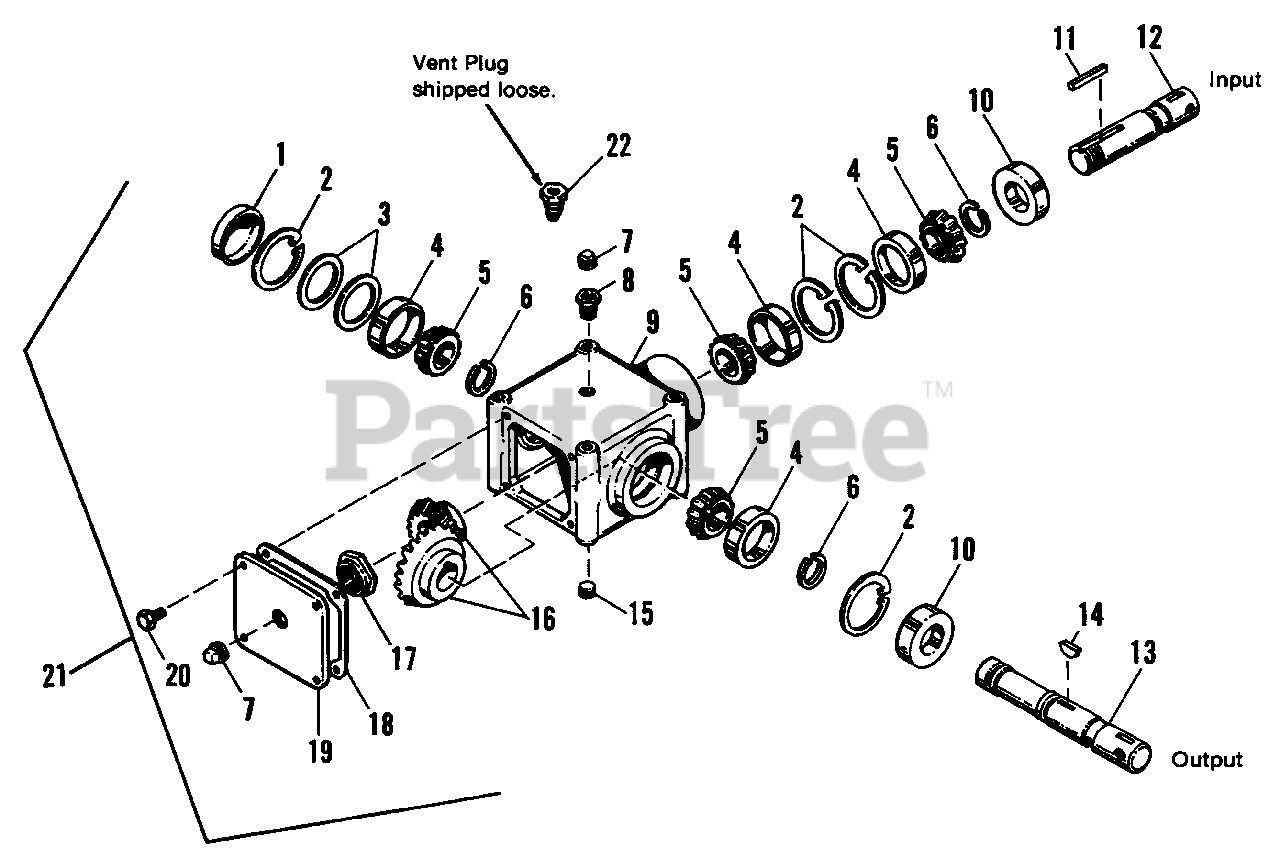

1690982 - Simplicity 42" Snow Thrower Attachment Right Angle Gear Box - Durst Parts Diagram

42" Snow Thrower Attachment

Right Angle Gear Box - Durst Parts Diagram

  • Title

1

Simplicity 2173593SM

CAP

$54.99

$

Usually ships in 2-12 days

0

2

Simplicity 927700

SNAP RING

$

$

Not available

3

Simplicity 2173598SM

SHIM, Bearing

Note: (Use as needed.)

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 2170836SM

CUP, Bearing
(Superseded to 5020883SM)

$9.49

$

In Stock, only 3 left!

0

5

Simplicity 2170835SM

BEARING, Cone

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 2827320SM

SNAP RING

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 2820129

PLUG, 1/8-27 NPT

$

$

Not available

8

Simplicity 1678933SM

REDUCER BUSHING, 1/8-3/8

$5.49

$

Usually ships in 2-12 days

0

9

Simplicity 1678926SM

HOUSING

$

$

Not available

10

Simplicity 1678912SM

SEAL

$

$

Not available

11

Simplicity 2154096SM

KEY, Sq., 1/4 x 1/4 x 29/32 Hard

$6.99

$

In Stock, only 2 left!

0

12

Simplicity 1678929SM

SHAFT, Input

$626.99

$

Usually ships in 2-12 days

0

13

Simplicity 1717547SM

SHAFT, Output

$670.99

$

Usually ships in 2-12 days

0

14

Simplicity 2822138SM

KEY, Woodruff "A" (807) Hard

$9.99

$

In Stock, only 1 left!

0

15

Simplicity 930674

PLUG, Drain, 3/8-18 NPT

$

$

Not available

16

Simplicity 1717547SM

BEVEL GEAR, 17 Teeth

$670.99

$

Usually ships in 2-12 days

0

17

Simplicity 1678928SM

STAKE NUT, 1-18

$

$

Not available

18

Simplicity 2173596SM

GASKET, Cover

$12.99

$

Usually ships in 2-12 days

0

19

Simplicity 1717069SM

COVER

$797.99

$

Usually ships in 2-12 days

0

20

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 5/8
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

21

Simplicity 1717547SM

R. ANGLE GEAR CASE ASSY.

$670.99

$

Usually ships in 2-12 days

0

22

Simplicity 1678690SM

VENT PLUG, 1/8-27 NPT

$13.99

$

Usually ships in 2-12 days

0
