1690990 - Simplicity Vacuum Collector Vacuum Collector, Blower Housing & Hitch Ext. Parts Diagram

Vacuum Collector

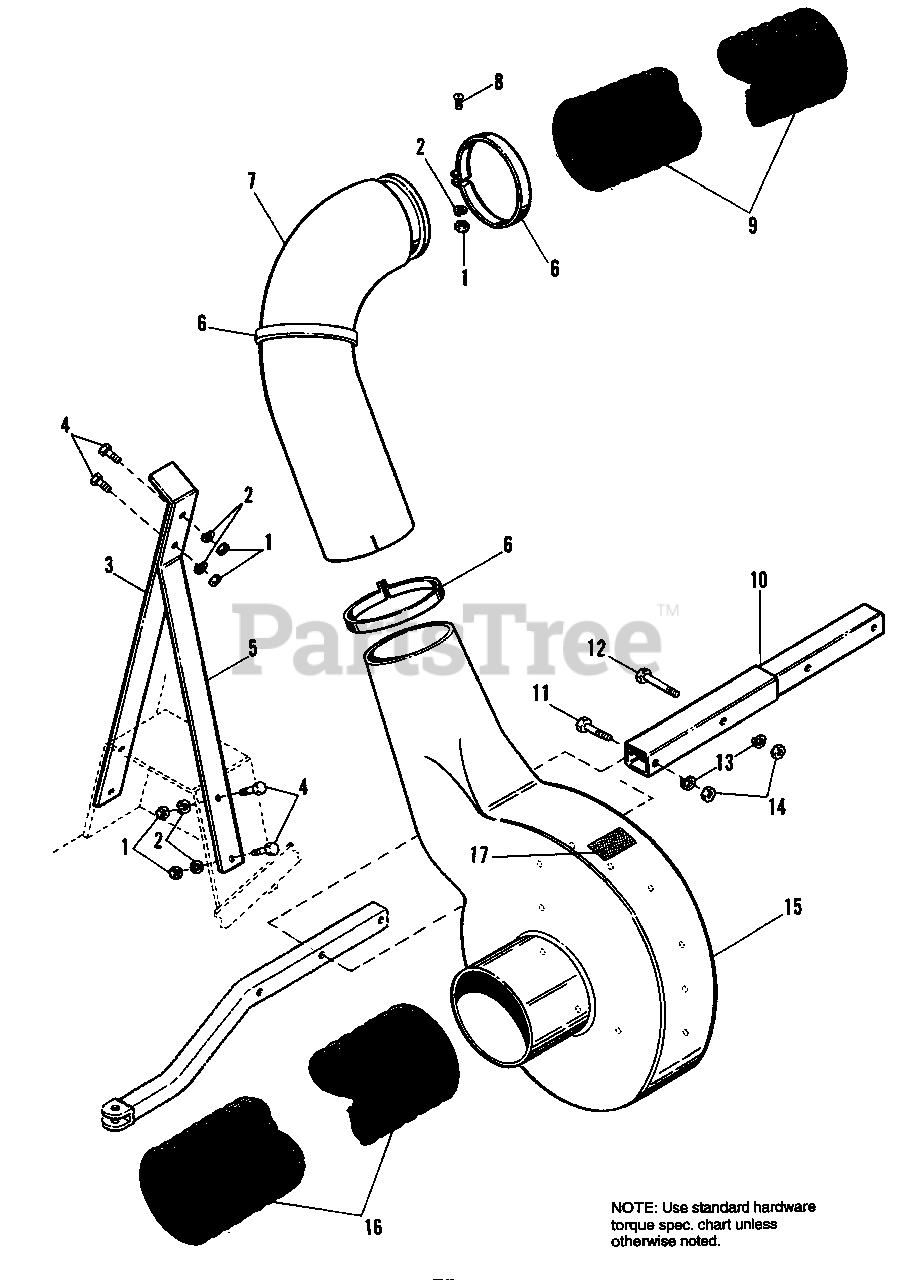

Vacuum Collector, Blower Housing & Hitch Ext. Parts Diagram

  • Title

1

Simplicity 1916622SM

NUT, Hex, 1/4-20 Std.
(Superseded to 703127)

$3.49

$

In Stock, Qty 13

0

2

Simplicity 1916964SM

WASHER, Lock, 1/4 Std.
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1677144

SUPPORT, R.H., Outlet Tube

$

$

Not available

4

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, only 3 left!

0

5

Simplicity 1677146

SUPPORT, L.H., Outlet Tube

$

$

Not available

6

Simplicity 2123067

CLAMP, Hose, 6" Dia.

$

$

Not available

7

Simplicity 1675511SM

ELBOW, Blower Housing

$

$

Not available

8

Simplicity 1928866

SCREW, Mach. Rd. Hd., 1/4-20 x 3

$

$

Not available

9

Simplicity 1678490SM

HOSE, Exhaust, 6" Dia. x 44" Long

$216.99

$

Usually ships in 2-12 days

0

10

Simplicity 1677446

HITCH EXTENSION ASSY.

$

$

Not available

11

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 UNC x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 5

0

12

Simplicity 1921972SM

CAPSCREW, Hex Hd., 3/8-16 UNC x 2-1/2
(Superseded to 84007037)

$2.99

$

In Stock, Qty 19

0

13

Simplicity 1916965SM

WASHER, Lock, 3/8 Std.
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1916950SM

NUT, Hex, 3/8-16 UNC
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1685350SM

HOUSING, Fan

$478.99

$

Usually ships in 2-12 days

0

16

Simplicity 1657189SM

HOSE, Inlet, 7" Dia. x 44" Long

$376.99

$

Usually ships in 2-12 days

0

17

Simplicity 177084

DECAL, Caution

$

$

Not available
