1691000 - Simplicity 46" Dozer Blade 46" Dozer Blade (Hitch Group) Parts Diagram

46" Dozer Blade

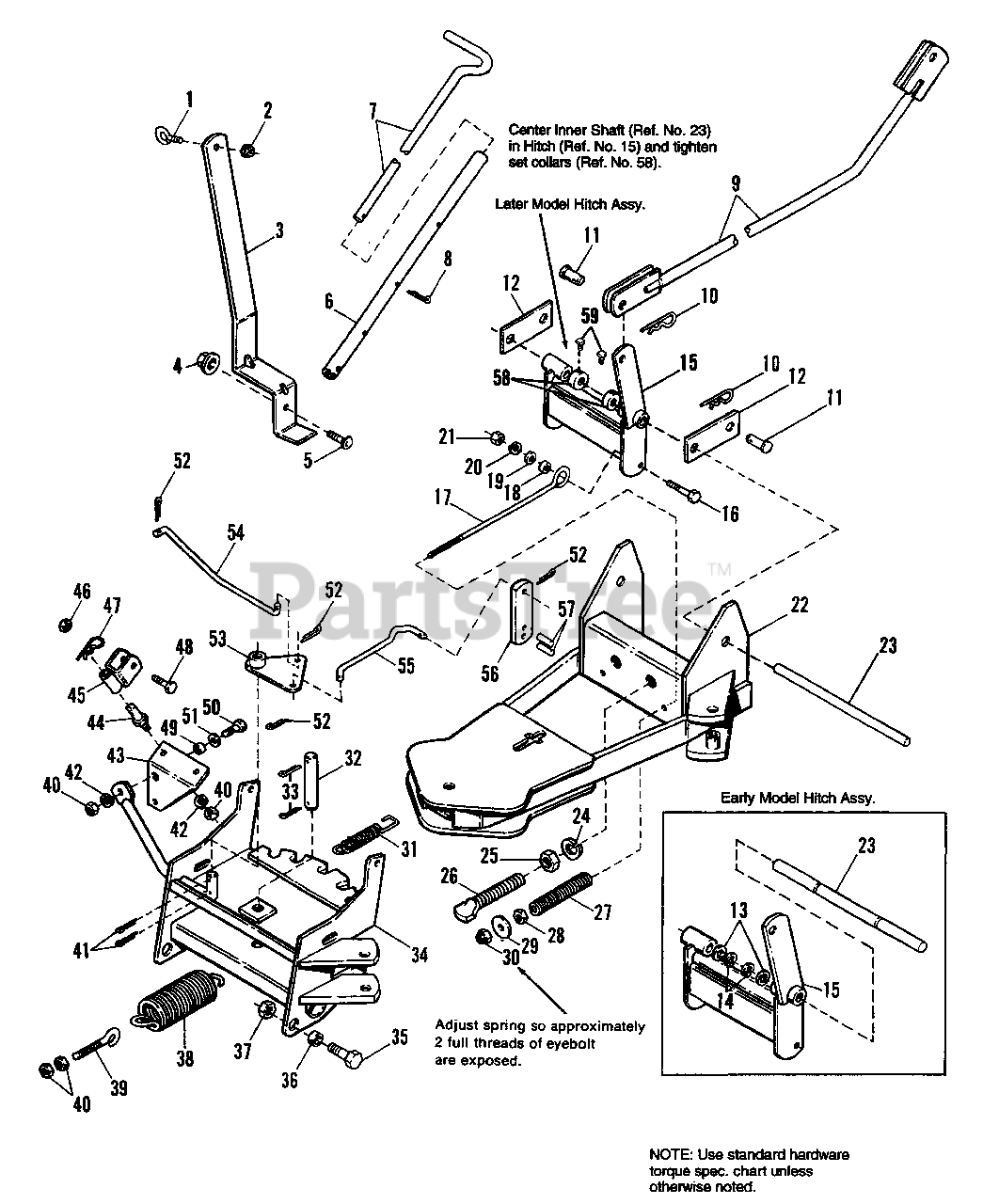

46" Dozer Blade (Hitch Group) Parts Diagram

  • Title

1

Simplicity 2172162SM

EYEBOLT

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 1923358SM

NUT, Hex Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1676912SM

SUPPORT, Control Rod
(Superseded to 1676912ASM)

$23.99

$

Usually ships in 2-12 days

0

4

Simplicity 1928352SM

NUT, Hex, Flange Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 10

0

5

Simplicity 1928727SM

BOLT, Carriage, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1679063SM

SLEEVE, Connector
(Superseded to 1679063ASM)

$67.99

$

Usually ships in 2-12 days

0

7

Simplicity 1676880SM

HANDLE, Pivot

$207.99

$

Usually ships in 2-12 days

0

8

Simplicity 1918452SM

PIN, Cotter, 1/8 x 1, Plt.
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 1675390ASM

LIFT ROD ASSY.

$

$

Not available

10

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, only 3 left!

0

11

Simplicity 1960038SM

PIN, Clevis

$7.49

$

Usually ships in 2-12 days

0

12

Simplicity 1675525SM

LINK

$

$

Not available

13

Simplicity 1960020SM

WASHER, Plain, 41/64 x 1-1/4 x 1/16

Note: Used on Early Models

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 2827793SM

E-RING, Retaining, 5/8
(Superseded to 703977)

Note: Used on Early Models

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1675502SM

HITCH ASSY.

$

$

Not available

16

Simplicity 1922664SM

CAPSCREW, Hex Hd., 5/8-11 x 2

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1679055SM

EYEBOLT

$8.99

$

Usually ships in 2-12 days

0

18

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

19

Simplicity 2833757

WASHER, Plain, 41/64 x 1-3/4 x 1/8

$

$

Not available

20

Simplicity 1917373SM

LOCKWASHER, 5/8 Std.

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1923353SM

NUT, Hex, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

22

Simplicity 1700664SM

HITCH ASSY, Dozer

$558.99

$

Usually ships in 2-12 days

0

23

Simplicity 1685484SM

SHAFT, Inner, Hitch

Note: Used on Early Models

$80.99

$

Usually ships in 2-12 days

0

Simplicity 1708999SM

SHAFT, Inner, Hitch

Note: Used on Later Models

$38.99

$

Usually ships in 2-12 days

0

24

Simplicity 1919332SM

LOCKWASHER, 3/4 Std.

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 1913160SM

NUT, Hex, 3/4-10

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 1676959SM

STUD, 3/4-10 UNC-2A

$25.99

$

Usually ships in 2-12 days

0

27

Simplicity 1675524SM

SPRING, Compression

$20.99

$

Usually ships in 2-12 days

0

28

Simplicity 1917421SM

NUT, Jam, Hex, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

29

Simplicity 1960071SM

WASHER, 13/32 x 1-1/4 x 1/4

$8.49

$

In Stock, only 2 left!

0

30

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

31

Simplicity 2107135SM

SPRING

$32.99

$

Usually ships in 2-12 days

0

32

Simplicity 2174066SM

PIN, Pivot

$44.99

$

Usually ships in 2-12 days

0

33

Simplicity 1919314SM

Pin, Cotter, 3/16 x 1-1/4

$3.49

$

In Stock, Qty 7

0

34

Simplicity 1700665SM

FRAME ASSY., Pivot

$

$

Not available

35

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 3 left!

0

36

Simplicity 2105051

SPACER

$

$

Not available

37

Simplicity 1922134SM

NUT, Hex, Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

38

Simplicity 2101126SM

SPRING, Tension

$46.99

$

In Stock, only 1 left!

0

39

Simplicity 2107121SM

EYEBOLT

$14.99

$

Usually ships in 2-12 days

0

40

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 1918452SM

PIN, Cotter, 1/4 x 1
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

42

Simplicity 1917356SM

LOCKWASHER, 5/16 Std.
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

43

Simplicity 1676988SM

ARM, Pivot

$13.99

$

Usually ships in 2-12 days

0

44

Simplicity 2107120SM

STUD

$38.99

$

Usually ships in 2-12 days

0

45

Simplicity 2106131SM

FORK ASSY.

$75.99

$

In Stock, only 1 left!

0

46

Simplicity 1923362SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 11

0

47

Simplicity 1960074SM

CLIP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

48

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

49

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

50

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

51

Simplicity 1919326SM

WASHER, 5/16 Std.

$4.49

$

In Stock, Qty 18

0

52

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

53

Simplicity 2107116SM

PLATE ASSY., Pivot

$

$

Not available

54

Simplicity 2107118SM

ROD, Pivot

$9.99

$

Usually ships in 2-12 days

0

55

Simplicity 2107136SM

ROD, Latch

$53.99

$

Usually ships in 2-12 days

0

56

Simplicity 2174073SM

LATCH

$42.99

$

Usually ships in 2-12 days

0

57

Simplicity 2821469SM

PIN, Spring, 7/32 x 1

$3.49

$

Usually ships in 2-12 days

0

58

Simplicity 1729258SM

SET COLLAR
(Superseded to 5010477YP)

Note: Used on Later Models.

$8.99

$

Usually ships in 2-12 days

0

59

Simplicity 1928721SM

SET SCREW, Sq. Hd. cup point, 5/.16-18 x 1/2

Note: Used on Later Models.

$4.99

$

In Stock, Qty 13

0
