1691021 - Simplicity Power Steering Kit Power Steering Kit Parts Diagram

Power Steering Kit

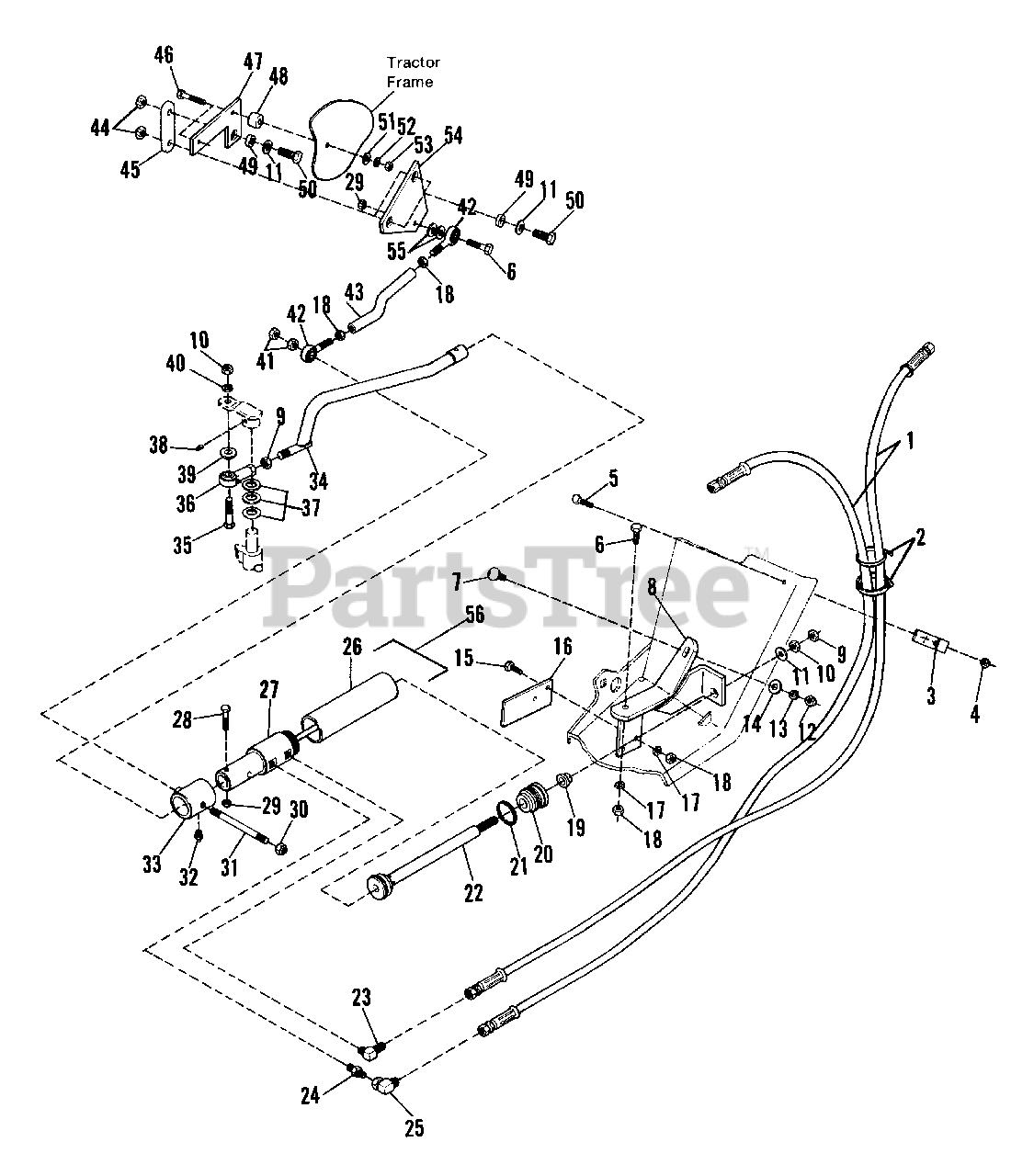

Power Steering Kit Parts Diagram

  • Title

1

Simplicity 1676688

HOSE, Hydraulic

$

$

Not available

2

Simplicity 1701011SM

TIE, Plastic

$5.49

$

In Stock, only 2 left!

0

3

Simplicity 1676703SM

CLAMP, Hose

$

$

Not available

4

Simplicity 1923358SM

LOCKNUT, 1/4 x 20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 2808297

BOLT, 1/4-20 x 1-1/4

$

$

Not available

6

Simplicity 1700875

BOLT, 3/8-14 x 1-1/4

$

$

Not available

7

Simplicity 1921212SM

BOLT, 7/16-14 x 1-1/2

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 1676689SM

BRACKET, Footrest

$109.99

$

Usually ships in 2-12 days

0

9

Simplicity 1919262SM

NUT, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

10

Simplicity 919423

NUT, 1/2-20

$

$

Not available

11

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1918213SM

NUT, 7/16-13

$4.99

$

In Stock, only 2 left!

0

13

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1925125SM

WASHER, 7/16

$6.49

$

In Stock, only 2 left!

0

15

Simplicity 2827008SM

BOLT, 3/8 x 24 x 1

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 1676706SM

STOP, Mower (42" mower only)

$29.99

$

Usually ships in 2-12 days

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

18

Simplicity 1916602

NUT, 3/8 x 24

$

$

Not available

19

Simplicity 1676705SM

BUSHING, Flanged

$34.99

$

Usually ships in 2-12 days

0

20

Simplicity 1676850

GLAND ASSY.

Note: Service parts for valve.

$

$

Not available

21

Simplicity 1676851SM

LOCKWIRE

Note: Service parts for valve.

$12.99

$

Usually ships in 2-12 days

0

22

Simplicity 1676849

PISTON ROD ASSY.

Note: Service parts for valve.

$

$

Not available

23

Simplicity 1676693SM

FITTING, Elbow

$59.99

$

Usually ships in 2-12 days

0

24

Simplicity 1676695SM

ADAPTOR

$35.99

$

Usually ships in 2-12 days

0

25

Simplicity 1676694

FITTING, Elbow

$

$

Not available

26

Simplicity 1676852SM

TUBE, Cylinder

Note: Service parts for valve.

$233.99

$

Usually ships in 2-12 days

0

27

Simplicity 1676847SM

VALVE ASSY.

Note: Service parts for valve.

$1652.99

$

Usually ships in 2-12 days

0

28

Simplicity 927322

BOLT, 3/8 x 2

$

$

Not available

29

Simplicity 1668927SM

NUT, Self-locking, 3/8-24

$6.49

$

In Stock, only 3 left!

0

30

Simplicity 1930645SM

NUT, Nyloc
(Superseded to 703893)

Note: Service parts for valve.

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 1676844SM

STUD, Actuator

Note: Service parts for valve.

$50.99

$

Usually ships in 2-12 days

0

32

Simplicity 1676848SM

FITTING, Grease

Note: Service parts for valve.

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 1676845

SLEEVE, Actuator

Note: Service parts for valve.

$

$

Not available

34

Simplicity 1676690

CYLINDER EXTENSION ASSEMBLY

$

$

Not available

35

Simplicity 1676708SM

BOLT, 1/2-20 x 1-3/4

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1702779SM

BALL JOINT, Female, 1/2

$28.99

$

In Stock, only 2 left!

0

37

Simplicity 1960114SM

WASHER, Special
(Superseded to 703151)

$3.49

$

In Stock, Qty 17

0

38

Simplicity 1930544SM

SETSCREW, 5/16-18 x 3/8
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

39

Simplicity 1676704SM

SPACER

$44.99

$

Usually ships in 2-12 days

0

40

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

41

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

42

Simplicity 1676696

BALL JOINT, Male, 3/8

$

$

Not available

43

Simplicity 1676707

LINK, Drag

$

$

Not available

44

Simplicity 1930245SM

LOCKNUT, 1/2-20

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1676701

LINK

$

$

Not available

46

Simplicity 1922127SM

BOLT, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

47

Simplicity 1676699SM

PLATE, Pivot

$21.99

$

Usually ships in 2-12 days

0

48

Simplicity 1676700

SPACER, "L" Bracket

$

$

Not available

49

Simplicity 1676702

BUSHING

$

$

Not available

50

Simplicity 2824119

BOLT, 1/2-20 x 1-1/4

$

$

Not available

51

Simplicity 1919326SM

WASHER, 5/16-16 x 3/4

$4.49

$

In Stock, Qty 18

0

52

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

53

Simplicity 1917372SM

NUT, 5/16 x 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

54

Simplicity 1676691

BRACKET, Carrier

$

$

Not available

55

Simplicity 1960103SM

WASHER, 3/8-16 x 3/4

$4.49

$

In Stock, only 2 left!

0

56

Simplicity 1676687

CYLINDER VALVE ASSY.

$

$

Not available

56

Simplicity 1676846SM

SEAL KIT, Valve (not shown)

$85.99

$

Usually ships in 2-12 days

0

56

Simplicity 1676853SM

SEAL KIT, Cylinder (not shown)

$

$

Not available
