1691171 - Simplicity 48" Adaptor for Vacuum Collector 48" Adaptor - Vacuum Collector Parts Diagram

48" Adaptor for Vacuum Collector

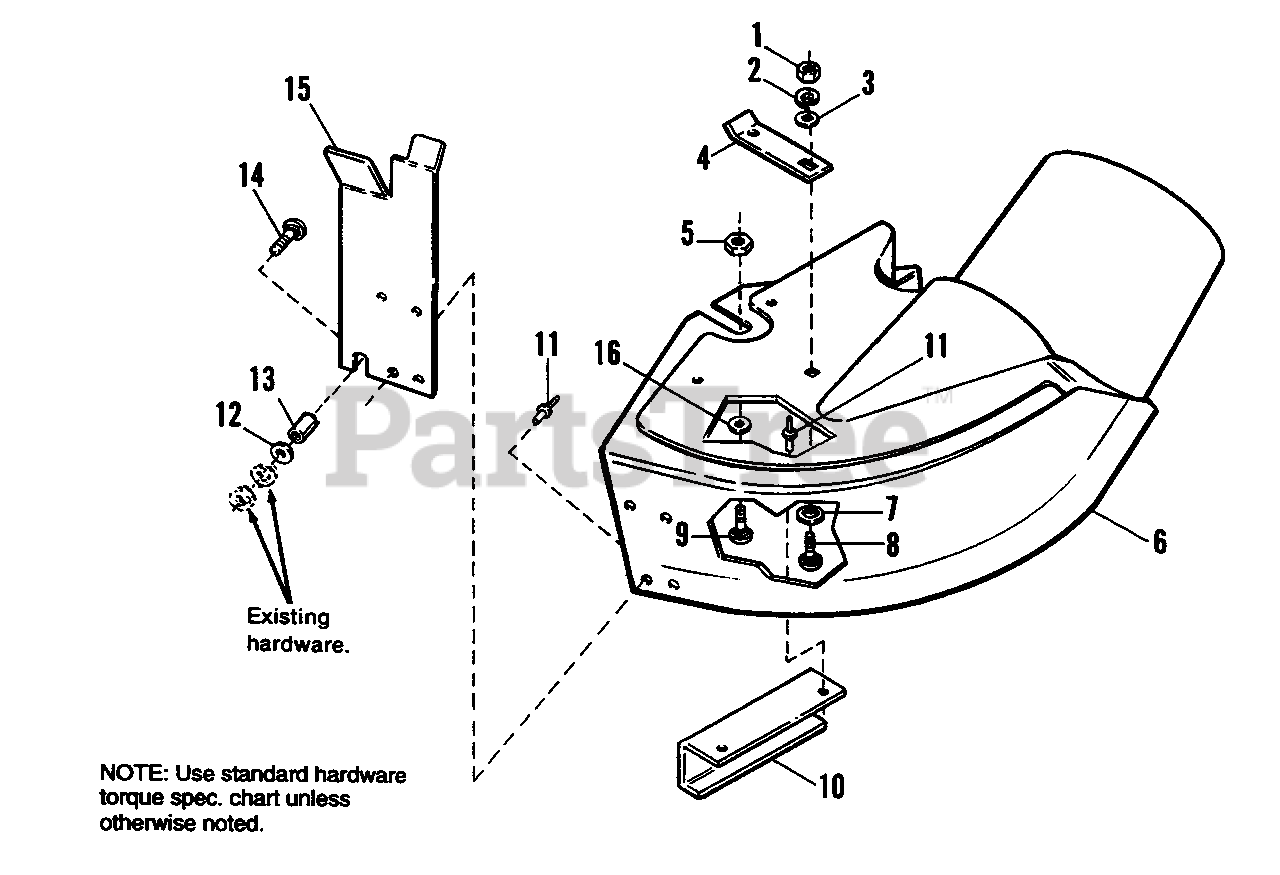

48" Adaptor - Vacuum Collector Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, 5/16-18 UNC,2B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16 Helical Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1919326SM

WASHER, Plain, 3/8 x 7/8

$4.49

$

In Stock, Qty 18

0

4

Simplicity 1678786

LATCH, Spring

$

$

Not available

5

Simplicity 1960251SM

NUT, Hex, Centerlock, Jam, 3/8-16 UNC
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

6

ADAPTOR ASSY.

$

$

Not available

7

Simplicity 1924940SM

WASHER, Plain, 7/16 x 1
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1931335SM

BOLT, Rd. Hd., 5/16-18 UNC x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 18

0

9

Simplicity 1931349SM

BOLT, Rd. Hd., 3/8-16 UNC x 7/8

$

$

Not available

10

Simplicity 1679548

ADAPTOR, Hold Down

$

$

Not available

11

Simplicity 2828706

RIVET, Oval Hd., 3/16 x 5/16

$

$

Not available

12

Simplicity 1919384SM

WASHER, Plain, 3/8 x 1-1/4 x 1/8

$5.49

$

In Stock, only 2 left!

0

13

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 4 left!

0

14

Simplicity 1923220SM

BOLT, Rd. Hd., 3/8-16 UNC x 1-1/4
(Superseded to 703130)

$3.99

$

In Stock, Qty 15

0

15

Simplicity 1700260

DEFLECTOR BRACE ASSY.

$

$

Not available

16

Simplicity 1960027SM

WASHER Plain. 1/2 x 7/8
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0
