1691187 - Simplicity Cart Collector Cart Collector - Tube & Support Group Parts Diagram

Cart Collector

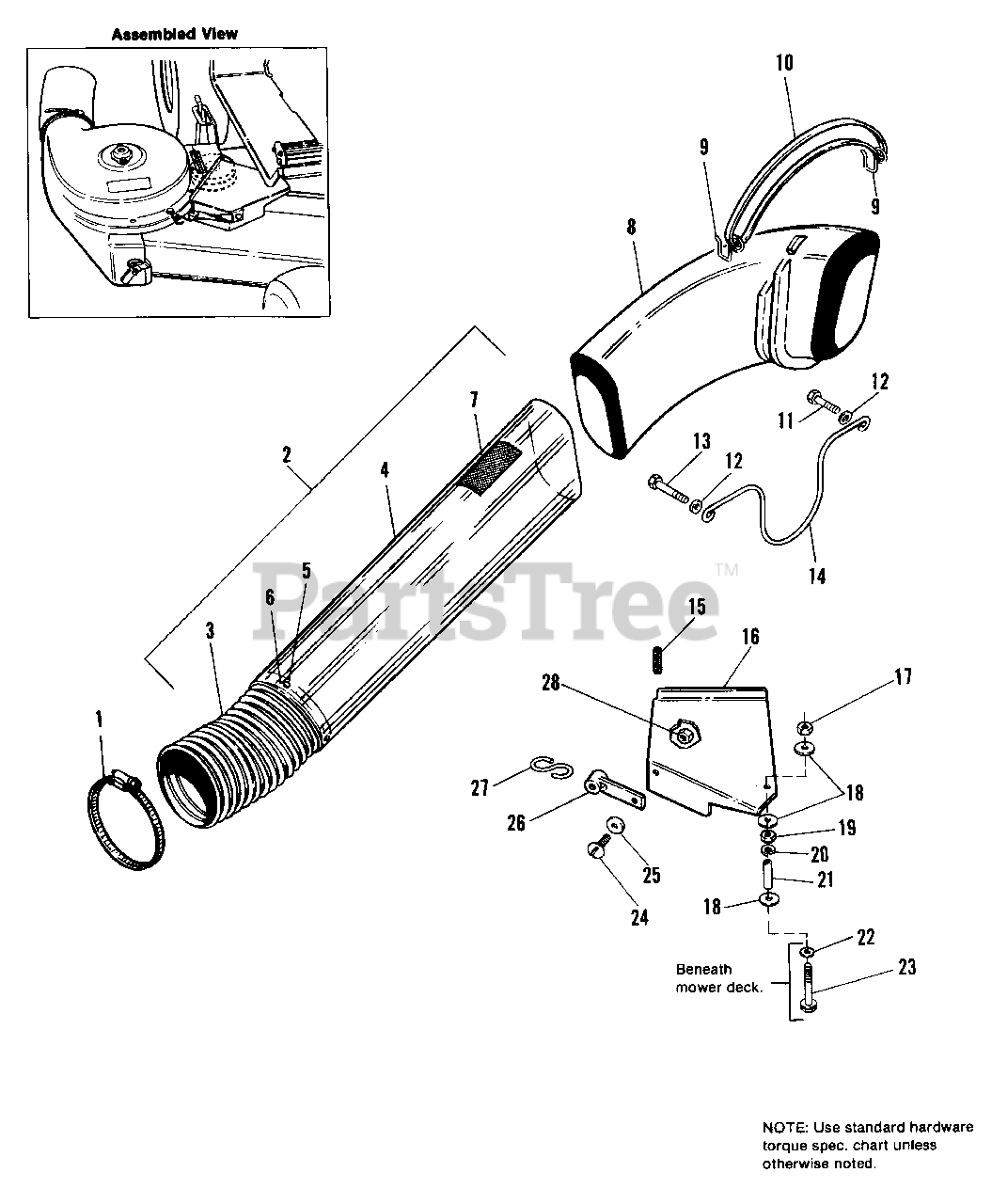

Cart Collector - Tube & Support Group Parts Diagram

  • Title

1

Simplicity 1679896SM

CLAMP, 6"

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1685364SM

TUBE ASSY., 38" (Incl. Ref. Nos. 3-7)

$

$

Not available

3

Simplicity 1679895SM

HOSE, Exhaust

$174.99

$

Usually ships in 2-12 days

0

4

Simplicity 1679175SM

TUBE

$102.99

$

Usually ships in 2-12 days

0

5

Simplicity 1673320SM

RIVET, Pop

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 2810531

WASHER, Rivet

$

$

Not available

7

Simplicity 1675766SM

DECAL, Cleaning Inst.

$

$

Not available

8

Simplicity 1669793SM

ELBOW, Tube to catcher

$113.99

$

Usually ships in 2-12 days

0

9

Simplicity 1679783

HOOK, Strap

$

$

Not available

10

Simplicity 1665872SM

STRAP, Rubber

$11.99

$

In Stock, only 4 left!

0

11

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 3 left!

0

12

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1921719SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

14

Simplicity 1678671

SUPPORT, Elbow

$

$

Not available

15

Simplicity 1679165

MOULDING

$

$

Not available

16

Simplicity 1704960SM

COVER ASSY, Arbor

$39.99

$

Usually ships in 2-12 days

0

17

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1920283SM

WASHER, 5/16

$4.99

$

In Stock, Qty 5

0

19

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

21

Simplicity 1679085SM

SPACER

$35.99

$

Usually ships in 2-12 days

0

22

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 4 left!

0

23

Simplicity 1960272SM

CAPSCREW, Hex Hd., 5/16-18 x 5-1/2

$17.99

$

Usually ships in 2-12 days

0

24

Simplicity 1930531SM

SCREW, Truss Hd., #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 1960096SM

WASHER, Plain

$3.99

$

In Stock, only 3 left!

0

26

Simplicity 1679205SM

STRAP, Arbor Cover

$9.49

$

Usually ships in 2-12 days

0

27

Simplicity 1679204SM

"S" Hook

$2.99

$

Usually ships in 2-12 days

0

28

Simplicity 1930627SM

NUT, Hex, Centerlock, #10-32

$2.99

$

Usually ships in 2-12 days

0
