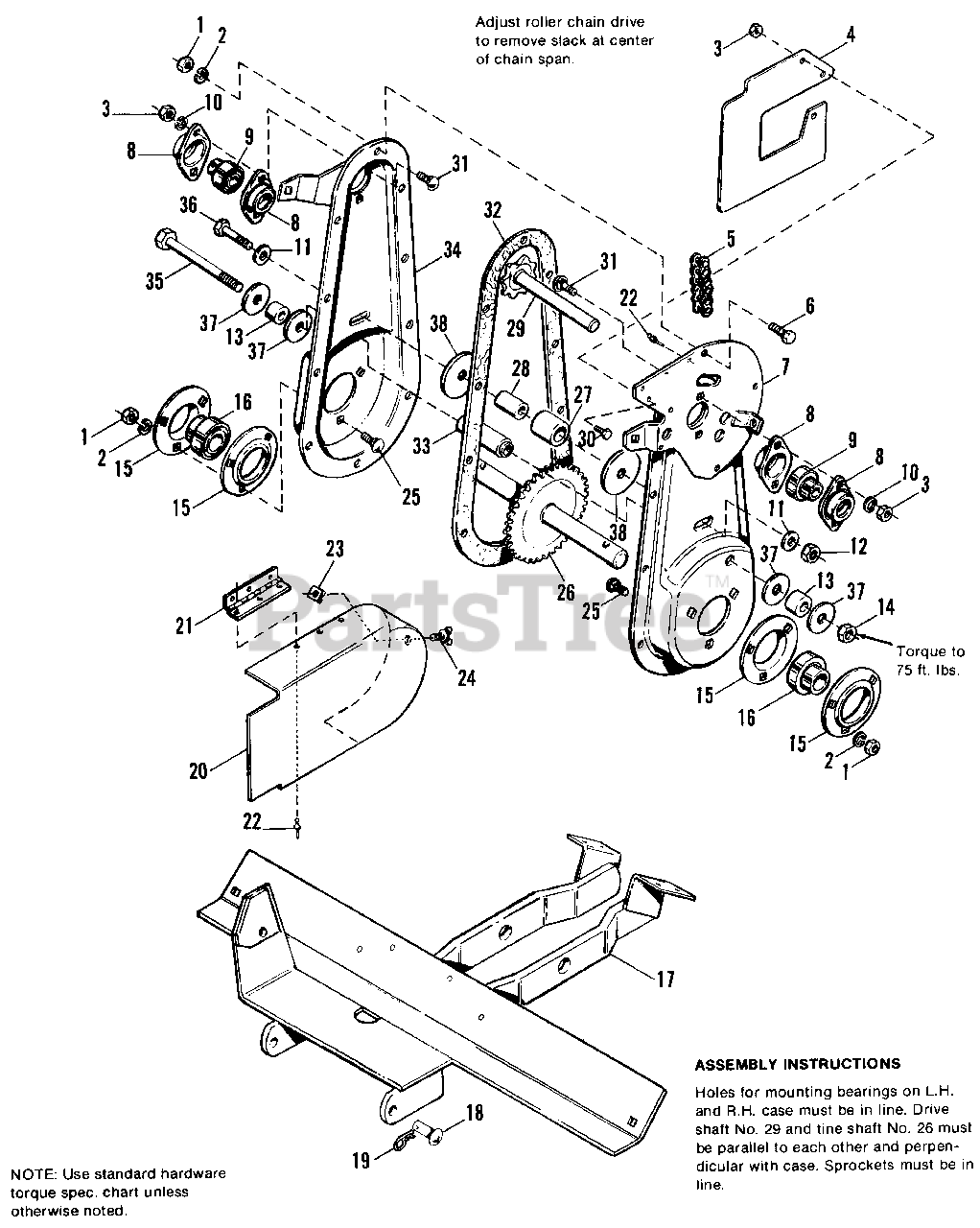

1691277 - Simplicity 30" Offset Tiller Case Group Parts Diagram

30" Offset Tiller

Case Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1916622SM

NUT, Hex, Full 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

4

Simplicity 1700726

COVER, Guard

$

$

Not available

5

Simplicity 170053

CHAIN

$

$

Not available

6

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1679289

CASE ASSY., Half, L.H.

$

$

Not available

8

Simplicity 1655814

BEARING

$

$

Not available

9

Simplicity 1656089SM

BEARING

$56.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

12

Simplicity 1930645SM

NUT, Hex Hd., Full, Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 2105386SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

14

Simplicity 1922134SM

NUT, Hex Hd., Full, Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

15

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

16

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

17

Simplicity 1678770

FRAME & HITCH ASSY.

$

$

Not available

18

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0

19

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 5

0

20

Simplicity 1700723

GUARD, Belt

$

$

Not available

21

Simplicity 1701320

HINGE

$

$

Not available

22

Simplicity 1673450SM

RIVET, Pop

$3.49

$

In Stock, Qty 5

0

23

Simplicity 2818118

NUT, "U" Type

$

$

Not available

24

Simplicity 1935023SM

SCREW, Wing

$9.49

$

Usually ships in 2-12 days

0

25

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 170030

SHAFT ASSY., Tine

$

$

Not available

27

Simplicity 2170177SM

ROLLER

$9.49

$

Usually ships in 2-12 days

0

28

Simplicity 2170369SM

SPACER

$

$

Not available

29

Simplicity 1655827

SHAFT ASSY., Drive

$

$

Not available

30

Simplicity 1921958SM

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

32

Simplicity 2170022

GASKET, Case

$

$

Not available

33

Simplicity 170029

SPACER, Case

$

$

Not available

34

Simplicity 1679288

CASE ASSY., Half R.H.

$

$

Not available

35

Simplicity 1926159SM

CAPSCREW, Hex Hd., 1/2-13 x 5

$10.99

$

In Stock, Qty 6

0

36

Simplicity 1922130SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

37

Snapper 2860154SM

WASHER

$7.99

$

Usually ships in 2-12 days

0

38

Snapper 2860188SM

WASHER

$45.99

$

In Stock, only 1 left!

0
