1691277 - Simplicity 30" Offset Tiller Pulley Guard Group Parts Diagram

30" Offset Tiller

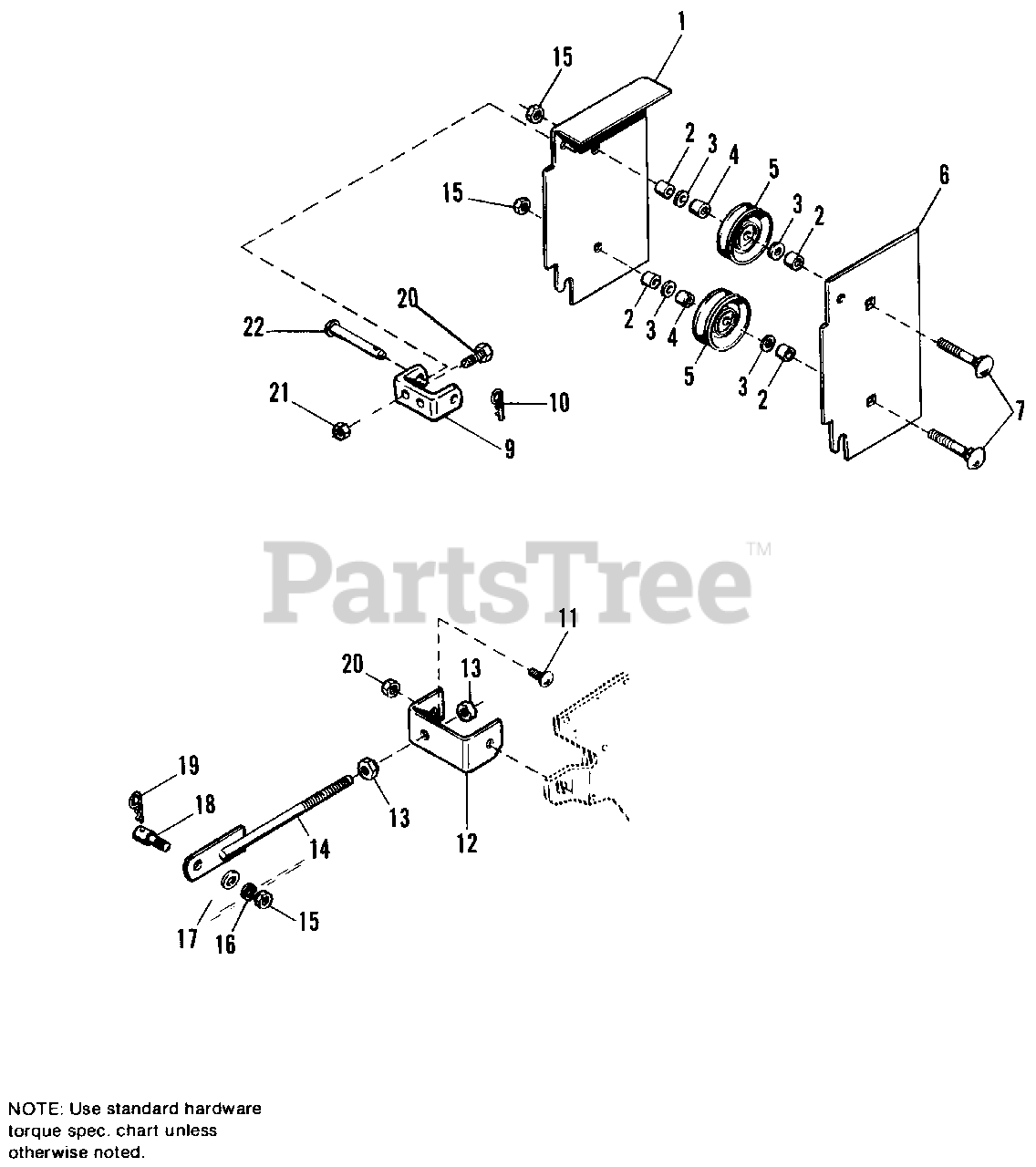

Pulley Guard Group Parts Diagram

  • Title

1

Simplicity 1679725

GUARD, Pulley, R.H.

$

$

Not available

2

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

3

Simplicity 1919326SM

WASHER, Flat, 3/8 x 7/8 x 14

$4.49

$

In Stock, Qty 18

0

4

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 2154534SM

PULLER ASSY.

$32.99

$

In Stock, only 2 left!

0

6

Simplicity 1679726

GUARD, Pulley, L.H.

$

$

Not available

7

Simplicity 1931355SM

BOLT, 5/8 x 15 x 2-1/4

$5.99

$

In Stock, Qty 6

0

8

Simplicity 1923325SM

BOLT, Hex Hd., 5/16-18 x 7/8, Gr.5
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1679722

BRACKET, Guard

$

$

Not available

10

Simplicity 1918196SM

PIN
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 1931348SM

CARRIAGE BOLT, 3/8 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1679224

CLEVIS, Mast

$

$

Not available

13

Simplicity 1919262SM

NUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

14

Simplicity 1679221

ARM, Mast Assy.

$

$

Not available

15

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

17

Simplicity 1922755SM

WASHER, 3/8 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 10

0

18

Simplicity 1679226

PIN

$

$

Not available

19

Simplicity 1960033SM

PIN, Quick

$3.49

$

In Stock, Qty 5

0

20

Simplicity 1930645SM

NUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1679721

PIN, Guard Bracket

$

$

Not available
