1691305 - AGCO 36" Rear-Engine Riding Mower, 12hp Vanguard 36" Mower Baffle & Gauge Roller Group Parts Diagram

36" Rear-Engine Riding Mower, 12hp Vanguard

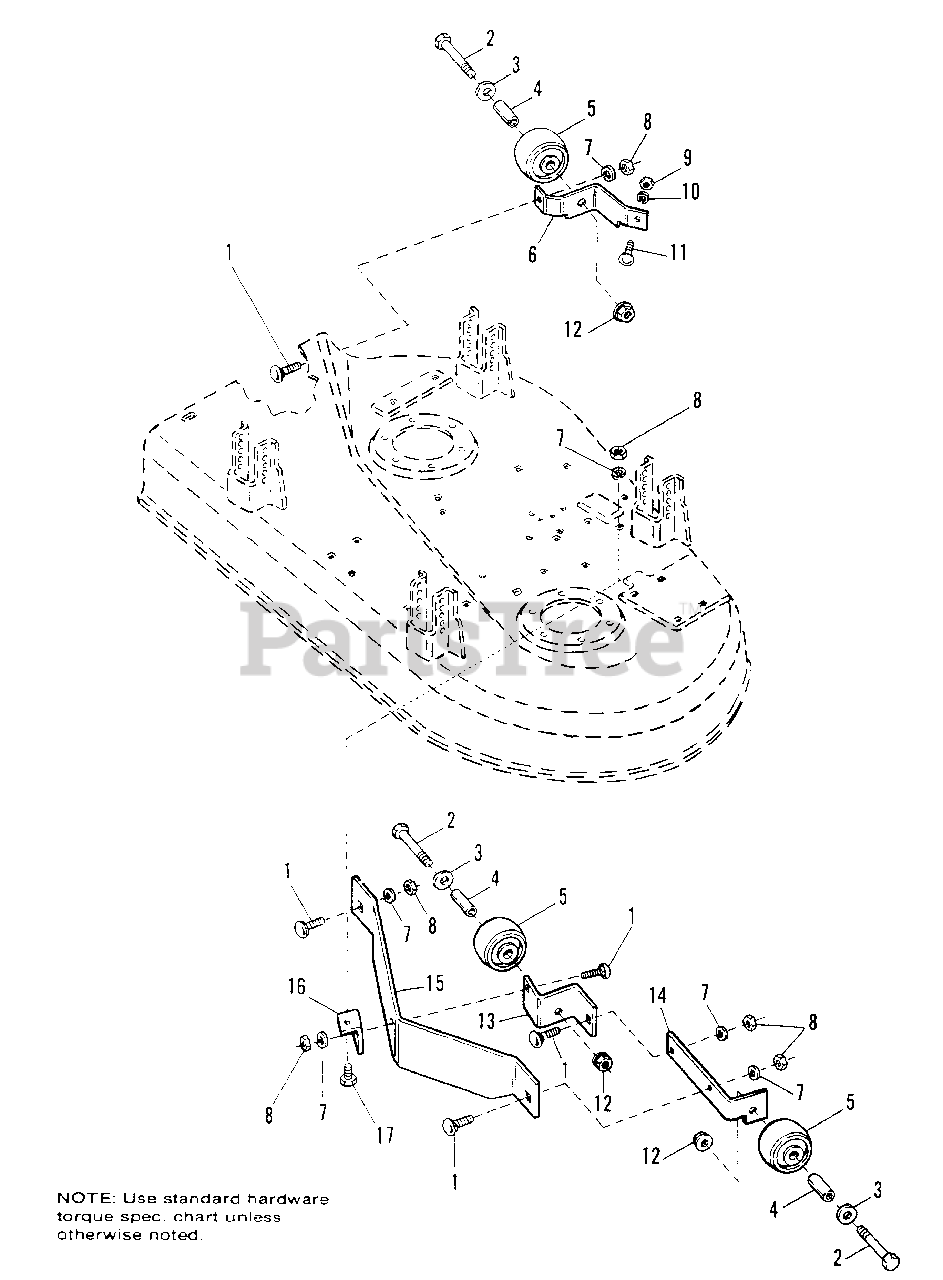

36" Mower Baffle & Gauge Roller Group Parts Diagram

  • Title

1

Simplicity 1931334SM

BOLT, Carriage, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 14

0

2

Simplicity 1960245SM

CAPSCREW, Hex, 1/2-13 x 3

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1926192SM

WASHER, 9/16 x 1-1/4

$20.99

$

Usually ships in 2-12 days

0

4

Simplicity 1702189

SPACER

$

$

Not available

5

Simplicity 1702144SM

GAUGE, Roller

$

$

Not available

6

Simplicity 1702137

BRACKET, Roller, Right

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

8

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 5

0

9

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1931317SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$4.49

$

In Stock, only 4 left!

0

12

Simplicity 1960515SM

NUT, Flange, Centerlock, 1/2-13

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 1702138

BRACKET, Roller, Center

$

$

Not available

14

Simplicity 1702143

BRACKET, Roller, Left

$

$

Not available

15

Simplicity 1671577SM

BAFFLE
(Superseded to 1671577ASM)

$

$

Not available

16

Simplicity 1668500A

BRACKET, Mower to Baffle
(Superseded to 1668500SM)

$20.99

$

In Stock, only 1 left!

0

17

Simplicity 1921332SM

CAPSCREW, Hex Hd ., 5/16-18 x 3/4
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0
