1691306 - AGCO 42" Rear-Engine Riding Mower, 12hp Vanguard Engine Group Parts Diagram

42" Rear-Engine Riding Mower, 12hp Vanguard

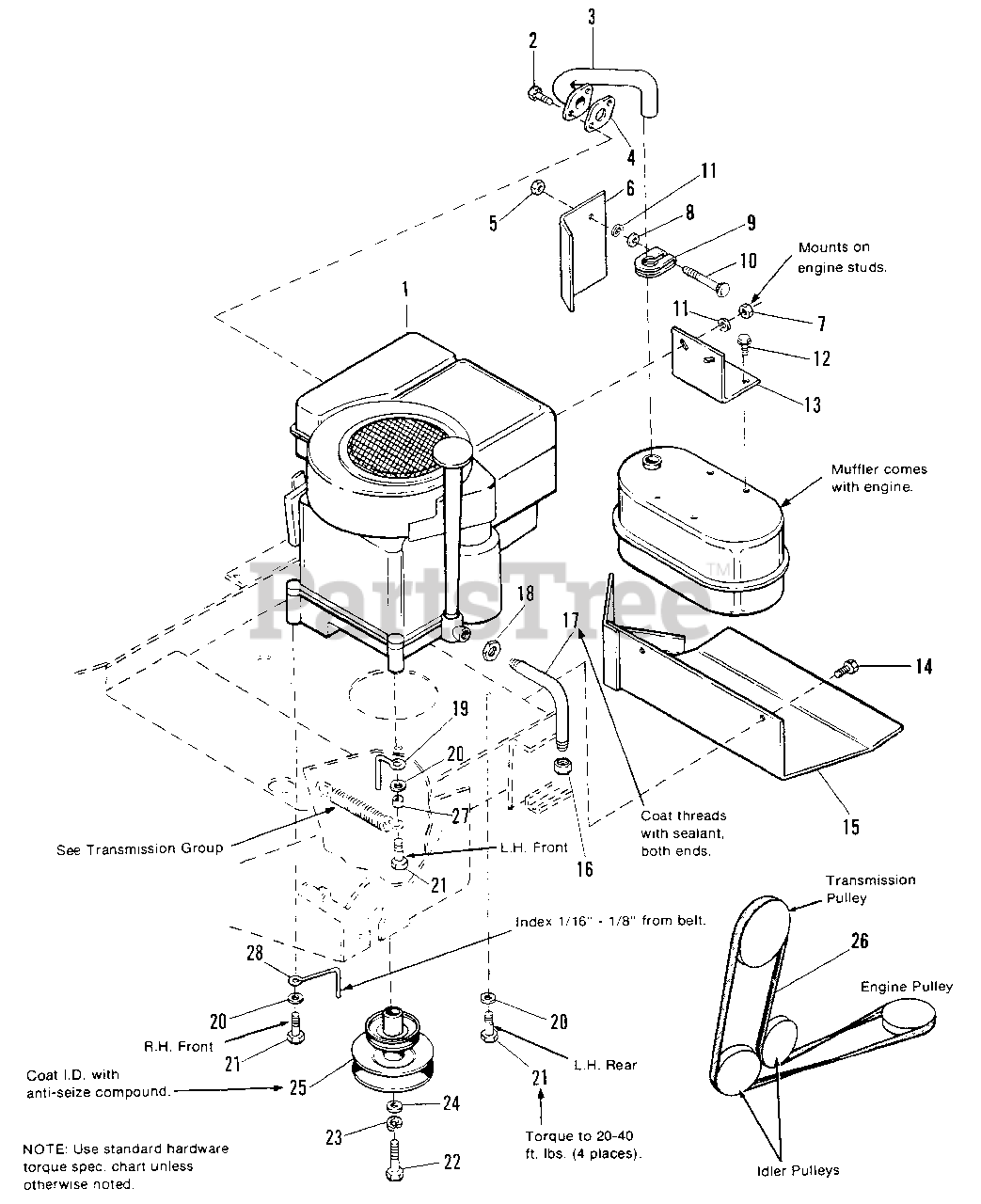

Engine Group Parts Diagram

  • Title

1

ENGINE, 12 HP (Briggs & Stratton) (Includes muffler)

$

$

Not available

2

Simplicity 1930591SM

SCREW, Whizlock, 5/16-18 x 3/4 (12 HP only)
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1655860SM

PIPE, Exhaust

$112.99

$

In Stock, only 1 left!

0

4

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

In Stock, only 1 left!

0

5

Simplicity 1923362SM

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 12

0

6

Simplicity 1700396

SHIELD, Heat (Muffler)

$

$

Not available

7

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 18

0

9

Simplicity 1676183SM

CLAMP

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1931342SM

BOLT, Carriage, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1700164

BRACKET, Muffler

$

$

Not available

14

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

15

Simplicity 1700232SM

HEAT SHIELD ASSY.
(Superseded to 1700232ASM)

$69.99

$

Usually ships in 2-12 days

0

16

Simplicity 1667346SM

CAP. Hex, 3/8

$7.49

$

Usually ships in 2-12 days

0

17

Simplicity 1664989

DRAIN Oil

$

$

Not available

18

Simplicity 1932849SM

LOCKNUT, Conduit, 3/8

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1678306SM

STOP, Belt

$

$

Not available

20

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

In Stock, only 2 left!

0

22

Simplicity 1920353SM

CAPSCREW, Hex, 7/16-20 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918199SM

LOCKWASHER, 3/8
(Superseded to 704007)

$4.49

$

In Stock, Qty 9

0

24

Simplicity 1933263SM

WASHER, 3/8
(Superseded to 703990)

$6.99

$

In Stock, only 4 left!

0

25

Simplicity 1700310SM

PULLEY ASSY., Engine

$

$

Not available

26

Simplicity 1700581SM

BELT, Transmission Drive

$47.99

$

Usually ships in 2-12 days

0

27

Simplicity 1666804SM

SPACER

$8.99

$

Usually ships in 2-12 days

0

28

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0
