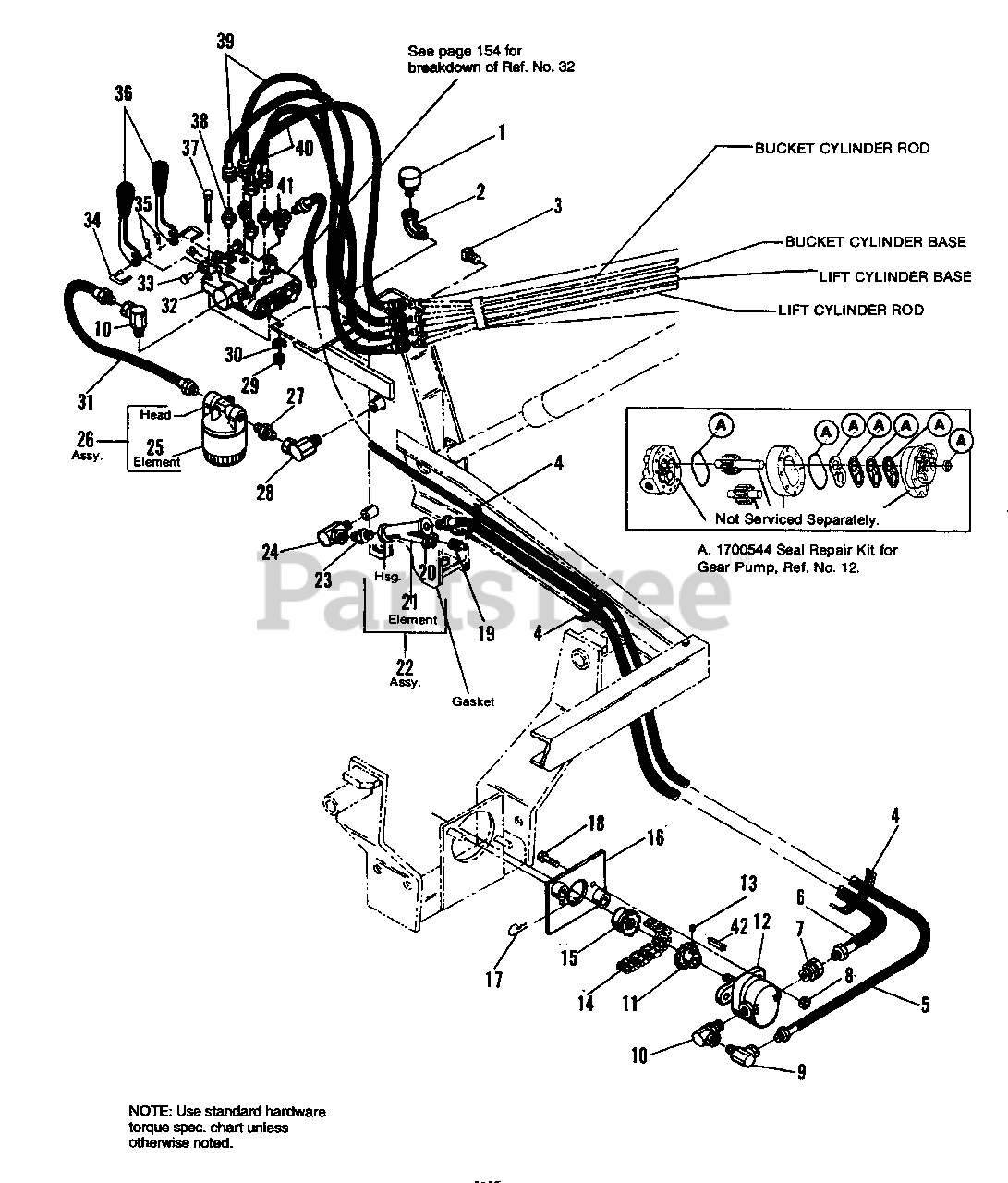

1691309 - Simplicity Front Loader Hydraulic Group, Valve Parts Diagram

Front Loader

Hydraulic Group, Valve Parts Diagram

  • Title

1

Simplicity 1700509SM

CAP, Breather

$50.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700510SM

FITTING, Street Elbow, 1/2 x 90ø

$34.99

$

Usually ships in 2-12 days

0

3

Simplicity 905261

PLUG, Pipe, 1/2

$

$

Not available

4

Simplicity 2825442

STRAP, Adjustable Tie, 3/16 x 14-3/16

$

$

Not available

5

Simplicity 1700489SM

HOSE, 3/8 x 72"

$

$

Not available

6

Simplicity 1700496SM

HOSE, 1/2 x 48"

$71.99

$

Usually ships in 2-12 days

0

7

Simplicity 1700492SM

FITTING, Adaptor Union, 7/8-1/2

$15.99

$

Usually ships in 2-12 days

0

8

Simplicity 1930645SM

LOCKNUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

9

Simplicity 1700488SM

FITTING, Elbow Adaptor, 3/8-3/8 x 90ø

$

$

Not available

10

Simplicity 1700487SM

FITTING, Elbow Adaptor, 3/4-3/8 x 90ø

$

$

Not available

11

Simplicity 1700486SM

SPROCKET, w/Keyway Hub, #40B12

$

$

Not available

12

Simplicity 1700493SM

GEAR PUMP

Note: Seal Repair Kit P/N 1700544

$1310.99

$

Usually ships in 2-12 days

0

13

Simplicity 1930545SM

SETSCREW, Skt. Hd., 1/2-20 x 1/4

$

$

Not available

14

Simplicity 1700485SM

CHAIN, Roller, #40-2 x 12

$

$

Not available

15

Simplicity 1700484SM

SPROCKET, w/Spline Hub, #40B12

$

$

Not available

16

Simplicity 1700494SM

BRACKET, Pump Mounting

$

$

Not available

17

Simplicity 1960074SM

Pin, Hair Cotter, 3/32 x 1-7/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1920415SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 1673452SM

PLUG, Pipe, 3/8

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1700601SM

GASKET

Note: (Y-Strainer)

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 1700600SM

SCREEN, Replacement

Note: (Y-Strainer)

$28.99

$

Usually ships in 2-12 days

0

22

Simplicity 1700490SM

Y-STRAINER

$117.99

$

Usually ships in 2-12 days

0

23

Simplicity 1700491SM

FITTING, Adaptor, 1/2-1/2

$39.99

$

Usually ships in 2-12 days

0

24

Simplicity 1700497SM

FITTING, Elbow Adaptor, 1/2-1/2 x 90ø

$

$

Not available

25

Simplicity 1700603SM

ELEMENT, Filter,10 Micron

$60.99

$

Usually ships in 2-12 days

0

26

Simplicity 1700500SM

FILTER ASSY., w/ Element

$94.99

$

Usually ships in 2-12 days

0

27

Simplicity 1700499SM

FITTING, Adaptor, 3/8-3/8

$7.49

$

Usually ships in 2-12 days

0

28

Simplicity 1700498SM

FITTING, Elbow Adaptor, 1/2-3/8 x 90ø

$25.99

$

Usually ships in 2-12 days

0

29

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

30

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

31

Simplicity 1700501SM

HOSE, 3/8 x 14"

$39.99

$

Usually ships in 2-12 days

0

32

Simplicity 1700502SM

VALVE ASSY.

Note: See "Control Valve Group" illustration and part list for parts breakdown.

$991.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960261SM

PIN, 1/4 x 3/4

$6.49

$

Usually ships in 2-12 days

0

34

Simplicity 1700504SM

V-HOOK

$13.99

$

Usually ships in 2-12 days

0

35

Simplicity 1923360SM

PIN, Cotter
(Superseded to 703892)

$3.49

$

In Stock, Qty 5

0

36

Simplicity 1700505SM

HANDLE, Valve

$75.99

$

Usually ships in 2-12 days

0

37

Simplicity 1921159SM

CAPSCREW, 1/2-20 x 2-1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

38

Simplicity 2822522SM

FITTING, Adaptor, 9/16-9/16

$6.49

$

Usually ships in 2-12 days

0

39

Simplicity 1700507SM

HOSE, 1/4 x 22-1/2

$

$

Not available

40

Simplicity 1700508SM

HOSE, 1/4 x 20"

$50.99

$

Usually ships in 2-12 days

0

41

Simplicity 1700503SM

FITTING, Adaptor Union, 3/4 x 3/8 x 45ø

$40.99

$

Usually ships in 2-12 days

0

42

Simplicity 2805121SM

KEY, Woodruff, #5, 1/8 x 5/8

$2.99

$

In Stock, only 1 left!

0

A

Simplicity 1700544SM

SEAL REPAIR KIT

Note: REPAIR KIT

$270.99

$

Usually ships in 2-12 days

0
