1691309 - Simplicity Front Loader Loader Main Frame Parts Diagram

Front Loader

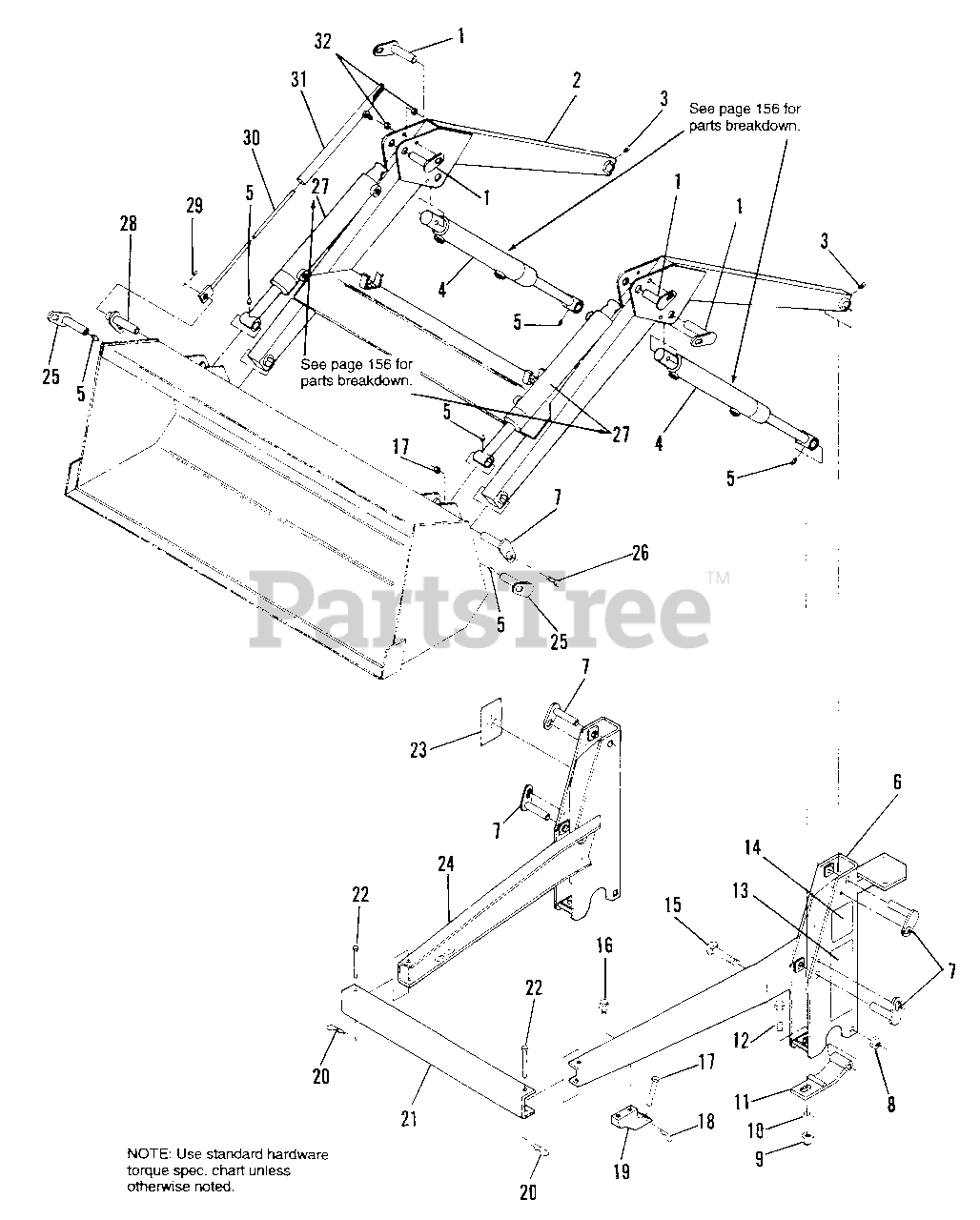

Loader Main Frame Parts Diagram

  • Title

1

Simplicity 1700524SM

PIN ASSY., 3/4 x 2-1/2 (Cyl. Base)

$30.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700523SM

FRAME, Lift Boom

$

$

Not available

3

Simplicity 2818186SM

FITTING, Grease, 1/4-28

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1700535SM

Cylinder, Lift (Code HG)

Note: See "Cylinder Assy. - Bucket" illustration and part list for parts breakdown.

$712.99

$

Usually ships in 2-12 days

0

5

Simplicity 2812808SM

GREASE FITTING, 1/4-28

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 1700539SM

FRAME, Left Side

$

$

Not available

7

Simplicity 1700534SM

PIN ASSY., 3/4 x 3-1/4 (Frame, L.H.)

$27.99

$

Usually ships in 2-12 days

0

8

Simplicity 1923353SM

LOCKNUT, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

9

Simplicity 960301

LOCKNUT, Elastic, 5/8-11

$

$

Not available

10

Simplicity 1960035SM

WASHER, Flat, 5/8

$4.49

$

In Stock, Qty 13

0

11

Simplicity 1700540SM

HINGE

$50.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960289SM

CAPSCREW, 5/8-11 x 3"

$15.99

$

Usually ships in 2-12 days

0

13

Simplicity 1700559SM

DECAL, Danger

$9.99

$

Usually ships in 2-12 days

0

14

Simplicity 1700558SM

DECAL, Caution

$43.99

$

Usually ships in 2-12 days

0

15

Simplicity 2860300SM

CARRIAGE BOLT, 5/8-11 x 3-3/4, Gr. 5

$

$

Not available

16

Simplicity 960303

CAPSCREW, Serrated Hd., 1/2-13 x 3/4

$

$

Not available

17

Simplicity 2860302SM

PIN, Clevis, 5/8 x 3-1/4

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960033SM

PIN, Hair Cotter, 3/32 x 2-11/16

$3.49

$

In Stock, only 3 left!

0

19

Simplicity 1700541SM

HOOK, Side Frame Mounting

$148.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960074SM

PIN, Hair Cotter, 3/32 x 1-7/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1700542SM

BUMPER, Front

$

$

Not available

22

Simplicity 2860304SM

PIN, Clevis, 3/8 x 4

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 1700557SM

DECAL, Caution

$9.99

$

Usually ships in 2-12 days

0

24

Simplicity 1700538SM

FRAME, Right Side

$

$

Not available

25

Simplicity 1700533SM

PIN ASSY., 3/4 x 3-1/4 (Bucket)

$53.99

$

Usually ships in 2-12 days

0

26

Simplicity 960323

BOLT, Shoulder 3/8 x 1

$

$

Not available

27

Simplicity 1700526SM

Cylinder, Bucket, (Code HF)

$

$

Not available

28

Simplicity 1700532SM

PIN ASSY., 3/4 x 3-1/4

$39.99

$

Usually ships in 2-12 days

0

29

Simplicity 1923500SM

COTTER PIN, 5/32 x 1-1/2

$3.99

$

In Stock, only 1 left!

0

30

Simplicity 1700531SM

ROD, Indicator

$34.99

$

Usually ships in 2-12 days

0

31

Simplicity 1700525SM

TUBE, Indicator Guide

$31.99

$

Usually ships in 2-12 days

0

32

Simplicity 1930645SM

LOCKNUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
