1691351 - Simplicity Front PTO, 540 RPM Front P.T.O. (540 RPM) Parts Diagram

Front PTO, 540 RPM

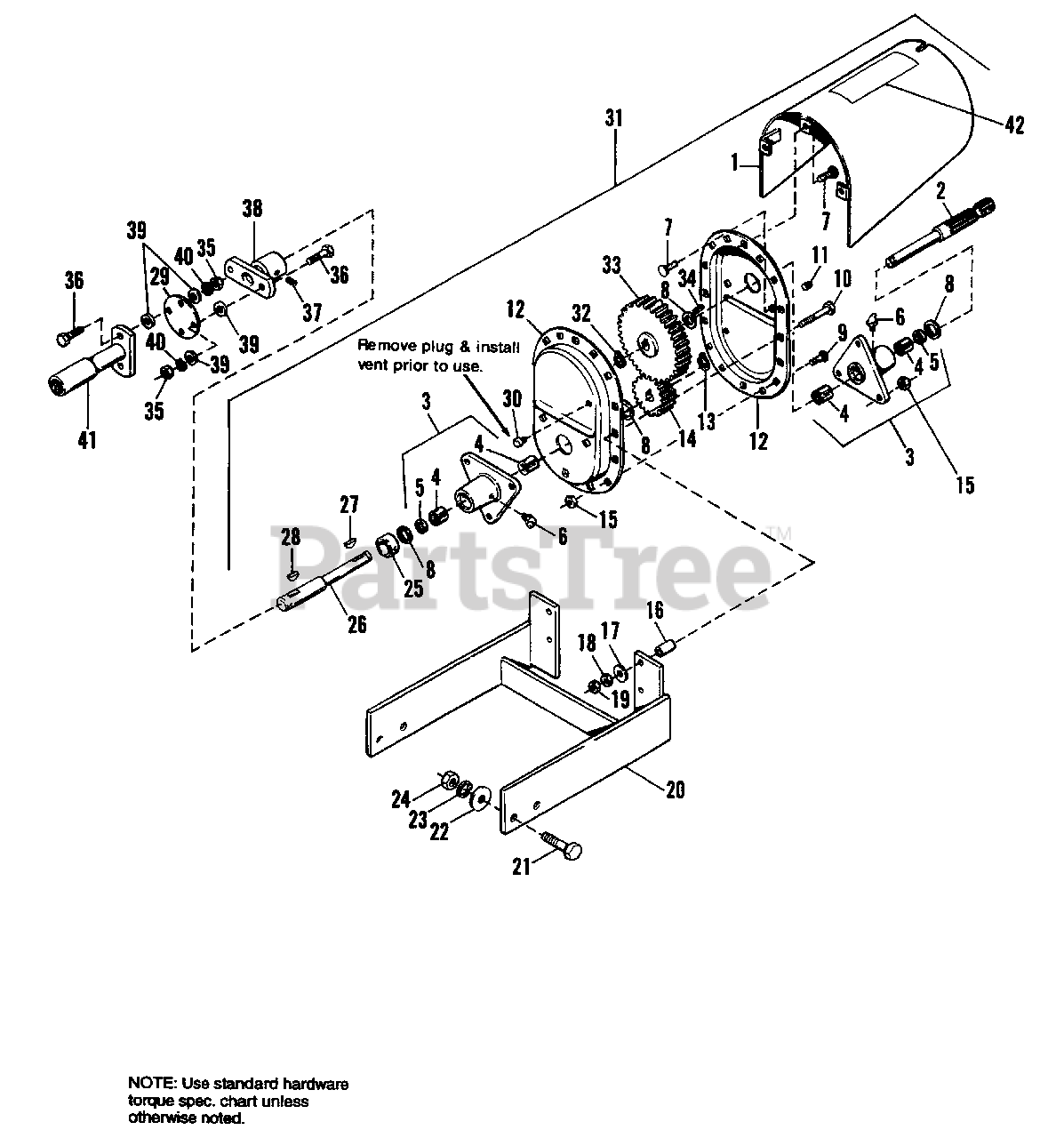

Front P.T.O. (540 RPM) Parts Diagram

  • Title

1

Simplicity 1702181

SHIELD ASSY., P.T.O.

$

$

Not available

2

Simplicity 1702180

SHAFT, Output

$

$

Not available

3

Simplicity 1702176

HUB ASSY., w/Bearings & Seal

Note: (Incl. Ref. Nos. 4, 5 & 6)

$

$

Not available

4

Simplicity 173739

BEARING, Needle

$

$

Not available

5

Simplicity 2118019SM

OIL SEAL

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 960337

FITTING, Grease

$

$

Not available

7

Simplicity 1931335SM

CARRIAGE BOLT, 5/16 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

8

Simplicity 2172589SM

WASHER, Thrust

$16.99

$

In Stock, only 2 left!

0

9

Simplicity 1960282SM

CARRIAGE BOLT, 5/16 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1921719SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

11

Simplicity 2820129

PLUG

$

$

Not available

12

Simplicity 1702177

COVER, Gear Box (Half)

$

$

Not available

13

Simplicity 2827732SM

RING, Retainer
(Superseded to 703979)

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 1702178

GEAR, Pinion, 18 Teeth

$

$

Not available

15

Simplicity 2819438

NUT, Hex Lock, 5/16-18

$

$

Not available

16

Simplicity 1608310SM

SPACER

$38.99

$

Usually ships in 2-12 days

0

17

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 18

0

18

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, Qty 10

0

20

Simplicity 1701239

CARRIER ASSY.

$

$

Not available

21

Simplicity 1922664SM

CAPSCREW, Hex Hd., 5/8-11 x 2

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 2833757

WASHER, 5/8

$

$

Not available

23

Simplicity 1917373SM

LOCKWASHER, 5/8

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1915726SM

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

25

Simplicity 1702175

COLLAR, Bearing

$

$

Not available

26

Simplicity 1702174

SHAFT, Input

$

$

Not available

27

Simplicity 2805123SM

KEY, Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 7

0

28

Simplicity 2805126SM

KEY, Woodruff

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

30

Simplicity 1678690SM

PLUG, Vent

$13.99

$

Usually ships in 2-12 days

0

31

Simplicity 1700753

HOUSING ASSY., Reduction w/Shield

Note: (Incl. Ref. Nos. 1-9, 11-15, 25-27, & 30-34)

$

$

Not available

32

Simplicity 1960338

RING, Retaining
(Superseded to 1960338SM)

$2.99

$

Usually ships in 2-12 days

0

33

Simplicity 1702179

GEAR, Driven, 72 Teeth

$

$

Not available

34

Simplicity 2157652

KEY, Parallel

$

$

Not available

35

Simplicity 1916950SM

NUT, Hex, 5/16-18
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

36

Simplicity 1920415SM

CAPSCREW, Hex Hd., 5/16-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

37

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

38

Simplicity 1676561ASM

COUPLER ASSY.

$72.99

$

Usually ships in 2-12 days

0

39

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

40

Simplicity 1916965SM

LOCKWASHER, 5/16
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

41

Simplicity 1700745SM

SHAFT ASSY., 540 P.T.O.

$

$

Not available

42

Simplicity 1700750

DECAL, Warning

$

$

Not available
