1691360 - Simplicity 46" Snow Thrower Attachment 46" Snowthrower, Drive Group (After Serial No. 00308) Parts Diagram

46" Snow Thrower Attachment

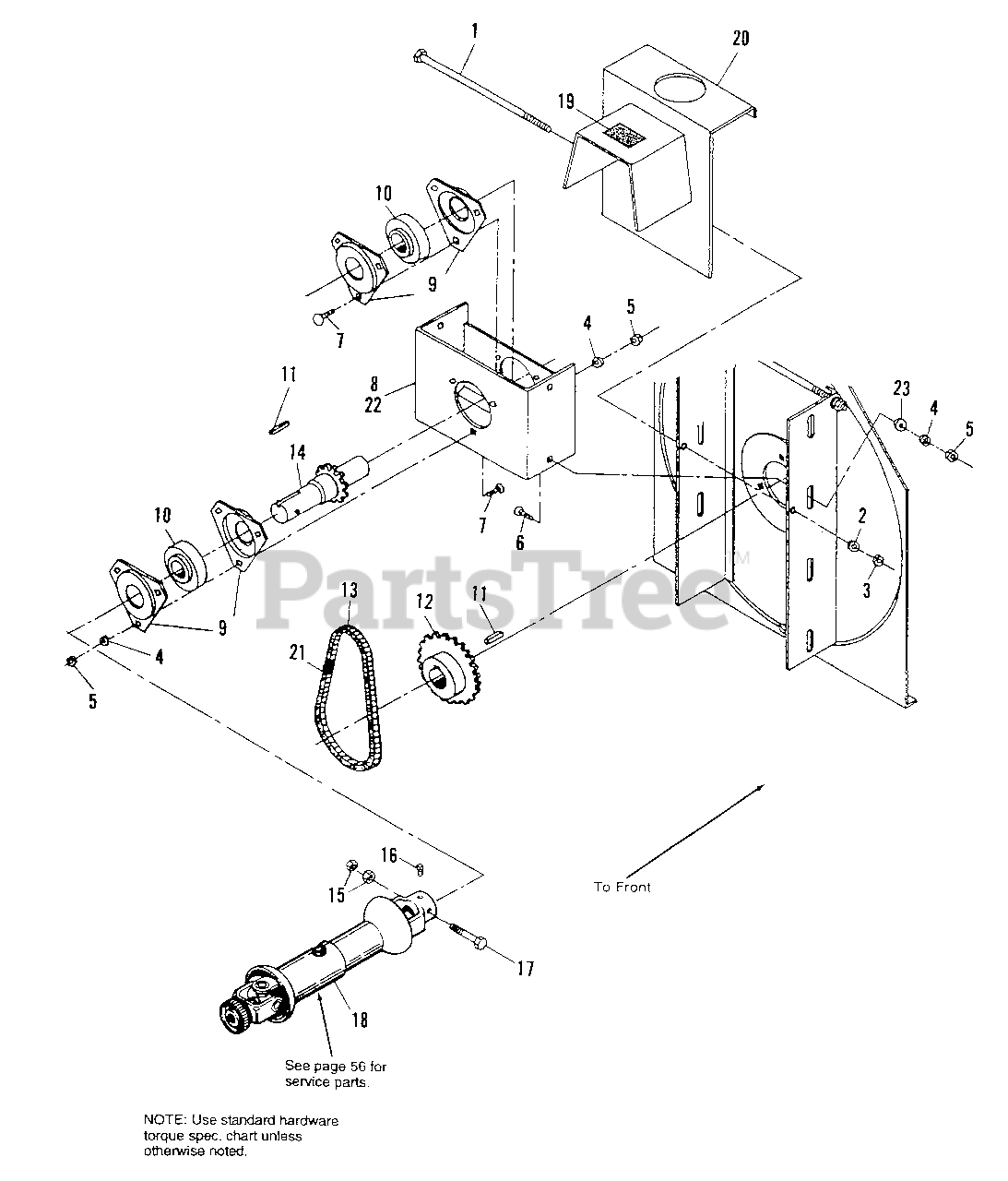

46" Snowthrower, Drive Group (After Serial No. 00308) Parts Diagram

  • Title

1

Simplicity 936288

CAPSCREW, Hex Hd., 1/4-20 x 7-1/2

$

$

Not available

2

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1960282SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1921332SM

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

8

Simplicity 1701080SM

BOX ASSY., Reduction

Note: (Incl. Ref. Nos. 4 & 5, Qty. 6; 7, 8, 9,10, 14 & 22.)

$387.99

$

Usually ships in 2-12 days

0

9

Simplicity 1701083SM

BEARING, Flange

$9.99

$

Usually ships in 2-12 days

0

10

Simplicity 1701045SM

BEARING, 1" I.D. w/Locking Screw
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

11

Simplicity 2157652

KEY, Parallel, Plain, 1/4 x 1/4 x 1-1/4

$

$

Not available

12

Simplicity 1701084SM

SPROCKET

$166.99

$

Usually ships in 2-12 days

0

13

Simplicity 1701085SM

CHAIN

$112.99

$

Usually ships in 2-12 days

0

14

Simplicity 1701082SM

SHAFT, Assy., Drive, w/Sprocket

$119.99

$

Usually ships in 2-12 days

0

15

Simplicity 1923358SM

NUT, Hex Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1930540SM

SETSCREW, Sq. Hd., 5/16-18 x 5/8

$4.49

$

In Stock, Qty 12

0

17

Simplicity 1925688SM

CAPSCREW, Hex Hd., 1/4-20 x 2-1/2
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1717484SM

DRIVE SHAFT

Note: (See "42" & 46" Snowthrower, Drive Shaft" for Service Parts)

$638.99

$

Usually ships in 2-12 days

0

19

Simplicity 1679461SM

DECAL, Danger

$9.99

$

Usually ships in 2-12 days

0

20

Simplicity 1704160SM

SHIELD, P.T.O.

$148.99

$

Usually ships in 2-12 days

0

21

Simplicity 1704893SM

MASTER LINK, Chain #40

$4.99

$

In Stock, only 1 left!

0

22

Simplicity 1701081SM

BOX, Reduction

$

$

Not available

23

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, Qty 14

0
