1691365 - Simplicity 46" Dozer Blade 46" Dozer Blade (Hitch Group) Parts Diagram

46" Dozer Blade

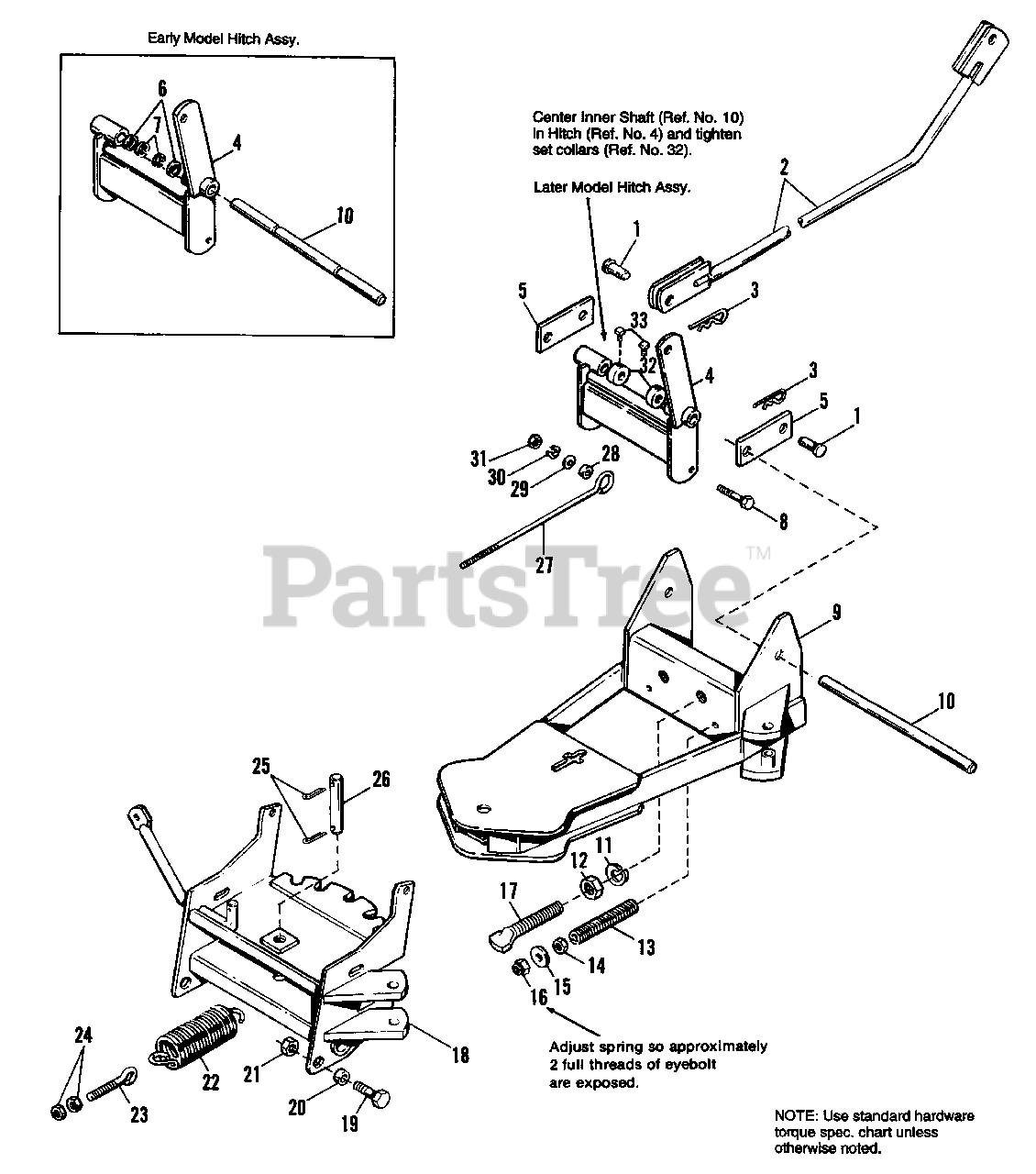

46" Dozer Blade (Hitch Group) Parts Diagram

  • Title

1

Simplicity 1960038SM

PIN, Clevis

$7.49

$

Usually ships in 2-12 days

0

2

Snapper 1675390ASM

ROD ASSY., Lift

$

$

Not available

3

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, Qty 5

0

4

Simplicity 1675502SM

HITCH ASSY.

$

$

Not available

5

Simplicity 1675525SM

LINK

$

$

Not available

6

Simplicity 1960020SM

WASHER, Plain, 41/64 x 1-1/4 x 1/16

Note: Used on Early Models.

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 2827793SM

E-RING, Retaining
(Superseded to 703977)

Note: Used on Early Models.

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 1922664SM

CAPSCREW, Hex Hd., 5/8-11 x 2" Lg.

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1700664SM

HITCH ASSY, Dozer

$558.99

$

Usually ships in 2-12 days

0

10

Simplicity 1685484SM

SHAFT, Inner

Note: Used on Early Models.

$80.99

$

Usually ships in 2-12 days

0

10

Simplicity 1708999SM

SHAFT, Inner

Note: Used on Later Models.

$38.99

$

Usually ships in 2-12 days

0

11

Simplicity 1919332SM

LOCKWASHER, 3/4"

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1913160SM

NUT, Hex, 3/4-10

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1675524SM

SPING, Compression

$20.99

$

Usually ships in 2-12 days

0

14

Simplicity 1917421SM

NUT, Hex Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

15

Simplicity 1960071SM

WASHER, 13/32 x 1-1/4 x 1/4

$8.49

$

In Stock, only 2 left!

0

16

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

17

Simplicity 1676959SM

STUD, 3/4-10

$25.99

$

Usually ships in 2-12 days

0

18

Simplicity 1700665SM

FRAME ASSY, Pivot

$

$

Not available

19

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1 Lg.
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 2105051

SPACER

$

$

Not available

21

Simplicity 1922134SM

NUT, Hex, Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

22

Simplicity 2101126SM

SPRING, Tension

$46.99

$

In Stock, only 1 left!

0

23

Simplicity 2107121SM

EYEBOLT

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1919314SM

PIN, Cotter, 3/16 x 1-1/4 Lg.

$3.49

$

In Stock, Qty 7

0

26

Simplicity 2174066SM

PIN, Pivot

$44.99

$

Usually ships in 2-12 days

0

27

Simplicity 1679055SM

EYEBOLT

$8.99

$

Usually ships in 2-12 days

0

28

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

29

Simplicity 2833757

WASHER, Plain, 41/64 x 1-3/4 x 1/8

$

$

Not available

30

Simplicity 1917373SM

LOCKWASHER, 5/8

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1923353SM

NUT, Hex, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

32

Simplicity 1729258SM

SET COLLAR
(Superseded to 5010477YP)

Note: Used on Later Models.

$8.99

$

Usually ships in 2-12 days

0

33

Simplicity 1928721SM

SETSCREW, Square Hd. Cup Point, 5/16-18 x 1/2

Note: Used on Later Models.

$4.99

$

In Stock, Qty 13

0
