1691380 - Simplicity SunStar Garden Tractor, 18hp Front Axle Group - Later Models Parts Diagram

SunStar Garden Tractor, 18hp

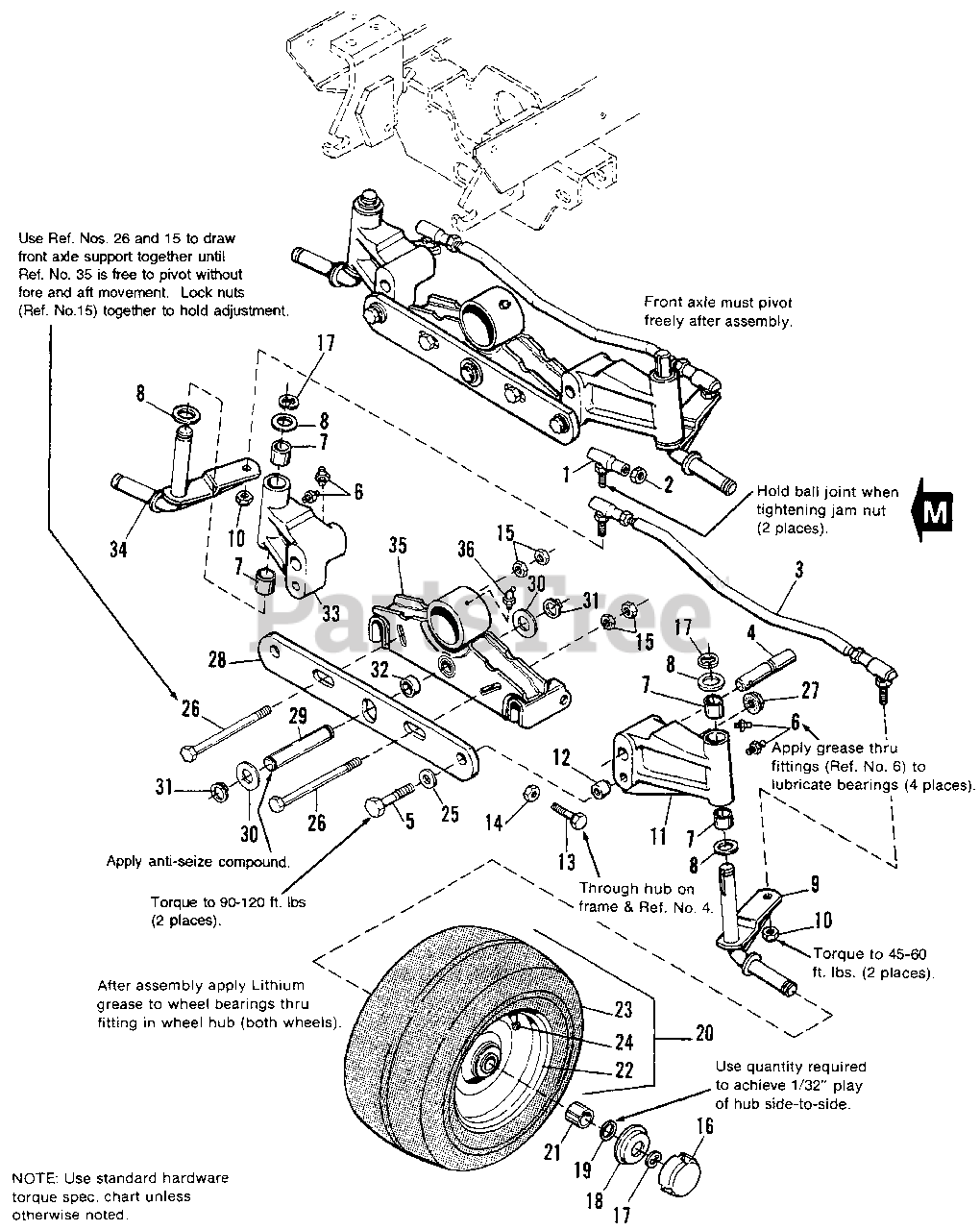

Front Axle Group - Later Models Parts Diagram

  • Title

1

Simplicity 1677206SM

BALL JOINT ASSY.

$71.99

$

In Stock, Qty 5

0

2

Simplicity 1919262SM

NUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 15

0

3

Simplicity 1659726SM

TIE ROD ASSY. (Incl. Ref. No. 1 & 2)

$192.99

$

Usually ships in 2-12 days

0

4

Simplicity 1677464SM

PIN, Axle Pivot

$42.99

$

Usually ships in 2-12 days

0

5

Simplicity 1685377SM

CAPSCREW, Special Hi Strength, 1/2-13 x 2-3/4

$34.99

$

Usually ships in 2-12 days

0

6

Simplicity 2812808SM

FITTING, Lube, 1/4-28

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 2168103SM

BUSHING, Spindle

$45.99

$

In Stock, only 3 left!

0

8

Simplicity 1919394SM

WASHER, 1-1/32 x 1-5/8 x 1/16
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1685319SM

SPINDLE ASSY., L.H.

$

$

Not available

10

Simplicity 1930245SM

NUT, Hex, Centerlock, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

11

Simplicity 1685430SM

AXLE PIVOT ASSY., L.H. (Incl. Ref. Nos. 6 & 7)

$

$

Not available

12

Simplicity 1677262SM

SPACER, Axle Link

$23.99

$

Usually ships in 2-12 days

0

13

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4, Gr. 5
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

14

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1916950SM

Nut, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 11

0

16

Simplicity 1676519SM

CAP, Hub

$11.99

$

In Stock, Qty 20+

0

17

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1676520SM

RETAINER, Hub Cap

$14.99

$

In Stock, Qty 9

0

19

Simplicity 2172586SM

WASHER, Shim, 1" I.D. x 1-5/8" O.D. x 1/32" (Use as Required-Qty.)

$9.49

$

In Stock, only 4 left!

0

20

Simplicity 1669512

FRONT WHEEL & TIRE ASSY., 16 x 6.50-8 (Incl. Ref. Nos. 22. 23 & 24)

$

$

Not available

21

Simplicity 1685404SM

BEARING
(Superseded to 1704867SM)

$53.99

$

Usually ships in 2-12 days

0

22

Simplicity 1669851SM

WHEEL ASSY., w/Bearings (Incl. Ref. No. 21)

$

$

Not available

23

Simplicity 1713528SM

TIRE, 16 x 6.50-8

$

$

Not available

24

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

25

Simplicity 1676435SM

WASHER, Heat Treated

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 1922648SM

CAPSCREW, Hex Hd., 3/8-16 x 4
(Superseded to 703875)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960362SM

NUT, Hex, Flange Lock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1703215SM

LINK, Axle

$

$

Not available

29

Simplicity 1703324SM

SHAFT

$65.99

$

Usually ships in 2-12 days

0

30

Simplicity 1911386SM

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 2827732SM

RING, Retaining, 3/4
(Superseded to 703979)

$4.99

$

In Stock, Qty 8

0

32

Simplicity 1703322SM

SPACER

$28.99

$

Usually ships in 2-12 days

0

33

Simplicity 1685429SM

AXLE PIVOT ASSY., R.H. (Incl. Ref. Nos. 6 & 7)

$

$

Not available

34

Simplicity 1703754ASM

SPINDLE ASSY., R.H.

$

$

Not available

35

Simplicity 1702603SM

HITCH SUPPORT ASSY.

$

$

Not available

36

Simplicity 1679811SM

FITTING, Lube, 45, 1/4", Drive Type

$9.49

$

Usually ships in 2-12 days

0
