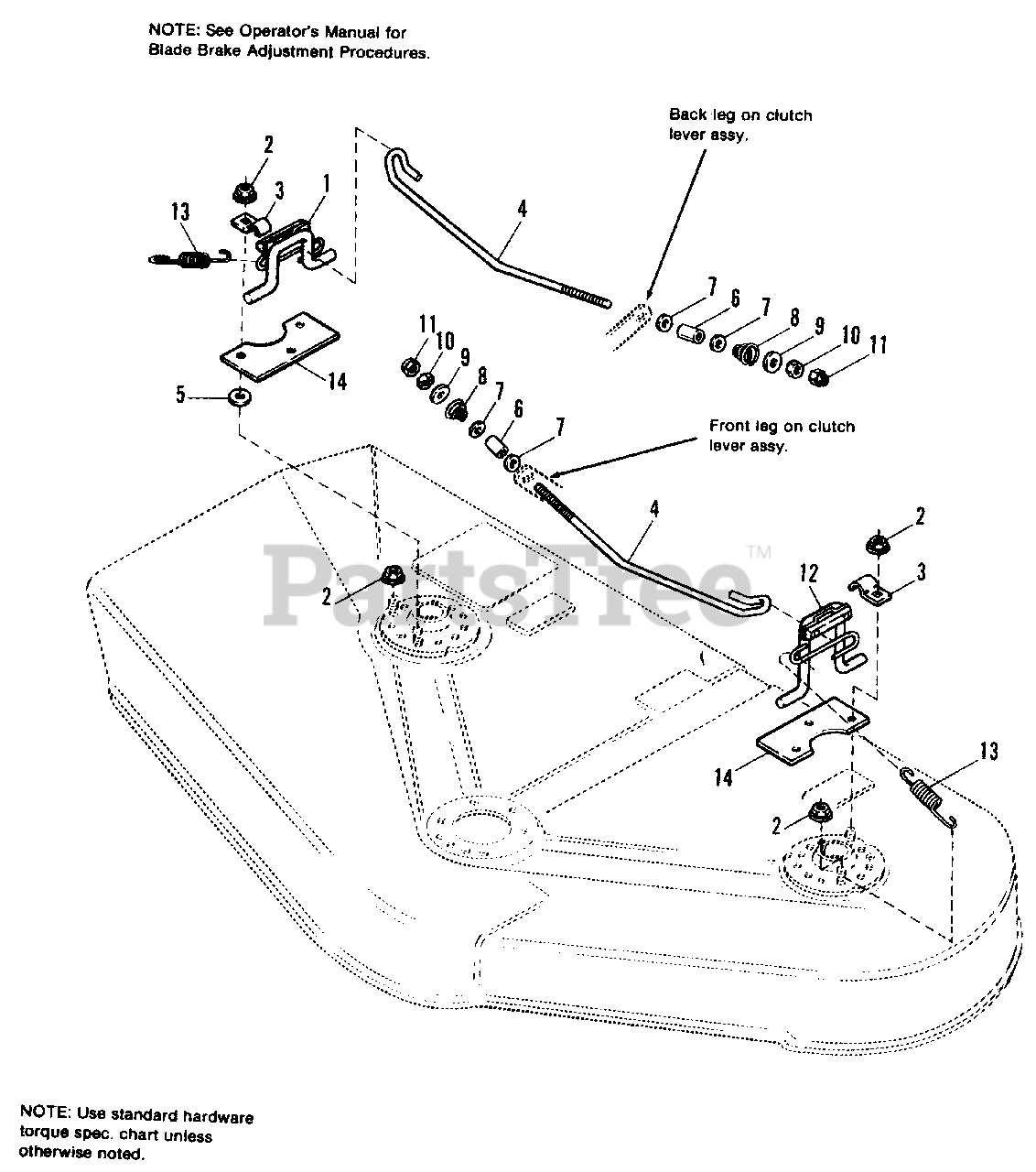

1691423 - Simplicity 42" Mower Deck 42" & 48" Brake Group Parts Diagram

42" Mower Deck

42" & 48" Brake Group Parts Diagram

  • Title

1

Simplicity 1701764SM

ROD ASSY., Brake, R.H. w/Pad

$121.99

$

Usually ships in 2-12 days

0

2

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1664004SM

CLIP

$6.49

$

Usually ships in 2-12 days

0

4

Simplicity 1701866SM

ROD, Brake, 42"

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 1701867SM

ROD, Brake, 48"

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 1922755SM

WASHER, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

6

Simplicity 1664857SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

8

Simplicity 1676253SM

SPRING

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 1919381SM

WASHER, 11/32 x 1
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

10

Simplicity 1916622SM

NUT, Hex Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

11

Simplicity 1920397SM

NUT, Hex Lock, Esna Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1701765SM

ROD ASSY., Brake, L.H. w/Pad

$125.99

$

Usually ships in 2-12 days

0

13

Simplicity 1702246SM

SPRING, Extension

$19.99

$

Usually ships in 2-12 days

0

14

Simplicity 1701747

BRACKET

$

$

Not available
