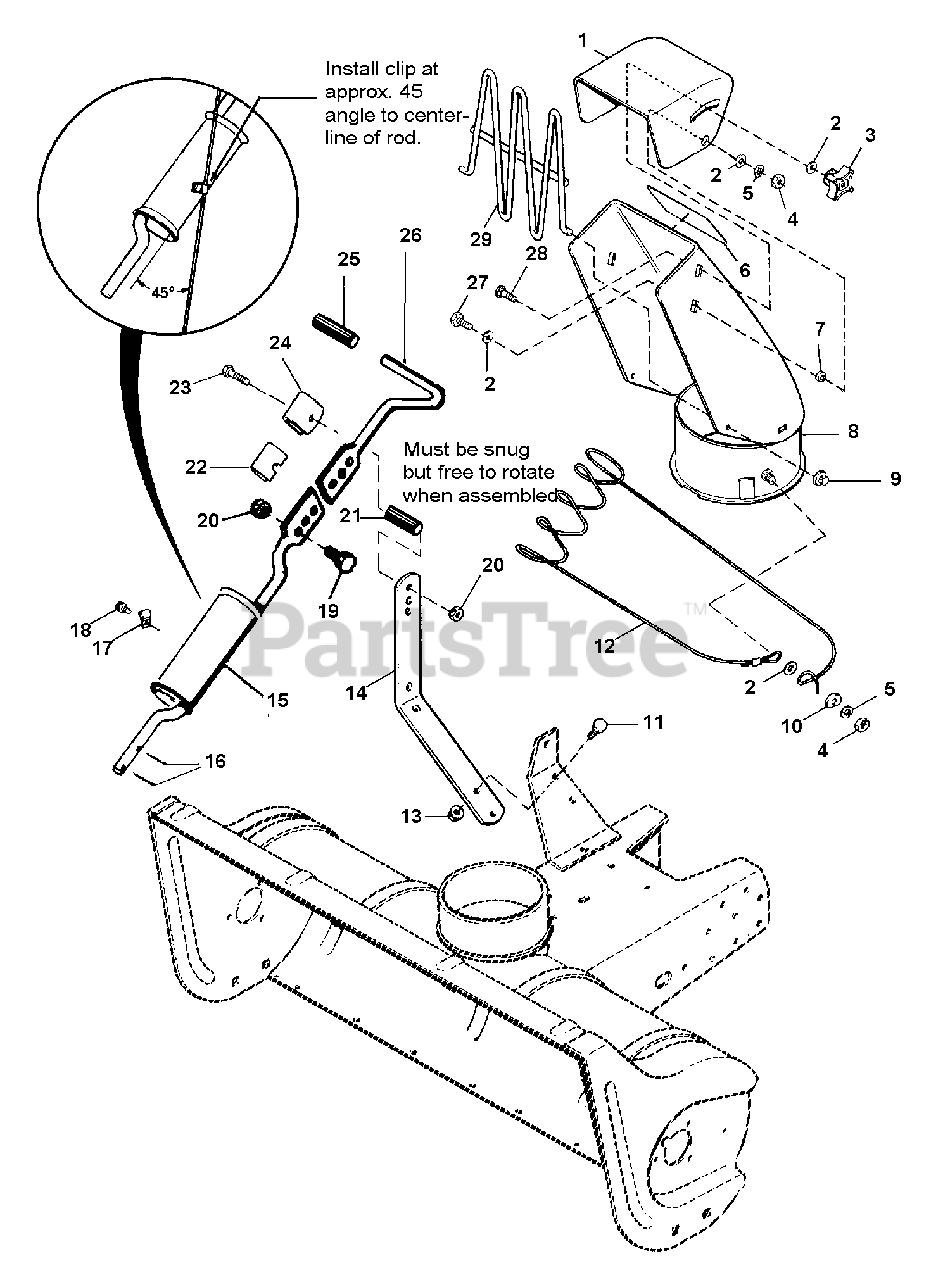

1691522 - Simplicity 42" Snow Thrower Attachment Spout Group Parts Diagram

42" Snow Thrower Attachment

Spout Group Parts Diagram

  • Title

1

Simplicity 1667791A

DEFLECTOR
(Superseded to 1667791ASM)

$

$

Not available

2

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1670578SM

KNOB

$14.99

$

In Stock, only 4 left!

0

6

Simplicity 1722674SM

DECAL, Blower Housing

$15.99

$

Usually ships in 2-12 days

0

8

Simplicity 1733906ASM

CHUTE ASSEMBLY

$376.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960126SM

PUSH NUT, 1/4
(Superseded to 704066)

$5.49

$

In Stock, Qty 10

0

10

Simplicity 2171379SM

WASHER, Cup

$

$

Not available

11

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 2171362SM

CABLE ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

13

Simplicity 1930645SM

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Simplicity 1707522A

ARM, Support

$

$

Not available

15

Simplicity 1713417ASM

ROD ASSEMBLY, Spout

$

$

Not available

16

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$4.49

$

In Stock, Qty 8

0

17

Simplicity 2171382SM

CLAMP

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 1929000SM

SCREW, Hex, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 7

0

20

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1713447SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

22

Simplicity 2121175SM

LINER

$8.49

$

Usually ships in 2-12 days

0

23

Simplicity 1925690SM

CAPSCREW, Hex Head, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 2152050SM

GUIDE, Rod

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 2176933SM

GRIP, Handle

$3.49

$

In Stock, only 1 left!

0

26

Simplicity 1713483ASM

HANDLE, Spout Control

$120.99

$

Usually ships in 2-12 days

0

28

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 19

0

29

Simplicity 1704446SM

GUARD ASSEMBLY, Chute

$23.99

$

Usually ships in 2-12 days

0
