1691525 - Simplicity Cart Collector

Cart Collector

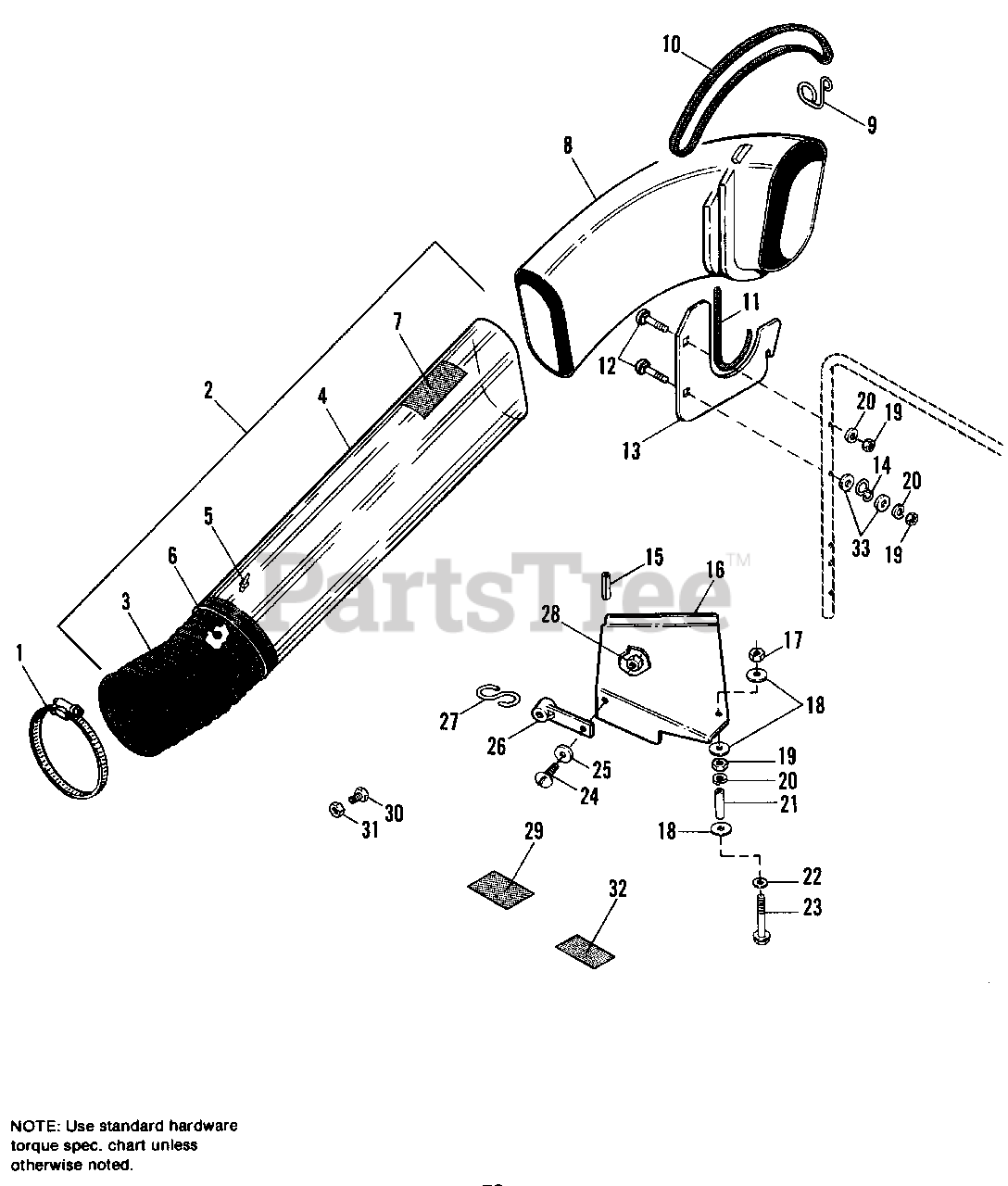

1691525 - Simplicity Cart Collector > Parts Diagrams (3) > Cart Collector - Tube & Support Group

  • Title
1679896SM

1

CLAMP, "6"

Part# 1679896SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $9.06

1685364SM

2

TUBE ASSY., 38" (Incl. Ref. Nos. 3 - 7)

Part# 1685364SM

OEM Warranty Repair Part for Simplicity

Not available

1679895SM

3

HOSE, Exhaust

Part# 1679895SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $114.93

1679175SM

4

TUBE

Part# 1679175SM

OEM Warranty Repair Part for Simplicity

Not available

1673320SM

5

RIVET, Pop

Part# 1673320SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.96

2810531

6

WASHER, Rivet

Part# 2810531

OEM Warranty Repair Part for Simplicity

Not available

1675766SM

7

DECAL, Cleaning Instructions

Part# 1675766SM

OEM Warranty Repair Part for Simplicity

Not available

1669793SM

8

ELBOW, Tube to Catcher

Part# 1669793SM

OEM Warranty Repair Part for Simplicity

Not available

1672688SM

9

HOOK, Strap

Part# 1672688SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $15.93

1665872SM

10

STRAP, Rubber

Part# 1665872SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $7.88

1673874SM

11

TRIM

Part# 1673874SM

OEM Warranty Repair Part for Simplicity

Not available

1931338SM

12

CARRIAGE BOLT, 5/16-18 x 1-3/4

Part# 1931338SM (Superseded to 703175)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

1672335

13

BRACKET, Saddle

Part# 1672335

OEM Warranty Repair Part for Simplicity

Not available

1672689SM

14

"S" HOOK

Part# 1672689SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $21.75

1679165

15

MOULDING

Part# 1679165

OEM Warranty Repair Part for Simplicity

Not available

1704960SM

16

COVER ASSY., Arbor

Part# 1704960SM

OEM Warranty Repair Part for Simplicity

Not available

1923362SM

17

NUT, Hex, Centerlock, 5/16-18

Part# 1923362SM (Superseded to 703164)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1920283SM

18

WASHER, 5/16

Part# 1920283SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.13

1917372SM

19

NUT, Hex, Full, 5/16-18

Part# 1917372SM (Superseded to 7091511SM)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1917356SM

20

LOCKWASHER, 5/16

Part# 1917356SM (Superseded to 703116)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1679085SM

21

SPACER

Part# 1679085SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $30.91

1919381SM

22

WASHER, Plain, 5/16

Part# 1919381SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.96

1960272SM

23

CAPSCREW, Hex Hd., 5/16-18 x 5-1/2

Part# 1960272SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $10.96

1930531SM

24

SCREW, Truss Hd., #10-32 x 1/2

Part# 1930531SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

1960096SM

25

WASHER, Plain

Part# 1960096SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

1679205SM

26

STRAP, Arbor Cover

Part# 1679205SM

OEM Warranty Repair Part for Simplicity

Not available

1679204SM

27

"S" HOOK

Part# 1679204SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.29

1930627SM

28

NUT, Hex, Centerlock, #10-32

Part# 1930627SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.29

1676923SM

29

DECAL, Warning, Cover

Part# 1676923SM

OEM Warranty Repair Part for Simplicity

Not available

1921965SM

30

CAPSCREW, Hex Hd., 3/8-16 x 3/4

Part# 1921965SM (Superseded to 703237)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.13

1930645SM

31

NUT, Hex, Full Lock, 3/8-16

Part# 1930645SM (Superseded to 703893)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $4.70

1700346

32

DECAL, Warning

Part# 1700346

OEM Warranty Repair Part for Simplicity

Not available

1919326SM

33

WASHER, Plain, 5/16

Part# 1919326SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74
