1691530 - Simplicity Horn Kit Horn Kit Parts Diagram

Horn Kit

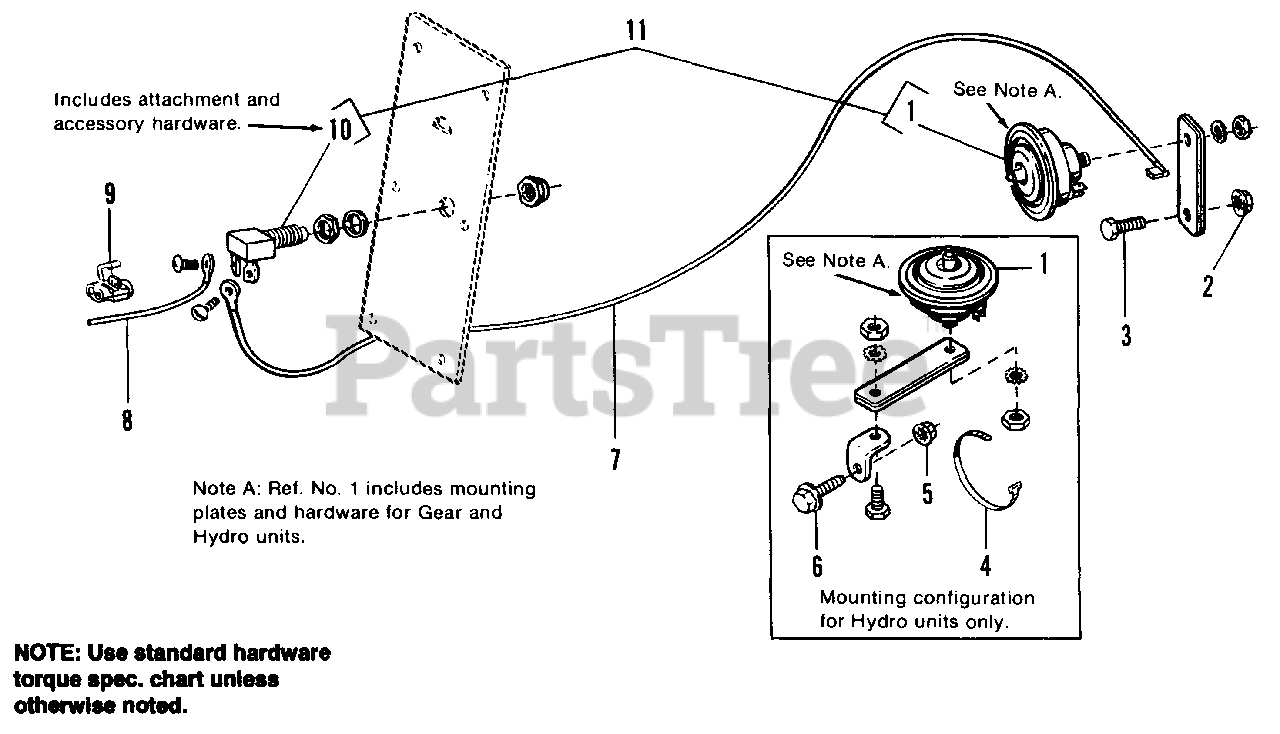

Horn Kit Parts Diagram

  • Title

1

Simplicity 1679968

HORN ASSY. (Included in Ref. No. 11)

$

$

Not available

2

Simplicity 1930641SM

NUT, Flange Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1921959SM

CAPSCREW, Hex, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 2832747SM

TIE, Cable

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1931277SM

NUT, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Simplicity 1960373SM

CAPSCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1700095

WIRE ASSY. (Black)

$

$

Not available

8

Simplicity 1700094

WIRE ASSY. (Red)

$

$

Not available

9

Simplicity 1605751SM

CONNECTOR, Wire, Self-Stripping

$

$

Not available

10

Simplicity 1679969

HORN BUTTON ASSY. (Included in Ref. No. 11)

$

$

Not available

11

Simplicity 1700643

HORN & BUTTON ASSY. (Incl. Ref. Nos. 1 & 10)

$

$

Not available
