1691531 - Simplicity Electric Lift Kit Electric Lift Kit Parts Diagram

Electric Lift Kit

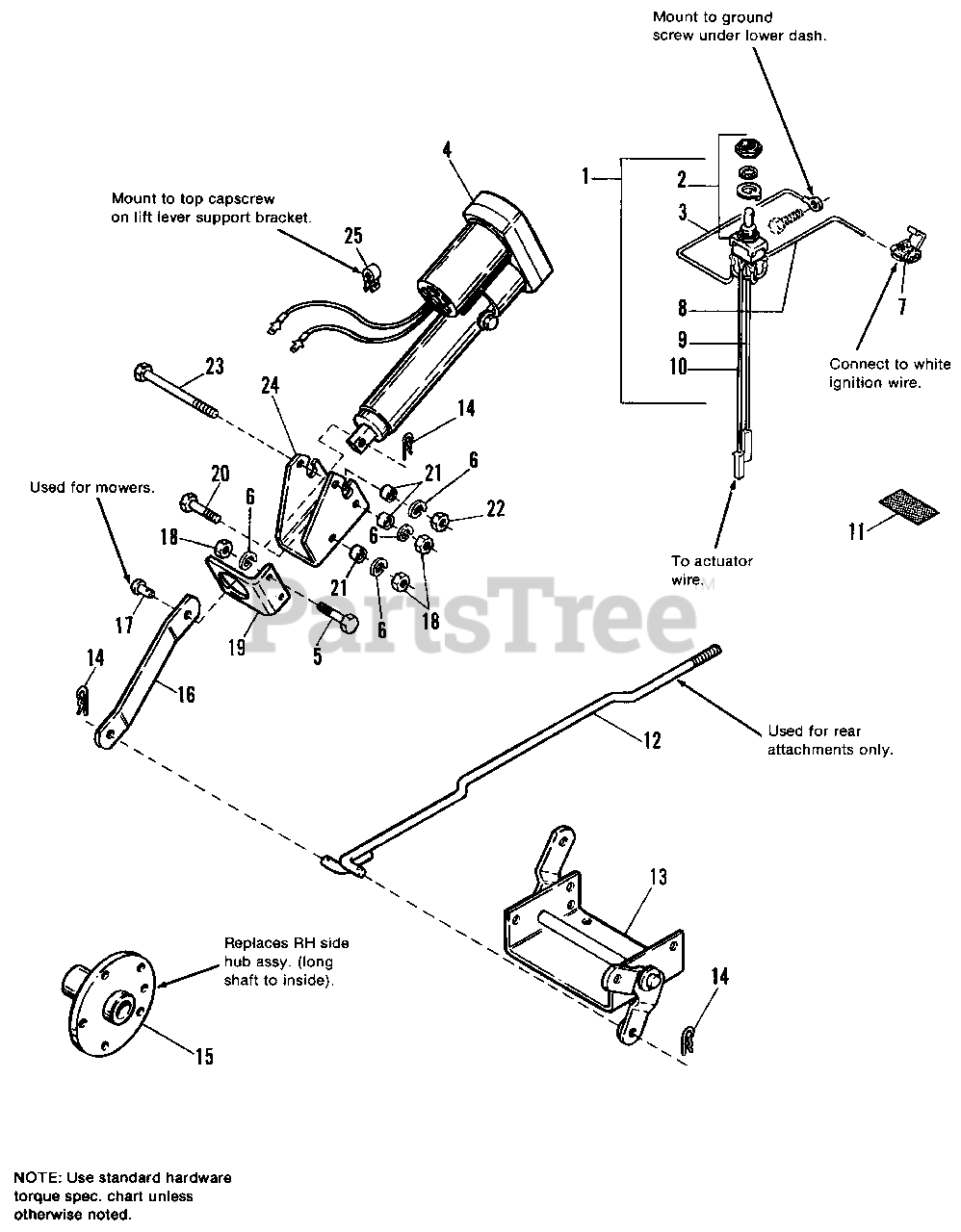

Electric Lift Kit Parts Diagram

  • Title

1

Simplicity 1702082

HARNESS ASSY., Electric Lift

$

$

Not available

2

Simplicity 2171683SM

SWITCH, Electric

$106.99

$

Usually ships in 2-12 days

0

3

Simplicity 171689

WIRE, Switch to Ground

$

$

Not available

4

Simplicity 1667754

POWER LIFT ASSY. (See pages 66 & 67 for parts breakdown.)

$

$

Not available

5

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1605751SM

CONNECTORS, Self-Stripping

$

$

Not available

8

Simplicity 1702075

WIRE, Switch to Ignition

$

$

Not available

9

Simplicity 1702077

WIRE, Switch to Lift

$

$

Not available

10

Simplicity 1702076

WIRE, Switch to Lift

$

$

Not available

11

Simplicity 1669833

DECAL, Lift Swtich

$

$

Not available

12

Simplicity 1701880

ROD ASSY., Lift

$

$

Not available

13

Simplicity 1701908

ROD ASSY., Lift

$

$

Not available

14

Simplicity 1960033SM

PIN, Quick

$3.49

$

In Stock, only 3 left!

0

15

Simplicity 1701914

HUB ASSY.,Wheel

$

$

Not available

16

Simplicity 1701881

LINK, Actuator

$

$

Not available

17

Simplicity 2102004SM

PIN, Pivot

$9.49

$

In Stock, only 3 left!

0

18

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1701878

BRACKET, Actuator, Front

$

$

Not available

20

Simplicity 1921677SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1665699SM

SPACER

$7.49

$

In Stock, only 2 left!

0

22

Simplicity 1923362SM

NUT, Hex, Lock 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 11

0

23

Simplicity 1925692SM

CAPSCREW, Hex, Hd., 5/16-18 x 4-1/2

$5.99

$

Usually ships in 2-12 days

0

24

Simplicity 1701877SM

BRACKET, Actuator

$

$

Not available

25

Simplicity 1708008SM

CLAMP, Insulated

$4.49

$

Usually ships in 2-12 days

0
