1691724 - Simplicity 12 Volt Starter 12 Volt Starter Parts Diagram

12 Volt Starter

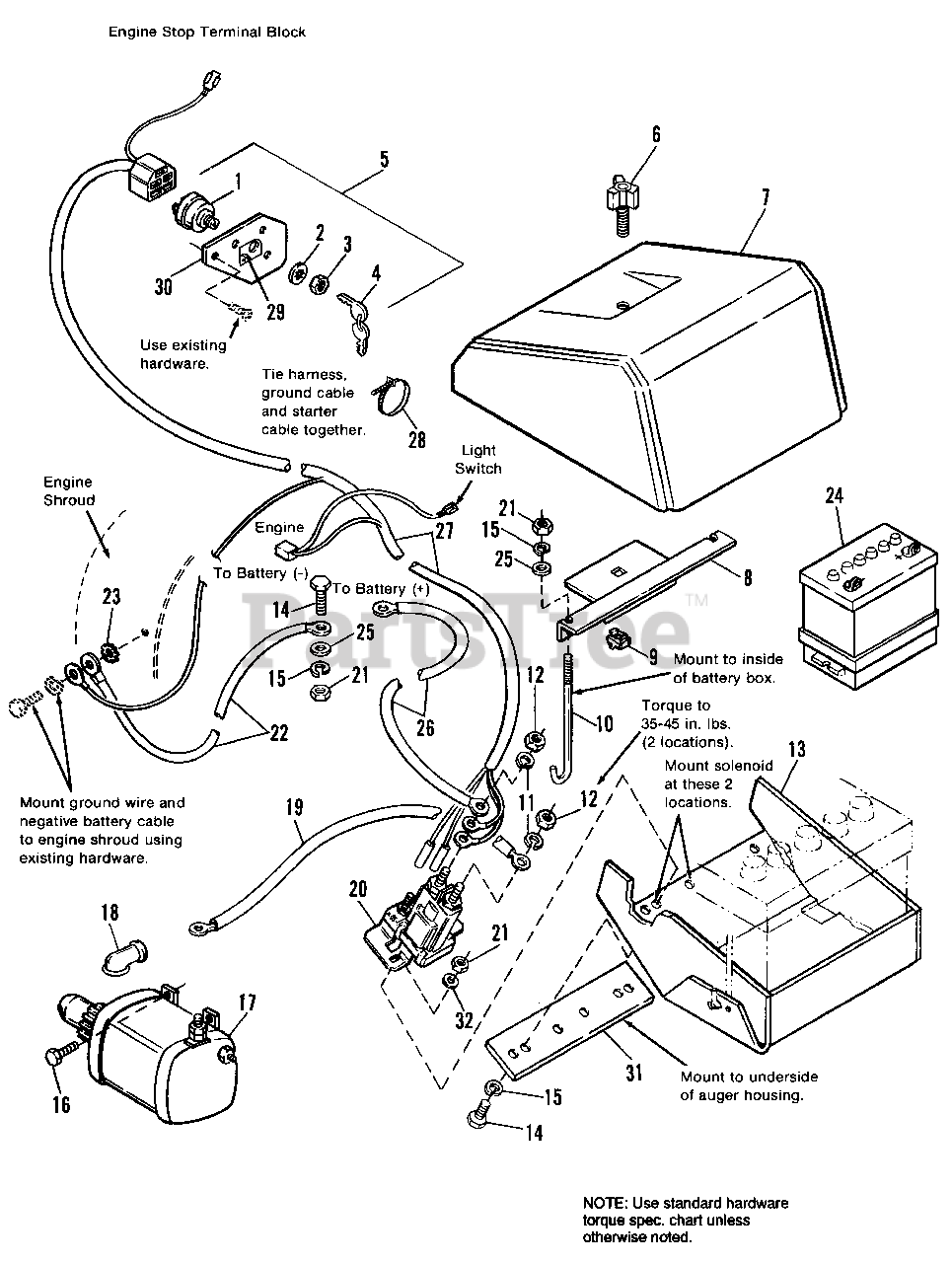

12 Volt Starter Parts Diagram

  • Title

1

SWITCH (See Ref. No. 5)

$

$

Not available

2

Simplicity 2818906

LOCKWASHER, Int. Tooth, 5/8 (Zinc Pltd.)

$

$

Not available

3

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1717163SM

KEY, Set of Two

$8.99

$

In Stock, Qty 15

0

5

Simplicity 2178280SM

SWITCH, Key (Incl. Ref. Nos. 1, 2, 3 & 4)
(Superseded to 421064MA)

$32.99

$

In Stock, only 1 left!

0

6

Simplicity 1668777SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 1668756

COVER

$

$

Not available

8

Simplicity 1668795SM

HOLDDOWN ASSY., Battery

$26.99

$

Usually ships in 2-12 days

0

9

Simplicity 2830659

NUT, Cage, Tinnerman, 5/16-18

$

$

Not available

10

Simplicity 1668820SM

J-HOOK

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, 5/16 (Zinc Pltd.)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 2820263SM

NUT, Hex, Full, 5/16-24 (Zinc Pltd.)
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1668731SM

SUPPORT ASSY., Battery

$

$

Not available

14

Simplicity 2823341SM

CAPSCREW, Hex, 1/4-20 x 3/4 (Zinc Pltd.)
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

15

Simplicity 2816964SM

LOCKWASHER, 1/4 (Zinc Pltd.)
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

16

SCREW

$

$

Not available

17

MOTOR, Starter (not serviced)

$

$

Not available

18

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, only 3 left!

0

19

Simplicity 1668819SM

WIRE, Solenoid to Starter, 25"

$16.99

$

Usually ships in 2-12 days

0

20

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 8

0

21

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20 (Zinc Pltd.)
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

22

Simplicity 1707056SM

WIRE, Battery to Solenoid, 15"

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 2820426SM

LOCKWASHER, Ext. Tooth 5/16 (Zinc Pltd.)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1685215SM

BATTERY, (Not included with kit)

$

$

Not available

25

Simplicity 2817377

WASHER, Flat, 1/4

$

$

Not available

26

Simplicity 1701522SM

CABLE, Battery to Ground, 38"

$

$

Not available

27

Simplicity 1612065

HARNESS, Wiring

$

$

Not available

28

Simplicity 2832747SM

TIE, Wrap

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 1668905

DECAL, Key Switch

$

$

Not available

30

Simplicity 1668743

BRACKET, Key Switch

$

$

Not available

31

Simplicity 1671022

PLATE, Reinforcement

$

$

Not available

32

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0
