1691735 - Simplicity 38" Tiller Attachment 38" Tiller - Hitch & Lift Group Parts Diagram

38" Tiller Attachment

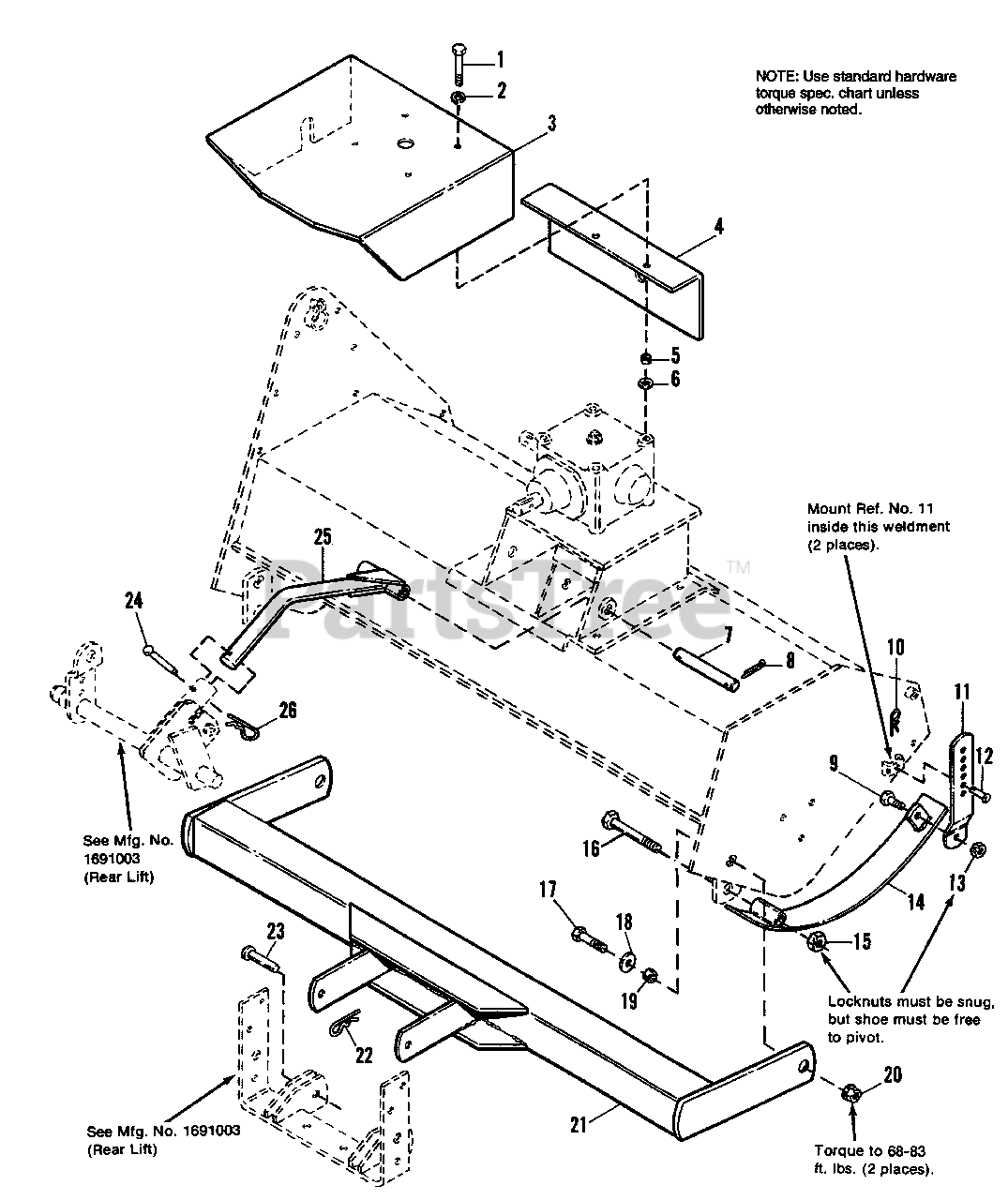

38" Tiller - Hitch & Lift Group Parts Diagram

  • Title

1

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 16

0

2

Simplicity 1916965SM

WASHER, Lock Spring
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

3

Simplicity 1679428A

SHIELD, Gear Box, Top

$

$

Not available

4

Simplicity 1679427A

SHIELD, Gear Box, Back

$

$

Not available

5

Simplicity 1701787SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

6

Simplicity 2831942

NUT, Push Pal, 1-3/8

$

$

Not available

7

Simplicity 1678547

PIN, Pivot

$

$

Not available

8

Simplicity 1919314SM

PIN, Cotter

$3.49

$

In Stock, Qty 7

0

9

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

10

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

11

Simplicity 2172879A

BRACKET, Adjusting

$

$

Not available

12

Simplicity 1923087SM

PIN, Yoke, 3/8

$9.49

$

In Stock, only 2 left!

0

13

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Simplicity 2172875A

SKID ASSY.

$

$

Not available

15

Simplicity 1923353SM

LOCKNUT, Hex, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

16

Simplicity 1960289SM

CAPSCREW, Hex Hd., 5/8-11 x 3

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 1926192SM

WASHER, Plain, 1/2 x 1-1/4

$19.99

$

Usually ships in 2-12 days

0

19

Simplicity 2105386SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

20

Simplicity 1930644SM

NUT, Lock Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

21

Simplicity 1678842A

HITCH ASSY., 38" Tiller

$

$

Not available

22

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, Qty 7

0

23

Simplicity 1960116SM

PIN, Yoke
(Superseded to 5025479YP)

$3.99

$

In Stock, Qty 16

0

24

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

25

Simplicity 1678844

LIFT BAR ASSY.

Note: (1690989)

$

$

Not available

25

Simplicity 1703598A

LIFT BAR ASSY.

Note: (1691735)

$

$

Not available

26

Simplicity 1960074SM

CLIP, Hair Pin, 3/32 x 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0
