1691735 - Simplicity 38" Tiller Attachment Peerless Gear Box Parts Diagram

38" Tiller Attachment

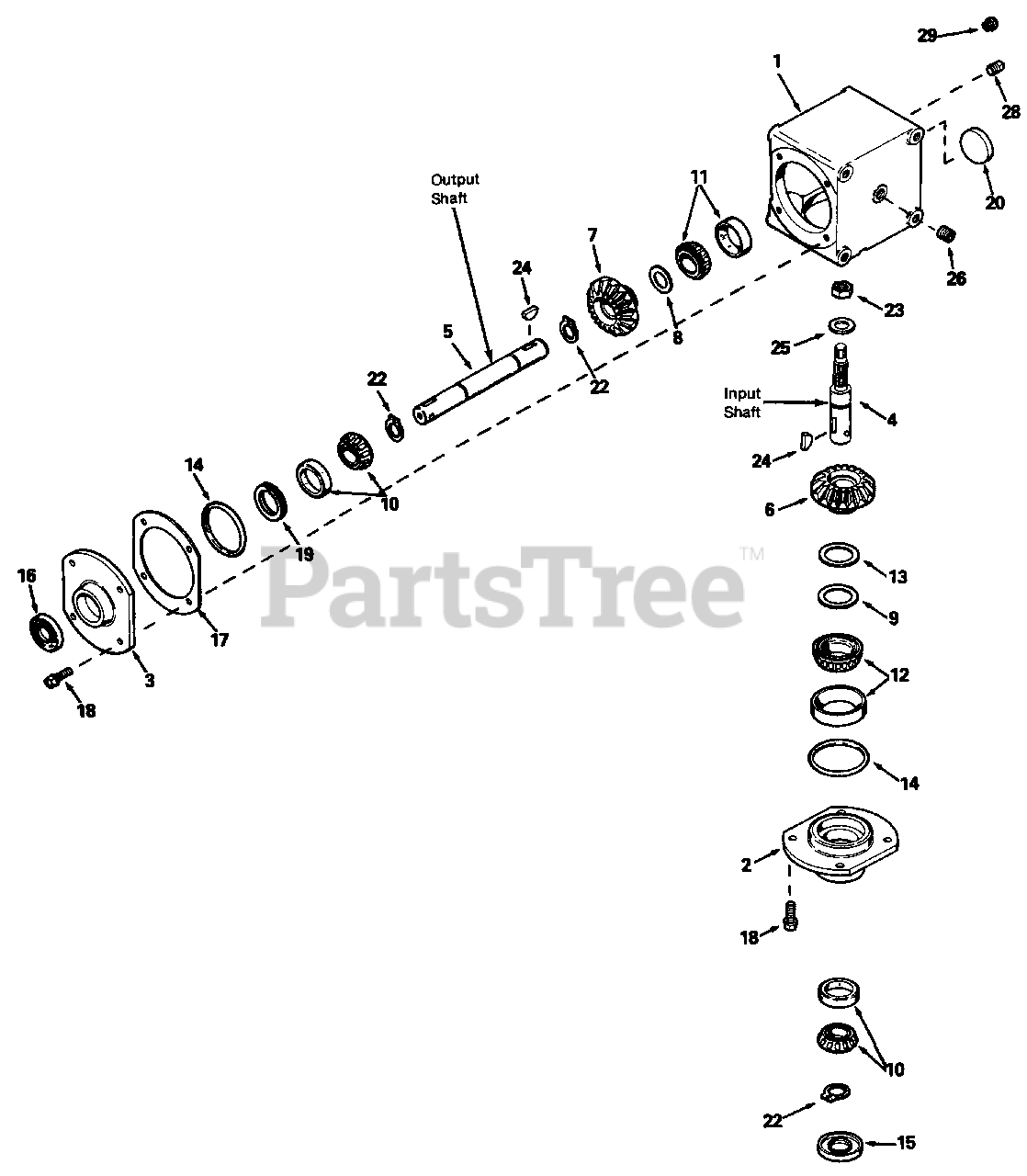

Peerless Gear Box Parts Diagram

  • Title

1

Simplicity 770076

HOUSING, Right Angle Drive

$69.99

$

Usually ships in 2-12 days

0

2

Simplicity 786125

CAP, Retainer

$

$

Not available

3

Simplicity 786105

CAP, Retainer

$

$

Not available

4

Simplicity 776268

SHAFT, Input

$

$

Not available

5

Simplicity 776222

SHAFT, Output

$

$

Not available

6

Simplicity 778233

GEAR, Bevel

Note: (14 teeth)

$

$

Not available

7

Simplicity 778232

GEAR, Bevel

Note: (28 teeth)

$

$

Not available

8

Simplicity 780131

SHIM (1-1/2" O.D. x 1-1/64" I.D. x .002 thick)

Note: (Use as required)

$

$

Not available

9

Simplicity 780147

SHIM (1-3/4" O.D. x 1.265" I.D. x .002 thick)

Note: (Use as required)

$1.99

$

Usually ships in 2-12 days

0

10

Simplicity 780132

BEARING & CUP ASSY.

Note: (This assembly may have a shim washer included. The shim washer is not required at this location.)

$

$

Not available

11

Simplicity 780132

* BEARING & CUP ASSY.

$

$

Not available

12

Simplicity 780148

BEARING & CUP ASSY.

Note: (This is a factory sized assembly and may or may not include Ref. No. 9 Shim Washer. lf Ref. No. 9 Shim Washer is included, it must be used in this location. All old shim washers must be discarded.

$

$

Not available

13

Simplicity 780101

RACE, Thrust

$

$

Not available

14

Simplicity 788063

"O" Ring

$

$

Not available

15

Simplicity 788064

SEAL, Oil

$

$

Not available

16

Simplicity 788065

SEAL, Oil

$

$

Not available

17

Simplicity 780136

SHIM, Cap Retainer

$

$

Not available

18

Simplicity 792037

SCREW, Hex Hd. Sems, 5/16-18 x 1

$

$

Not available

19

Simplicity 780137

RING, Load

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 792111

PLUG

$

$

Not available

22

Simplicity 792113

RING, Retaining

$

$

Not available

23

Simplicity 792126

JAM NUT, 1/2-20, Hex

$

$

Not available

24

Simplicity 792114

KEY, Woodruff

$

$

Not available

25

Simplicity 792127

WASHER, Flat

$

$

Not available

26

Simplicity 792116

PLUG, Pipe, 1/4-18

$

$

Not available

28

Simplicity 792039

PLUG, Pipe, 1/8"

$

$

Not available

29

Simplicity 792118

VALVE, Relief
(Superseded to 594539)

$90.99

$

Usually ships in 2-12 days

0
