1691780 - Simplicity Soft Cab Snow Cab Group (1159I01) Parts Diagram

Soft Cab

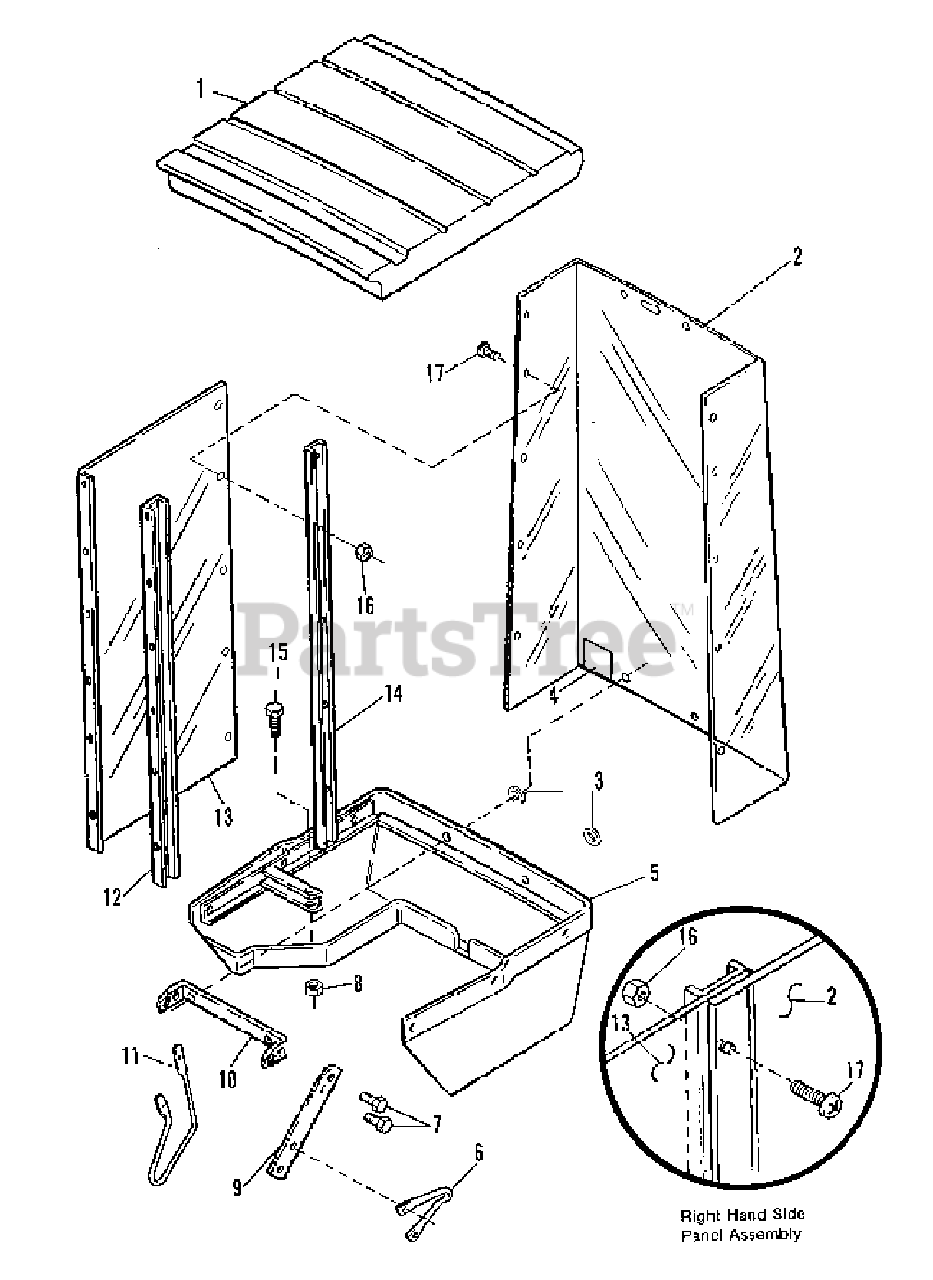

Snow Cab Group (1159I01) Parts Diagram

  • Title

1

Simplicity 1668887

COVER, Top

$

$

Not available

2

Simplicity 1668886

PANEL, Front

$

$

Not available

3

Simplicity 1921319SM

WASHER, Flat, 9/32
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

4

Simplicity 1689127

DECAL, Cleaning Instructions

$

$

Not available

5

Simplicity 1668869

SHROUD, Lower

$

$

Not available

6

Simplicity 1669090

GUIDE, Rope

$

$

Not available

7

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

8

Simplicity 1919438SM

LOCKNUT, Nylon, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 8

0

9

Simplicity 1668851

SUPPORT, Side

$

$

Not available

10

Simplicity 1668852

SUPPORT, Front

$

$

Not available

11

Simplicity 1669150

ROD, Skid

$

$

Not available

12

Simplicity 1611730

CHANNEL, Side

$

$

Not available

13

Simplicity 1668884SM

PANEL, Side

$

$

Not available

14

Simplicity 1611731

SUPPORT ASSEMBLY, L.H.

$

$

Not available

14

Simplicity 1611732

SUPPORT ASSEMBLY, R.H. (Not Shown)

$

$

Not available

15

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

16

Simplicity 1920397SM

LOCKNUT, Nylon, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1935945SM

SCREW, Phil. Truss Head, 1/4-20 x 3/4

$3.49

$

Usually ships in 2-12 days

0
