1691789 - Simplicity Clean Sweep Twin Grass Catcher for 30" Mower Adapter, Blade & Tube Group Parts Diagram

Clean Sweep Twin Grass Catcher for 30" Mower

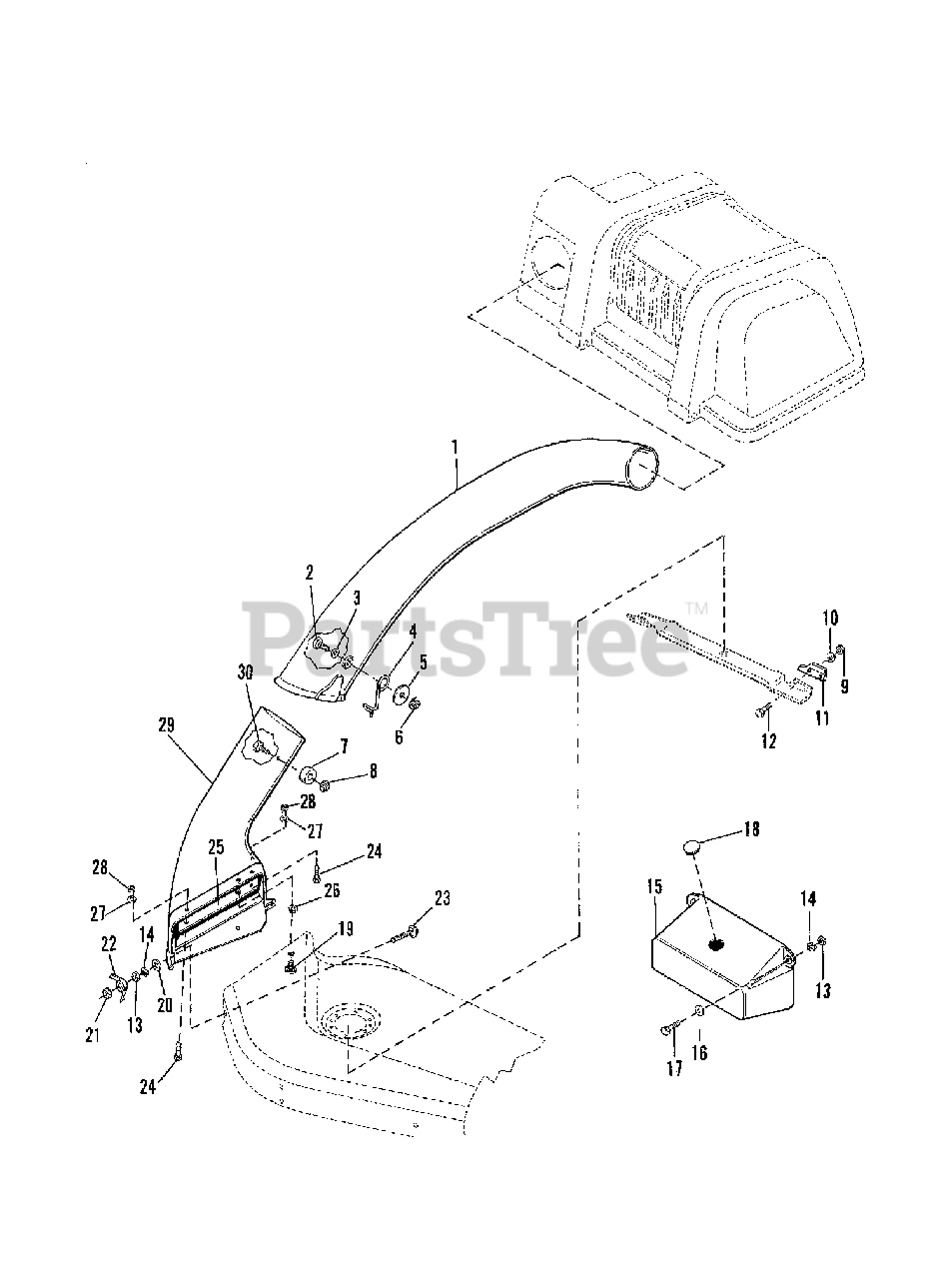

Adapter, Blade & Tube Group Parts Diagram

  • Title

1

Simplicity 1703769SM

TRANSFER TUBE

$301.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960122SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 18

0

4

Simplicity 1704603SM

LATCH, Tube

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 1960185SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1935048SM

NUT, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1704341SM

WASHER, Flat

$42.99

$

Usually ships in 2-12 days

0

8

Simplicity 1919438SM

NUT, Esna, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

9

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

10

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 1665419ASM

LIFT PLATE

$24.99

$

Usually ships in 2-12 days

0

12

Simplicity 1935105SM

CAPSCREW, Hex Head, 1/4-20 x 5/8, Gr. 8

$6.99

$

Usually ships in 2-12 days

0

13

Simplicity 1927557SM

NUT, Hex Head,Flange, 5/16-18

$4.99

$

In Stock, Qty 5

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

COUNTERWEIGHT

$

$

Not available

16

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, Qty 14

0

17

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

18

Simplicity 1674020SM

PLUG, Hole

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 1679164ASM

CUP

$56.99

$

Usually ships in 2-12 days

0

21

Simplicity 1928698SM

NUT, Hex, Toplock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1679163SM

WING NUT ASSEMBLY, 5/16-18

$69.99

$

In Stock, only 1 left!

0

23

Simplicity 1931339SM

CARRIAGE BOLT, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 2826267SM

SCREW, Flat Head, #10-24 x 5/8

$2.99

$

Usually ships in 2-12 days

0

25

Simplicity 1704356ASM

STRAP, Reinforcement

$27.99

$

Usually ships in 2-12 days

0

26

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, Qty 11

0

27

Simplicity 1960096SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1933896SM

NUT, Hex Head, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

29

Simplicity 1704327

ADAPTER

$

$

Not available

30

Simplicity 1960371SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0
