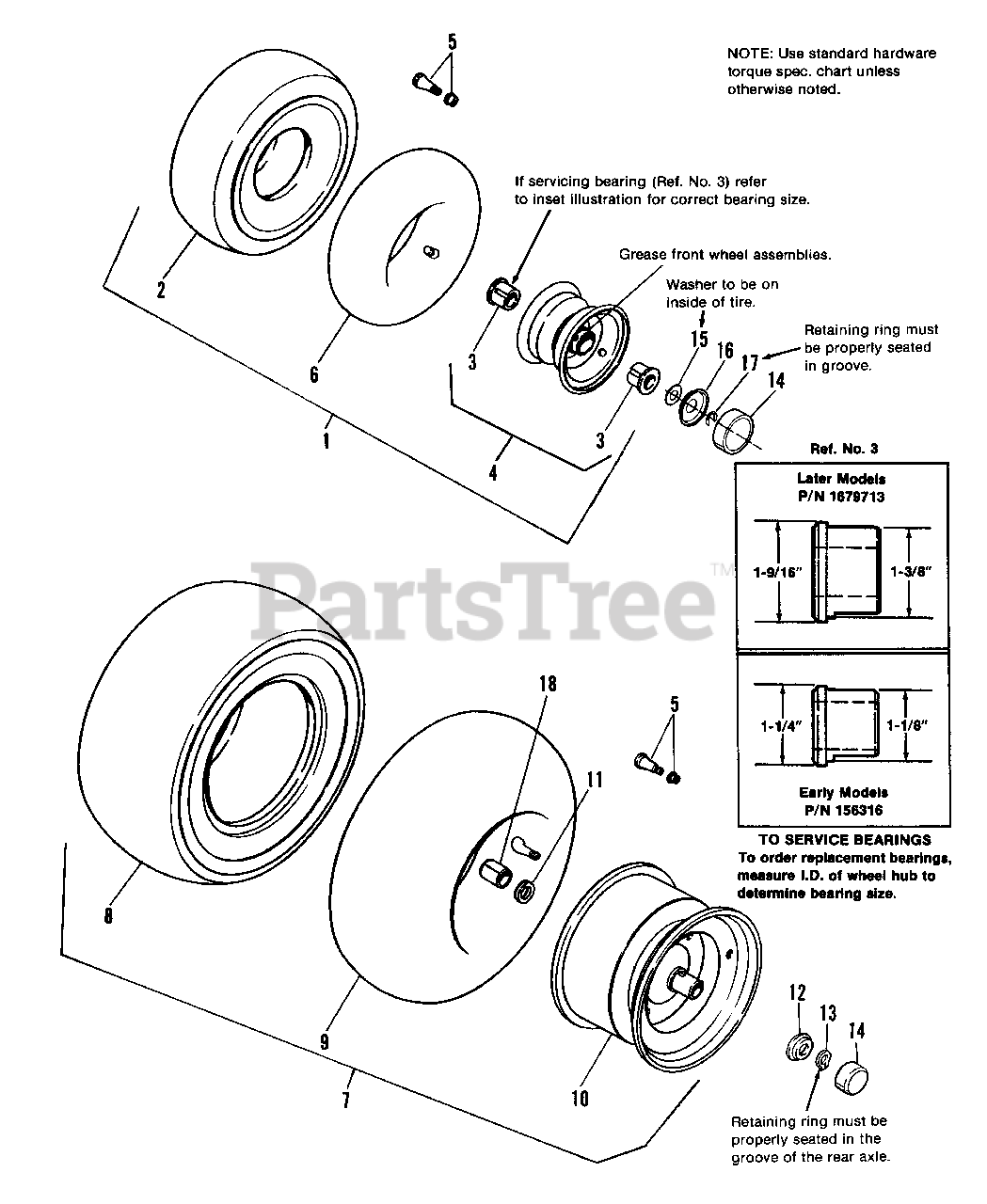

1691795 - Simplicity LTH Lawn Tractor, 12.5hp Wheels & Tires Group - Hydro Parts Diagram

LTH Lawn Tractor, 12.5hp

Wheels & Tires Group - Hydro Parts Diagram

  • Title

1

Simplicity 1709856SM

WHEEL & TIRE ASSY. (15 x 6.00-6) (Incl. Ref. Nos. 2, 3, 4, & 5)

$

$

Not available

2

Simplicity 1713166SM

TIRE (15 x 6.00-6)

$113.99

$

Usually ships in 2-12 days

0

3

Simplicity 1713167SM

BEARING, 1-9/16" Outside O.D., 1-3/8" Inside O.D. (To be used with Later Model Wheel Assembly.)
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

Simplicity 2156316SM

BEARING, 1-1/4" Outside O.D., 1-1/8" Inside O.D. (To be used with Early Model Wheel Assembly.)

$11.99

$

In Stock, Qty 14

0

4

Simplicity 1715032

WHEEL ASSY. Later Models, Incl. Ref. No. 3, P/N 1679713.
(Superseded to 1726301SM)

$85.99

$

In Stock, Qty 10

0

5

Simplicity 2172353SM

VALVE STEM & CAP (Qty. 2 used on Mfg. No. 1691807)
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1664090SM

* TUBE (4.10/3.50-6)

$28.99

$

In Stock, only 2 left!

0

7

Simplicity 1673328

WHEEL & TIRE ASSY. (18 x 8.50-8) (Incl. Ref. Nos. 5, 8, 9, & 10)

Note: Used on Mfg. No. 1691795, 1691886 & 1691939 Only.

$

$

Not available

7

Simplicity 1673329

WHEEL & TIRE ASSY. (20 x 8.0-10) (Incl. Ref. Nos. 5, 8, 9, & 10)

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$

$

Not available

8

Simplicity 1713170SM

TIRE (18 x 8.50-8)

Note: Used on Mfg. No. 1691795, 1691886 & 1691939 Only.

$

$

Not available

8

Simplicity 2173456

TlRE (20 x 8.0-10)

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$

$

Not available

9

Simplicity 2173477SM

TUBE

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$90.99

$

In Stock, only 2 left!

0

10

Simplicity 1673347SM

WHEEL ASSY.

Note: Used on Mfg. No. 1691795, 1691886 & 1691939 Only.

$

$

Not available

10

Simplicity 1672235SM

WHEEL ASSY.

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$

$

Not available

11

Simplicity 2168055SM

WASHER

Note: Used on Mfg. No. 1691795, 1691886 & 1691939 Only.

$

$

Not available

11

Simplicity 960377

WASHER

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$

$

Not available

12

Simplicity 1676520SM

RETAINER, Hubcap

$14.99

$

In Stock, Qty 9

0

13

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1676519SM

HUBCAP

$11.99

$

In Stock, Qty 20+

0

15

Simplicity 1960160SM

WASHER, Special

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1701435SM

RETAINER, Hubcap

$18.99

$

In Stock, Qty 10

0

17

Simplicity 1611710SM

KLIP RING

$4.49

$

In Stock, Qty 13

0

18

Simplicity 1701873SM

SPACER (Used w/18" wheels only)

$6.99

$

In Stock, Qty 20+
